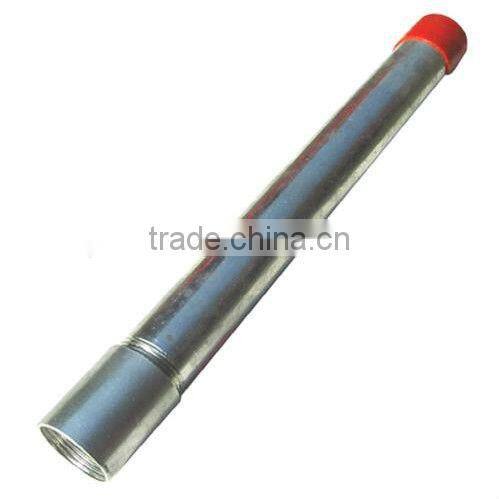

Electrical IMC UL1242 Tube
- Tianjin/Xingang
- T/T L/C D/P D/A Credit Card
You May Like
-
Intermediate Metal Conduit Price
-
Top 3 Enterprise IMC Conduit Pipe UL1242 AISI C 80.6
-
Galvanized IMC Conduit Price
-
Easily Bend Bright Surface Smooth Weld Line Clean End Inner Weld Line no More Than 0.3mm UL797 Electrical Conduit Pipe
-
Easily Bend Bright Surface Smooth Weld Line Clean End Inner Weld Line no More Than 0.3mm UL797 EMT Conduit
-
Easily Bend Bright Surface Smooth Weld Line Clean End Inner Weld Line no More Than 0.3mm UL797 EMT
Product Details
| Thickness | 1.79, 3.56 | Section Shape | Other, Round, Round | |
| Outer Diameter | 16.0 - 113.43 mm | Place of Origin | Tianjin, China | |
| Secondary Or Not | Non-secondary | Application | Structure Pipe | |
| Certification | Other, ISO CE SGS | |||
| Surface Treatment | Galvanized | Special Pipe | EMT Pipe | |
| Alloy Or Not | Non-alloy |
Product Description
Specifications
Electrical IMC UL1242 Tube1.Standard:UL1242 ANSI C 80.6
2.Length:3.05m
3.Surface:PG&HDG
4.End:NPT threaded
Electrical IMC UL1242 Tube
Details:
1.Standard:UL1242 & ANSI C80.6
2.Tade Size : from 1/2” to 4”
3.Length: 3050mm or according to customer’s requirement
4.Both ends: threaded both ends with one coupling and plastic cap
5.Usage: through the electrical wires with the purpose of protection for the electrical raceway system
6.Surface finished: Hot dip galvanized(HDG) and pre-galvanized(PG)
7.Material : carbon steel coil
8.Package: the conduits coverd with pvc paper then tied with steel straps
9.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
10.Payment Term: L/C at sight or T/T
Following is the size for your reference
U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
1/2 | 16 | 62 | 28.1 | 0.815 | 20.70 | 0.070 | 1.79 |
3/4 | 21 | 84 | 38.1 | 1.029 | 26.13 | 0.075 | 1.90 |
1 | 27 | 119 | 54.0 | 1.290 | 32.76 | 0.085 | 2.16 |
1-1/4 | 35 | 158 | 71.7 | 1.638 | 41.60 | 0.085 | 2.16 |
1-1/2 | 41 | 194 | 88.0 | 1.883 | 47.82 | 0.090 | 2.29 |
2 | 53 | 256 | 116.1 | 2.360 | 59.94 | 0.095 | 2.41 |
2-1/2 | 63 | 441 | 200.0 | 2.857 | 72.56 | 0.140 | 3.56 |
3 | 78 | 543 | 246.3 | 3.476 | 88.29 | 0.140 | 3.56 |
3-1/2 | 91 | 629 | 285.3 | 3.971 | 100.86 | 0.140 | 3.56 |
4 | 103 | 700 | 317.5 | 4.466 | 113.43 | 0.140 | 3.56 |
Applicable Tolerances:
Length: 10Ft (3.05m) ± ¼” (±6.35mm).
Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51mm)
