Specifications
Galvanized Steel IMC Pipe1.OD:1/2"-4"
2.Pre or Hot-dip Galvanized
3.End:NPT threaded with socket and cap
4.UL1242 C80.6

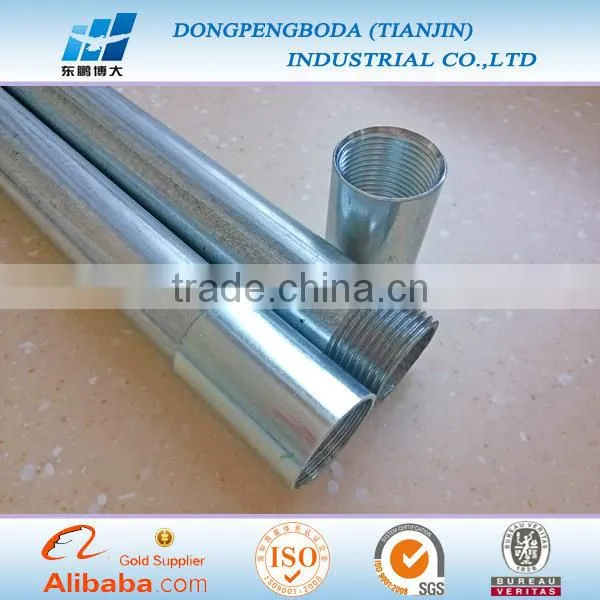

DPBD Galvanized Intermediate Metal Conduit
Size: 1/2"- 4"
Material: steel
Intermediate Metal Conduit (IMC) is manufactured in accordance with:
>American National Standards for Steel. (ANSI C80.6)
>Underwriters Laboratories Standard for Electrical Metallic Tubing.(UL 1242).
Intermediate Metal Conduit (IMC) is threaded on both ends, one end is with a steel coupling,and the other end is with a plastic cap to prot IMC conduit-UL1242 C80.6 ect the thread.
Surface: Hot-dip galvanized or Pre- galvanized
IMC (Intermediate Metal Conduit) Dimensions and Weights | ||||||||
Nominal Diamension | Outside Diameter | Wall Thickness | Length | Weight | ||||
Size | Size | |||||||
Inch | mm | Inch | mm | Inch | mm | FT | mm | KG/PC |
1/2" | 16 | 0.802 | 20.7 | 0.077 | 1.98 | 10 | 3050 | 2.78 |
3/4" | 21 | 1.012 | 26.1 | 0.081 | 2.1 | 3.79 | ||
1" | 27 | 1.271 | 32.8 | 0.091 | 2.35 | 5.38 | ||
1-1/4" | 35 | 1.612 | 41.6 | 0.094 | 2.42 | 7.13 | ||
1-1/2" | 41 | 1.853 | 47.8 | 0.098 | 2.54 | 8.65 | ||
2" | 53 | 2.322 | 59.9 | 0.103 | 2.67 | 11.49 | ||
2-1/2" | 63 | 2.814 | 72.6 | 0.157 | 4.06 | 18.1 | ||
3" | 78 | 3.422 | 88.3 | 0.157 | 4.06 | 22.3 | ||
3-1/2" | 91 | 3.911 | 100.9 | 0.157 | 4.06 | 25.6 | ||
4" | 103 | 4.391 | 113.3 | 0.157 | 4.06 | 29.1 | ||
Notes: Applicable tolerance
Length: 10FT ±0.194 in. 3050mm ± 5mm
Outside Diameter: 1/2" to 4 " ± 0.012 in.(16mm to 53mm ± 0.3 mm).
Threaded both ends,one end with GI socket and another end with plastic cap
