Help Center4" Electrical Conduit Intermediate Tube
Related Products
-
Q195 C80.6 Imc Conduit PipesUS$ 1 - 20MOQ: 3000 Pieces -
Q195 UL1242 IMC/RSC/EMT CONDUITUS$ 1 - 20MOQ: 3000 Pieces
-
1" Hot Dipped Galvanized Conduit TubeUS$ 1 - 20MOQ: 3000 Pieces
-
3/4" 26.1mm IMC Galvanized Conduit Emt TubeUS$ 1 - 20MOQ: 3000 Pieces
-
Electrical Steel Galvanized IMC ConduitUS$ 1 - 20MOQ: 3000 Pieces
Specifications
electrical conduit intermediate tube1.OD:1/2"-4"
2.Pre or Hot-dip Galvanized
3.End:NPT threaded with socket and cap
Size: 1/2"- 4"
Material: steel
Intermediate Metal Conduit (IMC) is manufactured in accordance with:
>American National Standards for Steel. (ANSI C80.6)
>Underwriters Laboratories Standard for Electrical Metallic Tubing.(UL 1242).

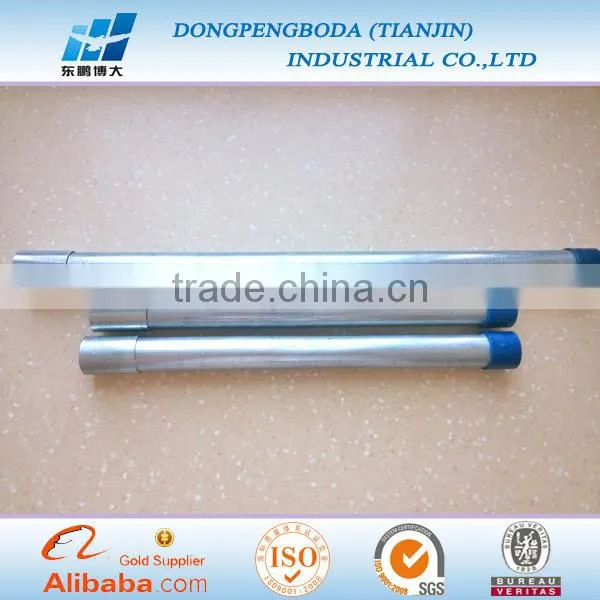

Intermediate Metal Conduit (IMC) is threaded on both ends, one end is with a steel coupling,and the other end is with a plastic cap to prot IMC conduit-UL1242 C80.6 ect the thread.
Surface: Hot-dip galvanized or Pre- galvanized
Finished:Hot-dip galvanized
| IMC (Intermediate Metal Conduit) Dimensions and Weights | ||||||||
| Nominal Diamension | Outside Diameter | Wall Thickness | Length | Weight | ||||
| Size | Size | |||||||
| Inch | mm | Inch | mm | Inch | mm | FT | mm | KG/PC |
| 1/2" | 16 | 0.802 | 20.7 | 0.077 | 1.98 | 10 | 3050 | 2.78 |
| 3/4" | 21 | 1.012 | 26.1 | 0.081 | 2.1 | 3.79 | ||
| 1" | 27 | 1.271 | 32.8 | 0.091 | 2.35 | 5.38 | ||
| 1-1/4" | 35 | 1.612 | 41.6 | 0.094 | 2.42 | 7.13 | ||
| 1-1/2" | 41 | 1.853 | 47.8 | 0.098 | 2.54 | 8.65 | ||
| 2" | 53 | 2.322 | 59.9 | 0.103 | 2.67 | 11.49 | ||
| 2-1/2" | 63 | 2.814 | 72.6 | 0.157 | 4.06 | 18.1 | ||
| 3" | 78 | 3.422 | 88.3 | 0.157 | 4.06 | 22.3 | ||
| 3-1/2" | 91 | 3.911 | 100.9 | 0.157 | 4.06 | 25.6 | ||
| 4" | 103 | 4.391 | 113.3 | 0.157 | 4.06 | 29.1 | ||
Dimensions for Thinwall Thickness
Finish:Pre-galvanized
| Model | Trade Size designator | Nominal outside Dia. | Nominal Wall Thickness | Length | ||||
| U.S. | Metric | in. | mm | in. | mm | mm | mm | |
| IMC-50 | 1/2" | 16 | 0.815 | 20.7 | 0.07 | 1.79 | 3000 | 3050 |
| IMC-75 | 3/4" | 21 | 1.029 | 26.1 | 0.075 | 1.9 | 3000 | 3050 |
| IMC-100 | 1" | 27 | 1.29 | 32.77 | 0.085 | 2.15 | 3000 | 3050 |
| IMC-125 | 1-1/4" | 35 | 1.638 | 41.59 | 0.085 | 2.16 | 3000 | 3050 |
| IMC-150 | 1-1/2" | 41 | 1.883 | 47.82 | 0.09 | 2.29 | 3000 | 3050 |
| IMC-200 | 2" | 53 | 2.36 | 59.93 | 0.095 | 2.41 | 3000 | 3050 |
| Model | Trade Size designator | Nominal outside Dia. | Nominal Wall Thickness | Length | ||||
| U.S. | Metric | in. | mm | mm | mm | |||
| IMC-50T | 1/2" | 16 | 0.815 | 20.7 | 1.6 | 3000 | ||
| IMC-75T | 3/4" | 21 | 1.029 | 26.1 | 1.7 | 3000 | ||
| IMC-100T | 1" | 27 | 1.29 | 32.77 | 2 | 3000 | ||
| IMC-125T | 1-1/4" | 35 | 1.638 | 41.59 | 2 | 3000 | ||
| IMC-150T | 1-1/2" | 41 | 1.883 | 47.82 | 2.1 | 3000 | ||
| IMC-200T | 2" | 53 | 2.36 | 59.93 | 2.2 | 3000 | ||
Threaded
Dongpengboda (Tianjin) Industrial Co.,Ltd. is located in Daqiuzhuang, Tianjin, which is the biggest welded pipe production base in the world.East: 50 kilometers away from Tianjin Port ,40 kilometers away from Tianjin Binhai International Airport. South: 1kilometer away from Danla expressway. West:8 kilometers away from Beijing-Shanghai expressway. With sea, land and air transportation, it's very convenient .
Our group is founded in 2006, and the register capital is 205 million Yuan. It has three subsidiary companies: Tianjin Tianfeng Steel Pipe Co.,Ltd; Tianjin Tianwang Steel Pipe Co.,Ltd; Tianjin FWS Trading Co.,Ltd. After years of hard work, we have formed a diversified investment pattern of development, and in accordance with the requirements of new industrialization, we have given full play to their own advantages to achieve the scale, structure, quality and efficiency overall promotion.
Group companies have a professional production of galvanized round pipe, galvanized square and rectangular pipe, hot rolled square and rectangular steel pipe and other various types of steel pipes. We have a total of 17 steel production lines, which have advanced technology and equipment and are all controlled by computer. Production process is in strict accordance with the ISO9001 quality management system, and steel pipe can be customized in GB, American standard, British standard, European standard, Australian standard and Japanese standard. Therefore our product quality has reliable guarantee and can be exported to North America, South America, Europe, Middle East, Southeast Asia, Australia and Central Asia and many other countries and regions. The annual output is 88 thousand tons. Products are widely used in many fields such as vegetables, nursery seedling greenhouses, threading pipe, steel liner tube in family decorate, construction steel structure, ship machinery, container, steel-wood furniture, bridge structure and so on. Besides, we also product hot dipped galvanized pipe, cold rolled steel pipe, petroleum casing pipe, seamless steel pipe, shaped pipe, galvalume steel coil, PPGI, corrugated sheet, PC strand. The annual sale reaches 3.8 billion Yuan.
We firmly believe that in support of customers and other industries in society we will provide excellent products and sincere service with advanced technology and strict management. We focus on" Quality first, Customers first". Welcome friends all over the world come.
