UL 6 ANSI C 80.1 Hot-dip Galvanized Rigid Steel Conduit
1.Standard:UL6 & ANSI C80.1
2.Tade Size : from 1/2” to 6”
3.Length: 3050mm or according to customer’s requirement

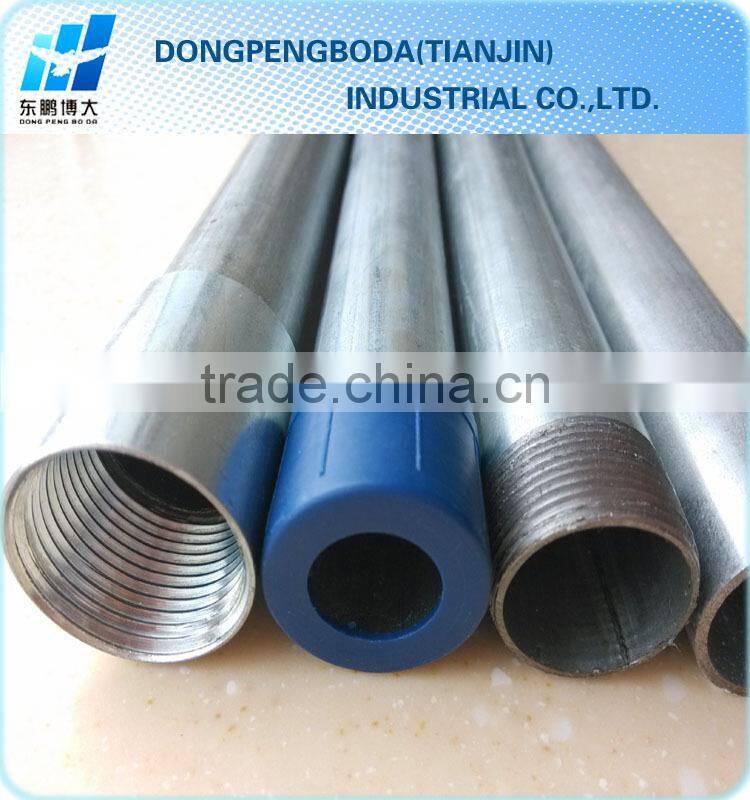

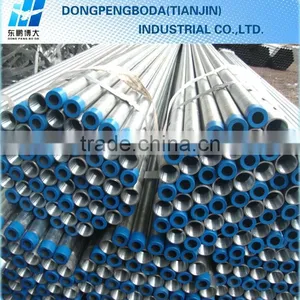

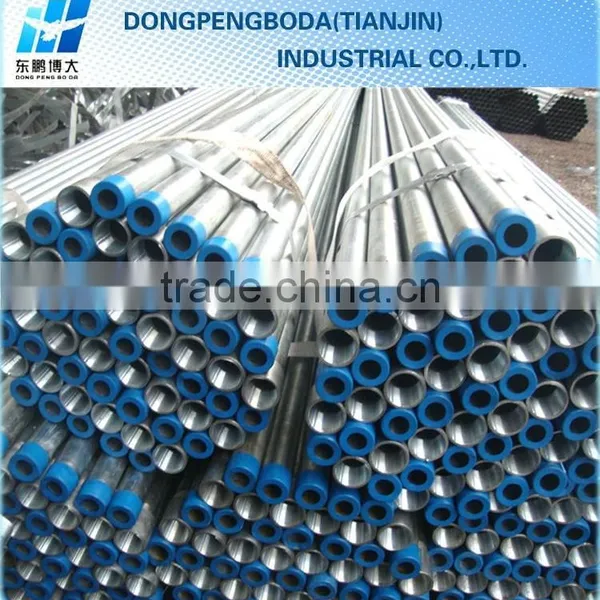

4.Both ends:NPT threaded both ends with one coupling and plastic cap
5.Usage: through the electrical wires with the purpose of protection for the electrical raceway system
6.Surface finished: Hot dip galvanized(HDG)
7.Material : carbon steel coil

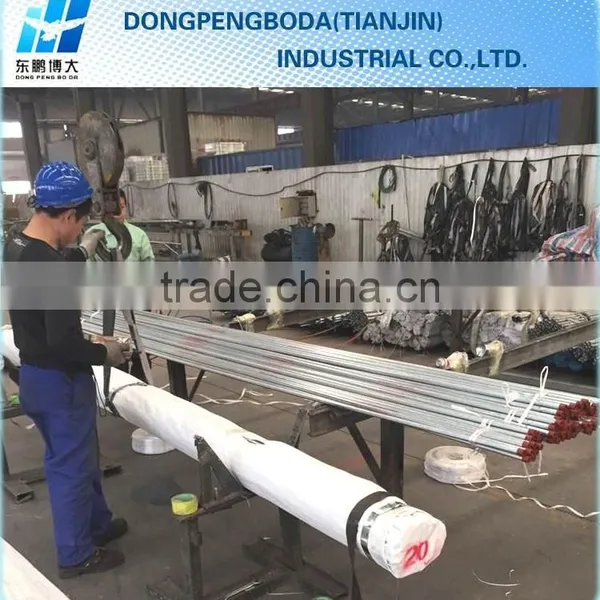

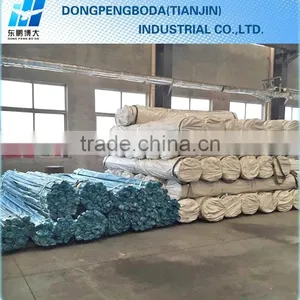

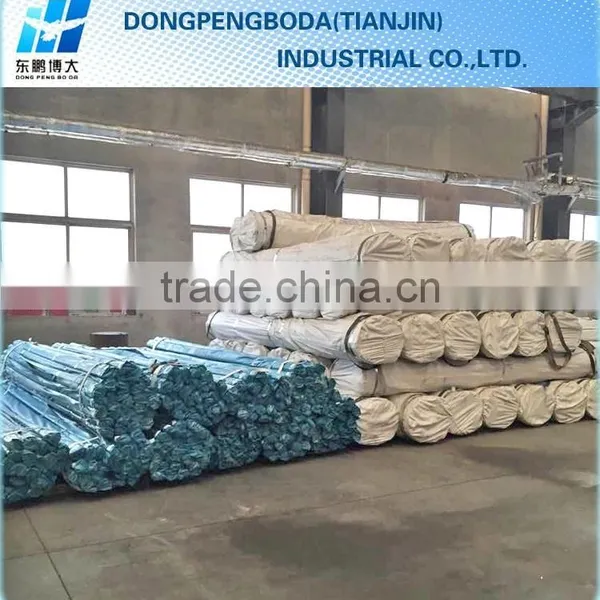

8.Package: In bundles or coverd with pvc paper then tied with steel straps
9.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
10.Payment Term: L/C at sight or T/T
Specifications
| Size | Outside Diameter | Wall Thickness | Approx. Wt. Per 100PCS | Qty./Bundle | |||
| in. | in. | mm | in. | mm | lb. | kg | Psc |
| 1/2" | 0.84 | 21.3 | 0.104 | 2.6 | 82 | 37.2 | 127 |
| 3/4" | 1.05 | 26.7 | 0.107 | 2.7 | 109 | 49.4 | 91 |
| 1" | 1.315 | 33.4 | 0.126 | 3.2 | 161 | 73 | 61 |
| 1-1/4" | 1.66 | 42.2 | 0.133 | 3.4 | 218 | 98.9 | 61 |
| 1-1/2" | 1.9 | 48.3 | 0.138 | 3.5 | 263 | 119.3 | 37 |
| 2" | 2.375 | 60.3 | 0.146 | 3.7 | 350 | 158.7 | 37 |
| 2-1/2" | 2.875 | 73 | 0.193 | 4.9 | 559 | 253.5 | 19 |
| 3" | 3.5 | 88.9 | 0.205 | 5.2 | 727 | 329.7 | 19 |
| 3-1/2" | 4 | 101.6 | 0.215 | 5.5 | 880 | 399.1 | 10 |
| 4" | 4.5 | 114.3 | 0.225 | 5.7 | 1030 | 467.1 | 10 |
| 5" | 5.563 | 141.3 | 0.245 | 6.2 | 1400 | 634.9 | 7 |
| 6" | 6.625 | 168.3 | 0.266 | 6.8 | 1840 | 834.5 | 7 |
| Outside diameter tolerances: | |||||||
| +/-.015in.(.38mm) for trade size 1/2" through 1-1/2" | |||||||
| +/-1% for trade size 2" through 6" | |||||||
| Wall thickness tolerances: +/-12.5% | |||||||
| Length tolerances: 10 ft.(3.05M) with a tolerance of +/-.25"(6.35mm) or as your request | |||||||


UL797 EMT BS4568 CONDUIT BS31 CONDUIT UL 1242 IMC
