Specifications
1.Q195/Q235Q235 Galvanzied Steel Pipe/tubes2.Certificate:ISO9001-2000
3.Length:0.5m-12m
4.Material:Q195 Q215 Q235

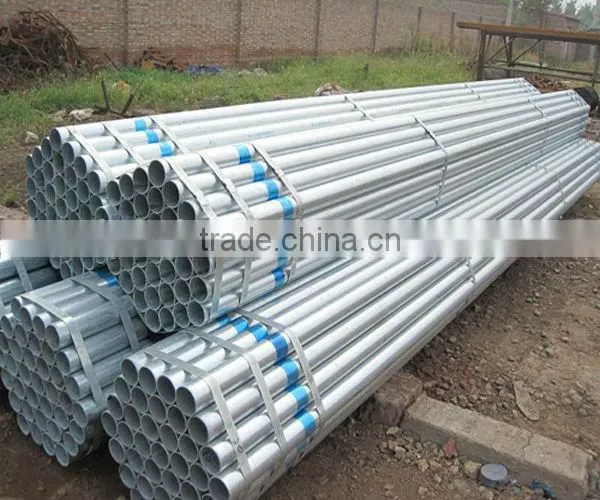

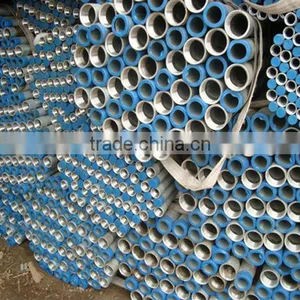

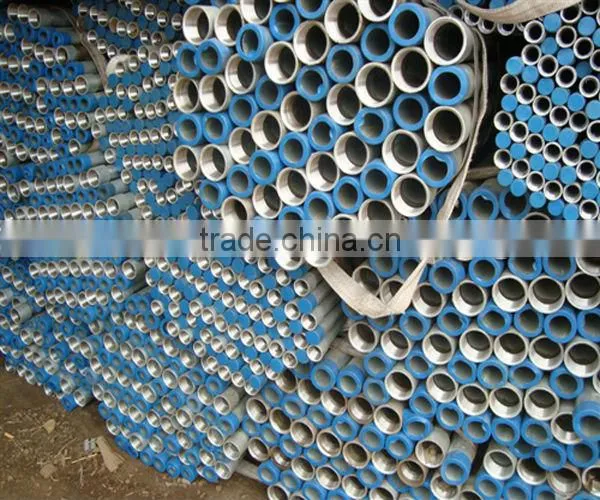

For Fence/Fencing/Building/Contruction Welded HDG steel pipe
We are supplier(manufacturer) of this products:
steel pipe 1 /1 inch pipe /1.5 inch pipe /10 steep pipe / galvanized pipe /carbon steel pipe /erw steel pipe building steel / steel pipe and tubing /galvanized pipe tube/square pipe/seamless pipe tube/ rectangular tubing /carbon steel pipe/ corrugated metal steel pipe/buy metal steel for sale
Details:
Product Name: |
Carbon steel pipe |
||
Size |
OD |
1/2-48"(21.3mm-1219.2mm) |
|
Wall Thickness |
0.6-60mm. SCH30,SCH40,STD,XS,SCH80,SCH160,XXS etc. |
||
ZINC COATED |
1)Pre-galvanized:Z60-120g/m2 2)Hot dip galvanized:Z200-500g/m2 |
||
Steel material |
Q195 Q215 Q235 Q345 |
||
Standard |
ISO API CE SGS AISI ASTM BS DIN GB JIS |
||
Section shape |
Round/Square/Rectangular |
||
Type |
Welded Pipe |
||
Technique |
Electronic Resistance Welded (ERW ) Electronic Fusion Welded (EFW) Double Submerged Arc Welded (DSAW) |
||
Welded Line Type |
Longitudinal |
||
Length |
0.5m-12m(customizable) |
||
End protector |
1) Plastic pipe cap 2) Iron protector |
||
Surface Treatment |
1) Bared 2) Black Painted (varnish coating) 3) Galvanized 4) With Oiled 5) 3 PE, FBE, corrosion resistant coating |
||
Inspection |
With Hydraulic Testing, Eddy Current , Infrared Test |
||
Class A test pressure |
4.83MPa-13.10Mpa |
||
Package |
In bundle or in balk |
||
Application |
1)structure 2)construction |
||
Delivery |
1) Container 2) Bulk carrier |
||
Port of Shipment |
Xingang Port,Tianjin, China |
||
Date of Delivery |
According To The Quantity And Specification Of Each Order |
||
Payment |
T/T D/A T/T D/P Western Unin |
||
|
Addition:
|
Special design available according to requirment .Anti-corrosion and high-temperature resistant with black painting .All the production process are made under the ISO9001:2000 strictly
Weight per Piece=(OD-Thickness)*Thickness*Length*0.02466 |
||
| specification | |
| nominal | pipe size |
| 15 | 1/2" |
| 20 | 3/4" |
| 25 | 1" |
| 32 | 1.1/4" |
| 40 | 1.1/2" |
| 50 | 2" |
| 65 | 2.1/2" |
| 80 | 3" |
| 90 | 3.1/2" |
| 100 | 4" |
| 125 | 5" |
| 150 | 6" |
| 200 | 8" |
| 250 | 10" |
| 300 | 12" |
| 350 | 14" |
| 400 | 16" |
| 450 | 18" |
| 500 | 20" |
| 550 | 22" |
| 600 | 24" |
| 650 | 26" |
| 700 | 28" |
| 750 | 30" |
| 800 | 32" |
| 850 | 34" |
| 900 | 36" |
| 950 | 38" |
| 1000 | 40" |
| 1050 | 42" |
| 1100 | 44" |
| 1150 | 46" |
| 1200 | 48" |
