BS31 Zinc Coating Conduit Tubes
US$ 0.6 - 20.59
/ Ton
5 Tons(Min. Order)
- Tianjin/Xingang
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Thickness | 1.2, 1.65 | Section Shape | Other, Round, Round | |
| Outer Diameter | 19.05 - 50.8 mm | Place of Origin | Tianjin, China | |
| Secondary Or Not | Non-secondary | Application | Structure Pipe | |
| Certification | BSI | |||
| Surface Treatment | Galvanized | Special Pipe | EMT Pipe | |
| Alloy Or Not | Non-alloy |
Product Description
Specifications
BS31 zinc coating conduit tubes1.Standard:BS31-1940
2.Length:3.75m
3.Material:Q195

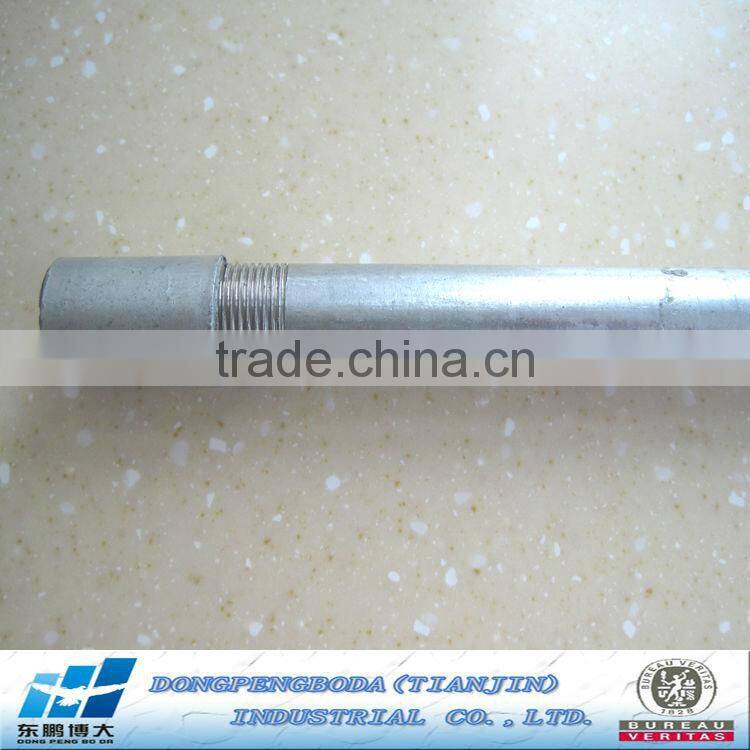

BS31 zinc coating conduit tubes
Following is the size for your reference
Stardard:BS31
Material: Steel
Class: Class3 & Class4
Size:3/4",1",1-1/4",1-1/2",2"

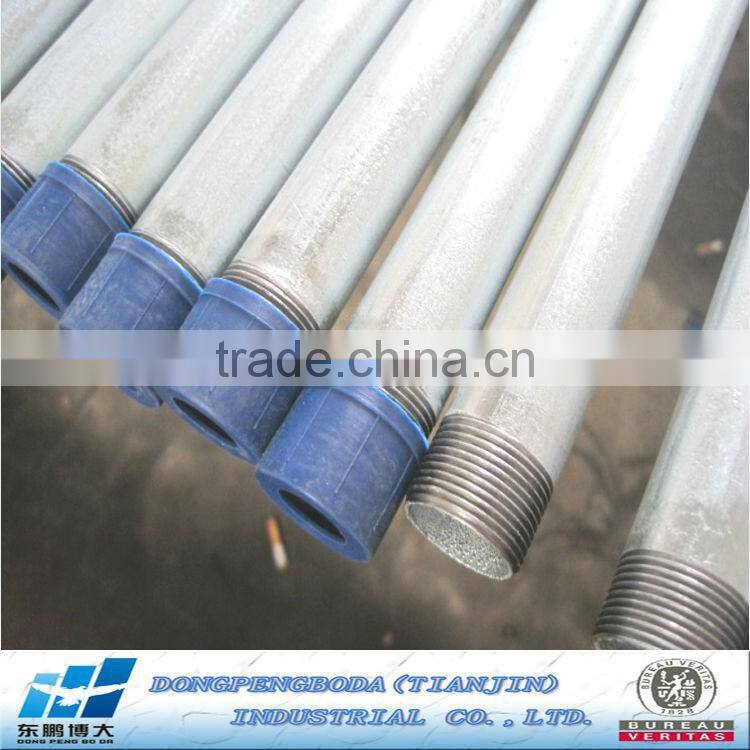

Surface:threaded both ends,one end is coupling and other end is plastic cap
Applicable Tolerances:
Length: 3.75m± ¼” (±6.35mm).
Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51mm)
| BS31:1940 Class 4 Conduit Specification Sheet | ||||||||
| SIZE | Outside Diameter | Wall Thickness | Length | Length of Thread | PCS/container | |||
| (mm) | A | B | (mm) | |||||
| Min | Max | (mm) | (mm) | (m) | Min | Max | ||
| 3/4“ | 18.9 | 19.05 | 1.4±0.15 | 1.2 | 3.75 | 13.5 | 14.3 | |
| 1” | 25.25 | 25.4 | 1.6±0.15 | 1.2 | 3.75 | 16.7 | 17.5 | 8000 |
| 1-1/4“ | 31.6 | 31.75 | 1.6±0.15 | 1.2 | 3.75 | 18.3 | 19.1 | 6000 |
| 1-1/2” | 37.8 | 38.1 | 1.6±0.15 | 1.2 | 3.75 | 19.1 | 20.6 | 4400 |
| 2“ | 50.5 | 50.8 | 1.6±0.15 | 3.75 | 22.2 | 23.8 | 3000 | |
