Electrical Steel Conduit BS4568
US$ 0.6 - 20.59
MOQ: 5 Tons
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
1.2, 1.65
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
19.05MM BS31 Galvanized Conduit PipeUS$ 0.8 - 20MOQ: 10000 Pieces -
ISO Metric Threaded BS 4568 Galvnaized Class 3 ConduitUS$ 1.1 - 2.5MOQ: 5000 Pieces
-
ISO Metric Screw Threaded BS 4568 Conduit Emt PipeUS$ 1.1 - 2.5MOQ: 5000 Pieces
-
BS 4568 Emt Class 3 and Class 4 Conduit Galvanized TubeUS$ 1.1 - 2.5MOQ: 5000 Pieces
-
BSI Standard BS31-1940 31.75mm 1 1/4" Electrical Conduit TubeUS$ 0.8 - 20MOQ: 10000 Pieces
Thickness
1.2, 1.65
Section Shape
Other, Round, Round
Outer Diameter
21.3 - 168.3 mm
Place of Origin
Tianjin, China
Secondary Or Not
Non-secondary
Application
Structure Pipe
Technique
ERW
Certification
BSI
Surface Treatment
Galvanized
Special Pipe
EMT Pipe
Alloy Or Not
Non-alloy

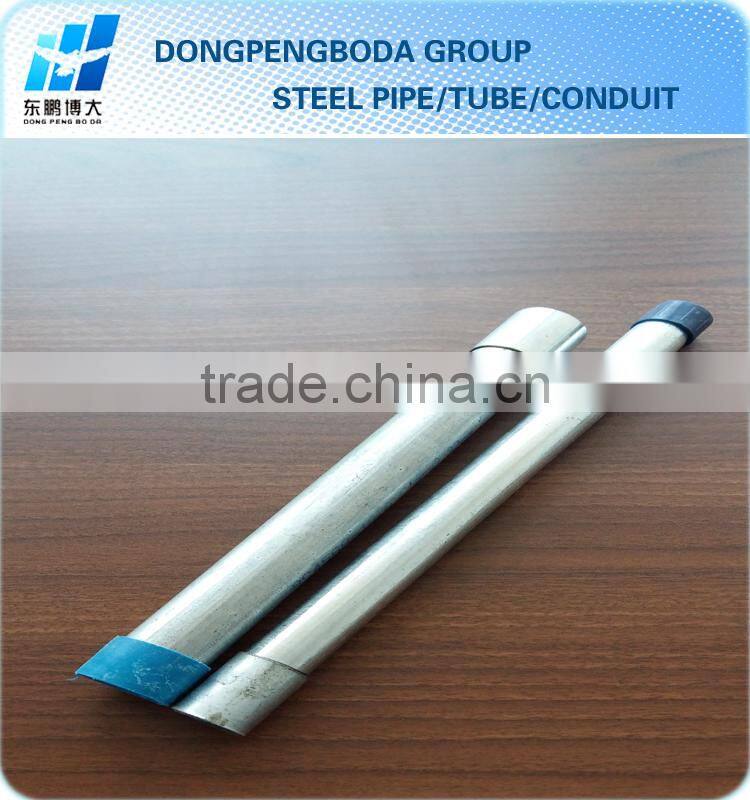

Electrical Steel Conduit
Standard
BS4568
Following is the size for your reference
Material: galvanzied steel coils
Finish:pre galvanised or hot dipped galvanzied
Size:20mm/25mm/32mm/40mm/50mm/65mm/75mm/100mm
Surface:threaded both ends,one end is coupling and other end is plastic cap
Applicable Tolerances:
Length: 10Ft (3.05m) ± ¼” (±6.35mm).
Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51mm)
| BS4568:1970 Class 4 and Class 3 Conduit Specification Sheet | |||||||
| SIZE | Outside Diameter | Wall Thickness | Length | Length of Thread | |||
| (mm) | A | B | (mm) | ||||
| Min | Max | (mm) | (mm) | (m) | Min | Max | |
| 16mm | 15.7 | 16 | 1.4±0.15 | 1.2 | 3.75 | 11.5 | 13.5 |
| 20mm | 19.7 | 20 | 1.6±0.15 | 1.2 | 3.75 | 13 | 15 |
| 25mm | 24.6 | 25 | 1.6±0.15 | 1.2 | 3.75 | 16 | 18 |
| 32mm | 31.6 | 32 | 1.6±0.15 | 1.2 | 3.75 | 18 | 20 |
| 40mm | 39.5 | 40 | 1.6±0.15 | 3.75 | 19 | 22 | |
| 50mm | 49.5 | 50 | 1.6±0.15 | 3.75 | 19 | 22 | |
| 60mm | 59.5 | 60.3 | 2.0±0.15 | 3.75 | |||
| 75.5mm | 75 | 75.5 | 2.0±0.15 | 3.75 | |||
| 88.5mm | 88 | 88.5 | 2.0±0.15 | 3.75 | |||
| 114mm | 113.5 | 114 | 2.0±0.15 | 3.75 | |||
Product Description
Our Services
1-Professional product
2-Professional price
3-Professional quality
4-Professional export service
