Emt Conduit Sizes

 BS 4568-1970 ELECTRICAL METALLIC CONDUIT TUBE/PIPE

Stardard:BS4568-1970

Material: Steel

Size:16mm,20mm,25mm,32mm

Class: Class3 & Class4

Surface:Pre-Galvanized and Hot-Dip Galvanized

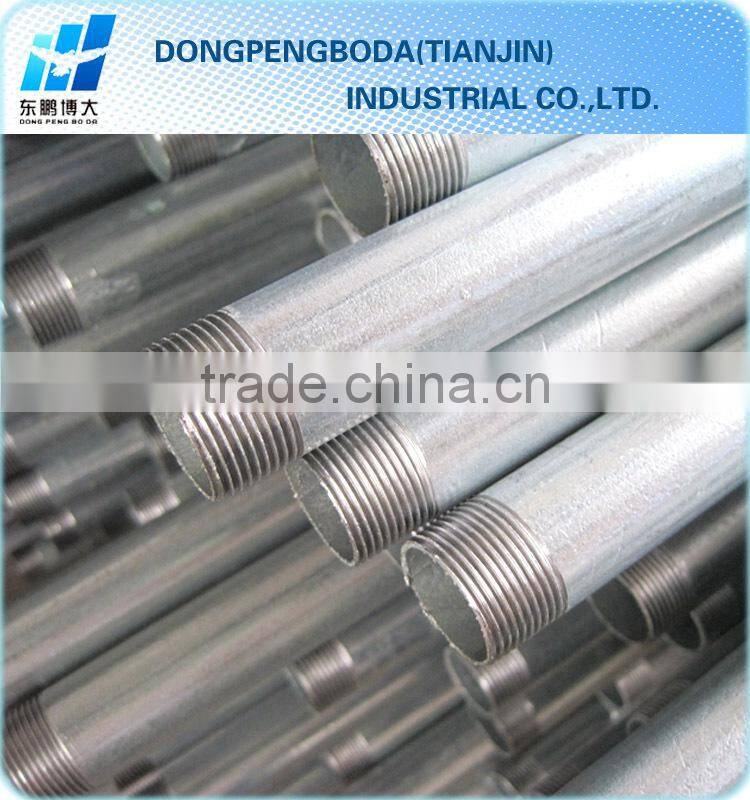

End Treatment: ISO metric screw threaded two ends,with one socket on the one end, a plastic cap on another end.

Class 3 BS4568 Conduit Pre-Galvnaized

Features:

• Class 3 BS4568 conduit is Pre-galvanized.

• Heavy corrosion protection on the exterior surface and medium

corrosion protection on interior surface of the conduit.

• Supplied c/w one coupler per length.

• Metric size threadings.

Applications:

• Suitable for indoor use where a higher level of corrosion protection is required.

• Also suitable for semi outdoor areas.

Class 4 BS4568 Conduit Hot-Dip Galvnaized

Features:

• Class 4 BS4568 conduit is hot dipped galvanized.

• Heavy corrosion protection on the exterior and interior surface of the conduit.

• Supplied c/w one Hot-Dipped Galvanized coupler per length.

• Hot-Dipped Galvanized to BS EN ISO 1461 which supercedes BS729.

• Metric size threadings

Applications:

• Suitable for outdoor use which requires high levels of corrosion protection.

• Recommended for use in areas with high humidity, chemical plants & areas near coast.

        UL 797 EMT                BS31 EMT                    UL 1242 IMC             UL 6 RSC

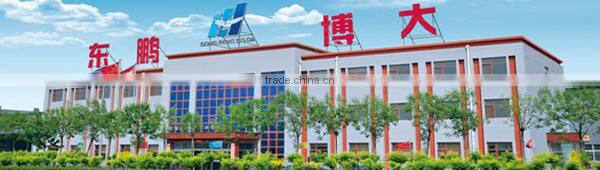

     Dongpengboda (Tianjin) Industrial Co.,Ltd. is located in Daqiuzhuang, Tianjin, which is the biggest welded pipe production base in the world.East: 50 kilometers away from Tianjin Port ,40 kilometers away from Tianjin Binhai International Airport. South: 1kilometer away from Danla expressway. West:8 kilometers away from Beijing-Shanghai expressway. With sea, land and air transportation, it's very convenient .
    Our group is founded in 2006, and the register capital is 205 million Yuan. It has three subsidiary companies: Tianjin Tianfeng Steel Pipe Co.,Ltd; Tianjin Tianwang Steel Pipe Co.,Ltd; Tianjin FWS Trading Co.,Ltd. After years of hard work, we have formed a diversified investment pattern of development, and in accordance with the requirements of new industrialization, we have given full play to their own advantages to achieve the scale, structure, quality and efficiency overall promotion.
    Group companies have a professional production of UL 797 EMT,BS 4568 CONDUIT,BS 31 CONDUIT,UL 1242 IMC,UL 6 RSC,galvanized round pipe, galvanized square and rectangular pipe, hot rolled square and rectangular steel pipe and other various types of steel pipes. We have a total of 17 steel production lines, which have advanced technology and equipment and are all controlled by computer. Production process is in strict accordance with the ISO9001 quality management system, and steel pipe can be customized in GB, American standard, British standard, European standard, Australian standard and Japanese standard. Therefore our product quality has reliable guarantee and can be exported to North America, South America, Europe, Middle East, Southeast Asia, Australia and Central Asia and many other countries and regions. The annual output is 88 thousand tons. Products are widely used in many fields such as vegetables, nursery seedling greenhouses, threading pipe, steel liner tube in family decorate, construction steel structure, ship machinery, container, steel-wood furniture, bridge structure and so on. Besides, we also product hot dipped galvanized pipe, cold rolled steel pipe, petroleum casing pipe, seamless steel pipe, shaped pipe, galvalume steel coil, PPGI, corrugated sheet, PC strand. The annual sale reaches 3.8 billion Yuan.
    We firmly believe that in support of customers and other industries in society we will provide excellent products and sincere service with advanced technology and strict management. We focus on" Quality first, Customers first". Welcome friends all over the world come.

Why DongPengBoDa?

1,Safe Product. Our conduit is safe, easy to install, with wide production range, and has shielding performance, anti-jamming performance, fire prevention and many other good performance. It is the preferred wire pulling material of modern building.

2,Good Raw Material. Our conduit is processed by high-quality hot dipped galvanized coil, with zinc layer thickness more than 20um, which extends the life of the conduit. Zinc coating is well-distributed, good finished with smooth surface, without black spots and bubbles, and has strong corrosion resistance. It is suitable for wires protect installation of lighting  and machinery equipment in wet, corrosive harsh environment. Higher-quality products can be customized according to customer’s requirements.

3,Good Weld Line. Weld line is smooth, and the height of inner weld line does not exceed 0.3 mm, which keep the conduit suitable for wire pulling and no damage to the wires.

4,Clean End of the Conduit. The end of our conduit is cut off squarely and cleaned without any burrs and sharp edges, which will not damage the wire.

5,Perfect Inspection Process. Our company has a perfect product inspection process to ensure that products we offer you are qualified.

6,Withstand a variety of tests. Our products have a perfect performance in the threading test, zinc layer testing, stamping tests, bending tests and other physical and chemical tests.
