Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > Electrical Metal Conduit Bs4568 Class 3
US$ 1.125 - 6.789
MOQ: 10 Tons
Key Specifications
Get Latest Price
Grade:
Thickness:
1.4, 2.0
Section Shape:
Round
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Metal Conduit Bs4568 Class 4US$ 1.125 - 6.789MOQ: 10 Tons -
Waterproof Electrical Metal ConduitUS$ 1.05 - 15.5MOQ: 5000 Pieces
-
Decorative Conduit ElectricalUS$ 1.05 - 15.5MOQ: 5000 Pieces
-
Underground Electrical Conduit gi Pipe DPBDUS$ 1.05 - 15.5MOQ: 5000 Pieces
-
OD 25mm Electric Metallic TubingUS$ 1.05 - 15.5MOQ: 5000 Pieces
Thickness
1.4, 2.0
Section Shape
Round
Outer Diameter
16 - 114 mm
Place of Origin
Tianjin, China
Secondary Or Not
Non-secondary
Application
Other, electrical application
Technique
ERW
Certification
Other
Surface Treatment
Galvanized
Special Pipe
EMT Pipe
Alloy Or Not
Non-alloy

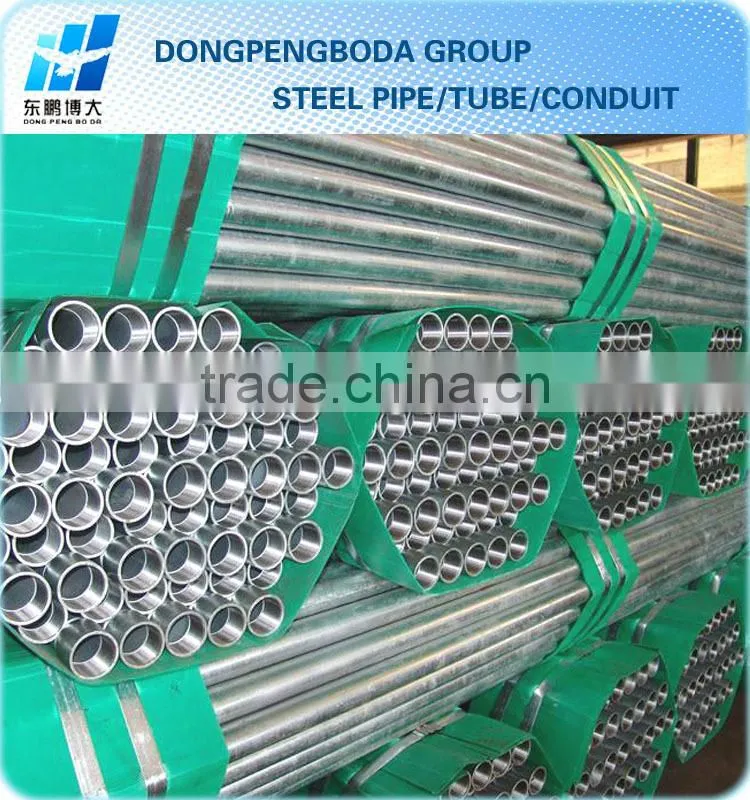

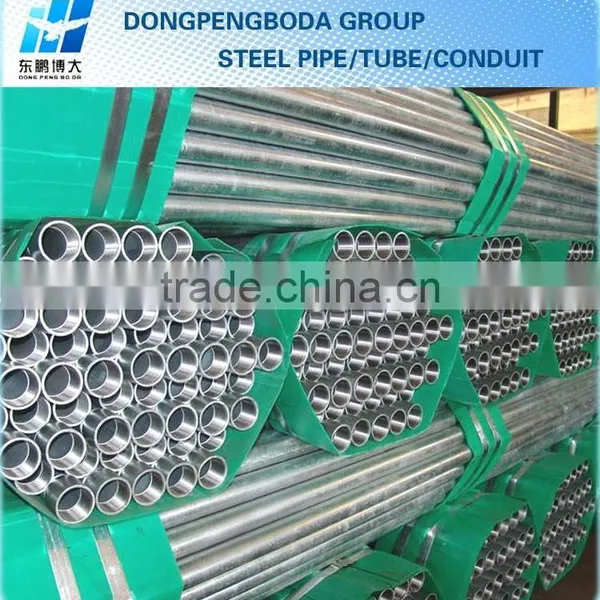

electrical metal conduit bs4568 class 3
Following is the size for your reference
Material: galvanzied steel coils
Finish:pre galvanised or hot dipped galvanzied
Size:20mm/25mm/32mm/40mm/50mm/60.3mm/75.5mm/88.5mm/114mm

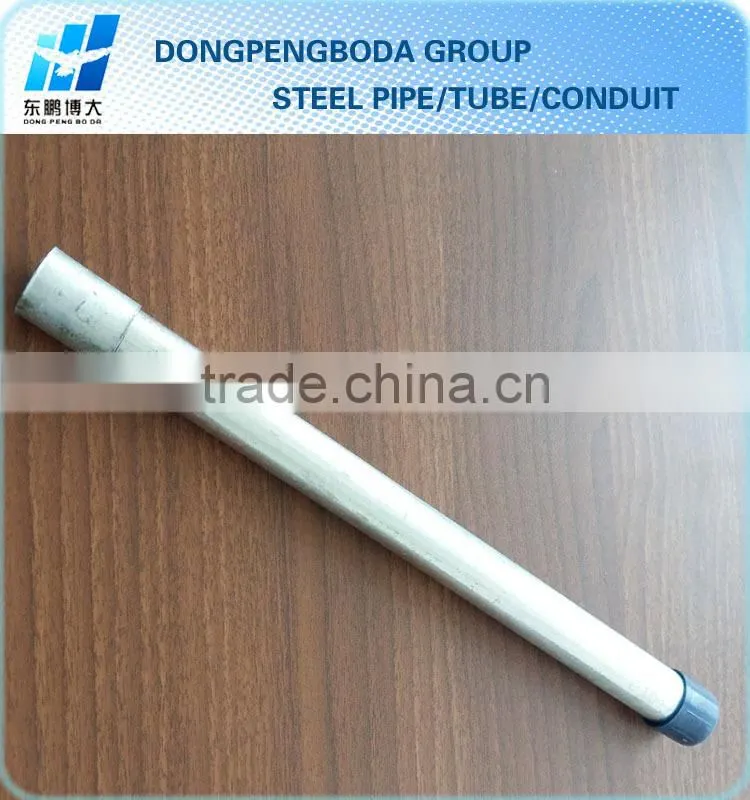

Surface:threaded both ends,one end is coupling and other end is plastic cap
| BS4568:1970 Class 4 and Class 3 Conduit Specification Sheet | |||||||
| SIZE | Outside Diameter | Wall Thickness | Length | Length of Thread | |||
| (mm) | A | B | (mm) | ||||
| Min | Max | (mm) | (mm) | (m) | Min | Max | |
| 16mm | 15.7 | 16 | 1.4±0.15 | 1.2 | 3.75 | 11.5 | 13.5 |
| 20mm | 19.7 | 20 | 1.6±0.15 | 1.2 | 3.75 | 13 | 15 |
| 25mm | 24.6 | 25 | 1.6±0.15 | 1.2 | 3.75 | 16 | 18 |
| 32mm | 31.6 | 32 | 1.6±0.15 | 1.2 | 3.75 | 18 | 20 |
| 40mm | 39.5 | 40 | 1.6±0.15 | 3.75 | 19 | 22 | |
| 50mm | 49.5 | 50 | 1.6±0.15 | 3.75 | 19 | 22 | |
| 60mm | 59.5 | 60.3 | 2.0±0.15 | 3.75 | |||
| 75.5mm | 75 | 75.5 | 2.0±0.15 | 3.75 | |||
| 88.5mm | 88 | 88.5 | 2.0±0.15 | 3.75 | |||
| 114mm | 113.5 | 114 | 2.0±0.15 | 3.75 | |||
