Greenhouse Polycarbonate Solid Embossed sheet (Pearly RED)

VULCAN PLASTICS

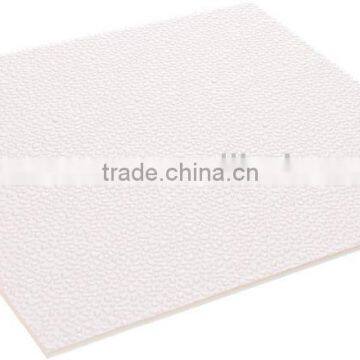

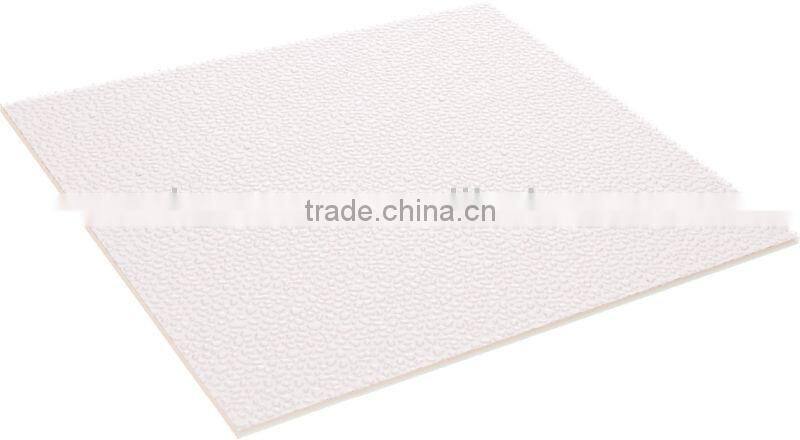

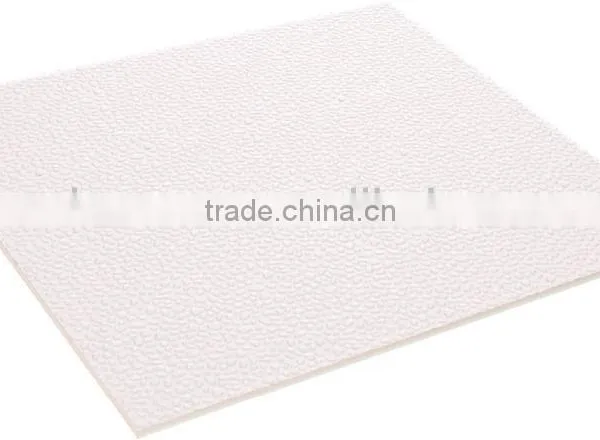

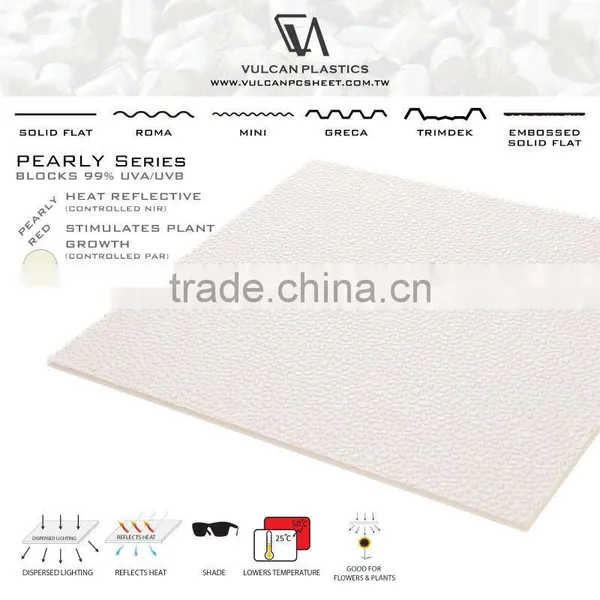

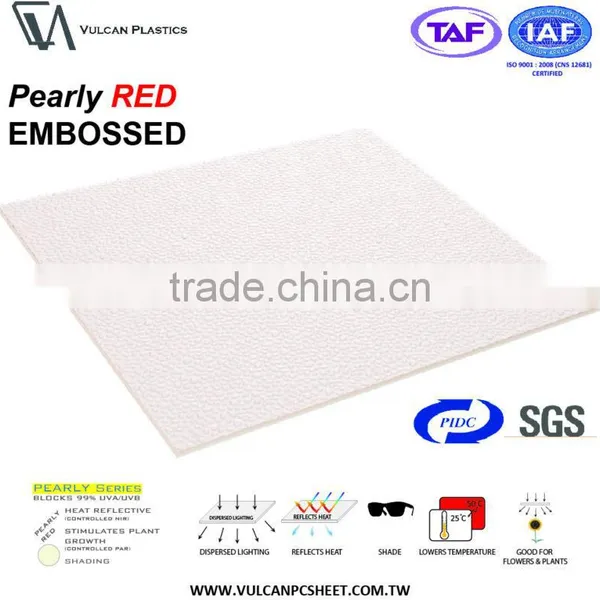

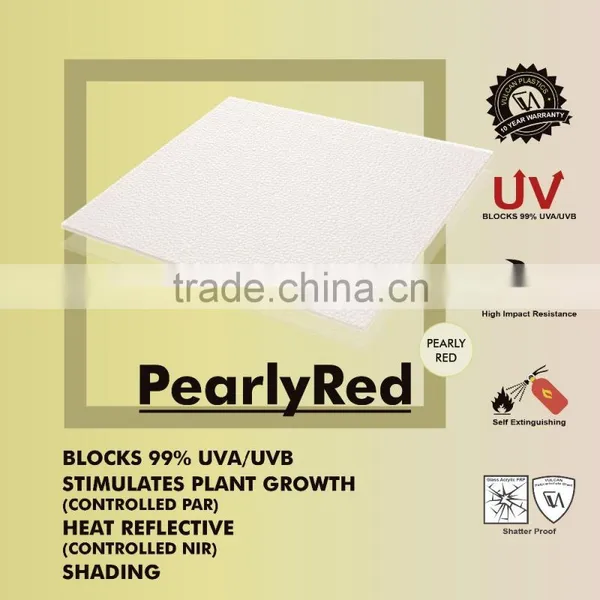

Polycarbonate PEARLY RED SOLID Embossed sheet

Controlled Photosynthetically Active Radiation to stimulate Plant Growth

Pearly RED: Controlled Photosythetically Active Radiation to Stimulate Plant Growth

Near RED light make plants grow

VULCAN PEARLY RED filters out Far Red Light* (735nm) which hinders plant growth and keeps Phytochromes activating near red light (665nm), Plants grow when the phytochromes are exposed to near red light, whereas exposure to far-red light halts the growth process.

* Far red light is at the far end of the visible spectrum, close to the infrared region.

VULCAN Polycarbonate Corrugated and Solid Pearly RED sheets have an eye catching Reddish / Greenish Hue, and is specially designed for plants and vegetation. The special Pearly RED pigment filters out unwanted far Infrared and keeps the near red light which plants need for better growth.  Additional weather Resistant properties ensure a longer lifespan.

The Transmission Spectrum chart of VULCAN Polycarbonate Pearly RED and Pearly GREEN

Pearly RED Coating

• With particle sizes ranging from 5nm~25nm, the Pearly RED pigment is tailored to have a transmission spectrum that matches photosynthesis requirements of vegetation quite closely. The result is cool greenhouses and other enclosed ambients.

Heat Reflective Properties:

• Controlled NIR (700~2500nm): Temperature drop of 7°c depending on the relative temperature and humidity.

Light Transmission Rate:

• Controlled PAR (400~700nm): Excellent shading Properties - 56% light transmission rate.

VULCAN Polycarbonate Solid Embossed sheet offers exceptional strength and glazing properties.  Its high impact strengh and ablility to withstand difficult weather conditions makes it the perfect choice over glass, FRP and  Acrylic*.

The Embossed texture of VULCAN Polycarbonate Valuview Solid Embossed sheet targets users requiring softened, indirect light exposure.

*Polycarbonate impact strength: 250 times over glass, 10 times over FRP and Acrylic.

Specifications – Omipa Extrusion Machine

• Profile: Polycarbonate Solid Embossed
• Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
• UV: Included in Raw Material

• Pearly RED Coating: Weather resistant grade material developed with a renown pigment manufacturer in Germany.
• Thickness: 1.6mm~6mm
• Width: 600mm~1900mm
• Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request).  Rolls are also doable.

• Warranty: 3 years.


Specifications – Breyer Machine

• Profile: Polycarbonate Solid Embossed
• Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
• UV Coating: SINGLE SIDED Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
• Pearly RED Coating: Weather resistant grade material developed with a renown pigment manufacturer in Germany.

• Thickness: 1.7mm~10mm
• Width: 600mm~1900mm
• Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request). Rolls are also doable.

• Warranty: 10 years. (5 for yellowing, 10 for usage)

Product Strengths

Base Material

• 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.

UV400 Coating

• Double Sided Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.


Production Method

• Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)

High impact resistance

• 250 times the impact strength over glass and 10 times over FRP and Acrylic.

Fire Retardant

• Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.

Quality Standards

VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).

Machinery

We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.

Applicable Areas

Agricultural Greenhouse

Garden Greenhouse

Flower Greenhouse

Multi-span Greenhouse

Singe-span Greenhouse

Greenhouse roofing

Greenhouse Walls

Aquaculture Greenhouse

Polycarbonate Warehouse

Polycarbonate Roofing

VULCAN PLASTICS was established in 2007 with the goal of exporting Polycarbonate Sheets of the highest level. With steady progress, we obtained ISO 9001 Certification in the year 2008.

Starting from 1991, we have established a strong foothold in the Polycarbonate Sheet Manufacturing Industry in Taiwan. Following market trends closely and constantly in pursuit of quality and perfection, we continue to develop high-class, multi-functional Polycarbonate Sheets to satisfy customer expectations.

We are now in pursuit of a higher goal, and aim to expand our sales throughout the globe.

Through extensive testing, we have seen what the sun and excessive heat does to a poor product. Vulcan uses only first class, non-recycled material to ensure the lifespan of all our products, which in turn ensures the longlivity of your merchandise.

We are also the first Polycarbonate manufacturer in Asia to incorporate Class 5000 clean rooms for our extrusion lines. (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).

VULCAN Polycarbonate Sheets can be made to order and cut to length as per customer request.  Any specification of either profile within their respetive production range on the Profile Table above can be produced.

Minimum Order Quantity is 10 tons per profile.

All sheets are co-extruded with SD Polyca Optical Grade UV400 coating and are warranted for 10yrs under normal circumstances*.

*Warranty details are listed on our online Installation Manual .tw/download/VP%20Corrugated%20Sheet%20Installation%20Instructions.pdf, failure to comply shall void warranty.

For More information, visit our

Website: .tw

E-Catalogue: .tw/download/VULCAN%20Polycarbonate%20Sheets%20Catalogue.PDF

Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.

We will be more than happy to assist you in choosing the right VULCAN Polycarbonate sheet for your application.
