VULCAN PLASTICS

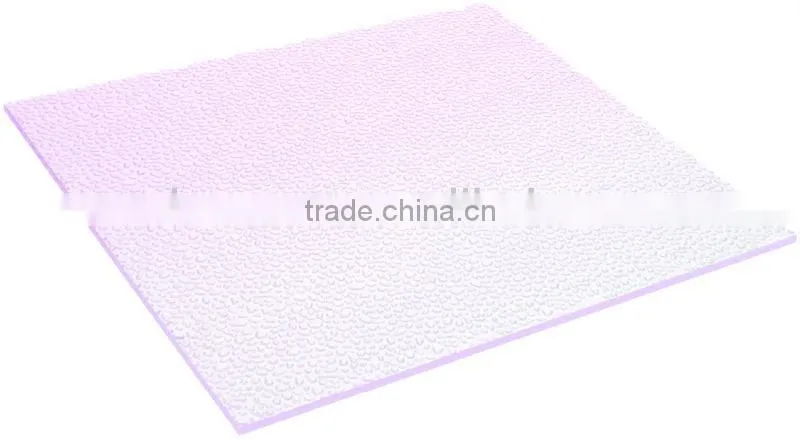

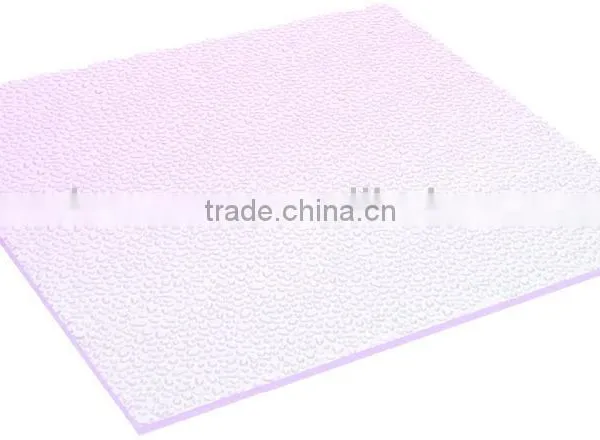

Polycarbonate PEARLY GREEN SOLID Embossed sheet
Good to be GREEN
Pearly GREEN Technology: Good to be GREEN
GREEN is beneficial to living organisms.
VULCAN Polycarbonate Corrugated PEARLY GREEN ROMA sheet was developed specially for living organisms and general purposes.
PEARLY GREEN pigment reflects rather than absorbs heat producing far-red solar radiation without affecting the transmittance of the GREEN spectrum, and retains health benefiting GREEN light. This makes it easier to control the climate, particularly in the summer, and maintain optimum room temperature.*
*A large proportion of the heat increasing far-red light is reflected.
VULCAN Polycarbonate Corrugated Pearly GREEN sheet has a Lilac/Greenish Hue, and creates a significant drop in temperature (Depending on the individual application conditions, rooms are up to 15°c cooler compared to non-pigmented systems), owing to its ability to block harmful UV and IR rays. Since Pearly GREEN was specially designed for humans and living organisms, and focuses more on it's cooling abilities.
The Transmission Spectrum chart of VULCAN Polycarbonate Pearly RED and Pearly GREEN
PEARLY GREEN Coating
- With particle sizes ranging from 10~60μm, PEARLY GREEN is suitable for general-purpose infrared blocking applications.
Heat Reflective Properties:
- Controlled NIR (780~2500nm):Temperature drop of 13°c depending on the relative temperature and humidity.
Light Transmission Rate:
- Controlled VIS (380~780nm):Excellent shading Properties - 65% light transmission rate
Production Method
- Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)
VULCAN Polycarbonate Solid Embossed sheet offers exceptional strength and glazing properties. Its high impact strengh and ablility to withstand difficult weather conditions makes it the perfect choice over glass, FRP and Acrylic*.
The Embossed texture of VULCAN Polycarbonate Valuview Solid Embossed sheet targets users requiring softened, indirect light exposure.
*Polycarbonate impact strength: 250 times over glass, 10 times over FRP and Acrylic.
Machinary |
Width |
Wave Span |
Wave Height |
Thickness |
Production Length |
|||
Min. |
Max. |
Min. |
Max. |
20' |
40' |
|||
Omipa |
600mm |
1900mm |
- |
- |
1.6mm |
6mm |
Max. |
Max. |
5800mm |
11600mm |
|||||||
Breyer |
600mm |
1900mm |
- |
- |
1.7mm |
10mm |
Max. |
Max. |
5800mm |
11600mm |
|||||||
Specifications – Omipa Extrusion Machine
- Profile: Polycarbonate Solid Embossed
- Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
- UV: Included in Raw Material
- Pearly GREEN Coating: Weather resistant grade material developed with a renown pigment manufacturer in Germany.
- Thickness: 1.6mm~6mm
- Width: 600mm~1900mm
- Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request). Rolls are also doable.
- Warranty: 3 years.
Specifications – Breyer Machine
- Profile: Polycarbonate Solid Embossed
- Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
- UV Coating: SINGLE SIDED Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
-
Pearly GREEN Coating: Weather resistant grade material developed with a renown pigment manufacturer in Germany.
- Thickness: 1.7mm~10mm
- Width: 600mm~1900mm
- Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request). Rolls are also doable.
- Warranty: 10 years. (5 for yellowing, 10 for usage)
Product Strengths
Base Material
- 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.
UV400 Coating
-
Double Sided Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.
Production Method
- Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)
High impact resistance
- 250 times the impact strength over glass and 10 times over FRP and Acrylic.
Fire Retardant
- Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.
Quality Standards
VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).
Machinery
We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.
Applicable Areas
Agricultural Greenhouse
Garden Greenhouse
Flower Greenhouse
Multi-span Greenhouse
Singe-span Greenhouse
Greenhouse roofing
Greenhouse Walls
Aquaculture Greenhouse
Polycarbonate Warehouse
Polycarbonate Roofing
VULCAN PLASTICS was established in 2007 with the goal of exporting Polycarbonate Sheets of the highest level. With steady progress, we obtained ISO 9001 Certification in the year 2008.
Starting from 1991, we have established a strong foothold in the Polycarbonate Sheet Manufacturing Industry in Taiwan. Following market trends closely and constantly in pursuit of quality and perfection, we continue to develop high-class, multi-functional Polycarbonate Sheets to satisfy customer expectations.
We are now in pursuit of a higher goal, and aim to expand our sales throughout the globe.
Through extensive testing, we have seen what the sun and excessive heat does to a poor product. Vulcan uses only first class, non-recycled material to ensure the lifespan of all our products, which in turn ensures the longlivity of your merchandise.
We are also the first Polycarbonate manufacturer in Asia to incorporate Class 5000 clean rooms for our extrusion lines. (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).
VULCAN Polycarbonate Sheets can be made to order and cut to length as per customer request. Any specification of either profile within their respetive production range on the Profile Table above can be produced.
Minimum Order Quantity is 10 tons per profile.
All sheets are co-extruded with SD Polyca Optical Grade UV400 coating and are warranted for 10yrs under normal circumstances*.
*Warranty details are listed on our online Installation Manual .tw/download/VP%20Corrugated%20Sheet%20Installation%20Instructions.pdf, failure to comply shall void warranty.
For More information, visit our
Website: .tw
E-Catalogue: .tw/download/VULCAN%20Polycarbonate%20Sheets%20Catalogue.PDF
Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.
We will be more than happy to assist you in choosing the right VULCAN Polycarbonate sheet for your application.
