VULCAN PLASTICS
Polycarbonate PEARLY GREEN ROMA sheets
Good to be GREEN
VULCAN Polycarbonate Corrugated ROMA (76/18)
VULCAN Polycarbonate Corrugated ROMA (76/18) profile sheets are the most sought of product of the
VULCAN corrugated sheets family. Used extensively in agricultural greenhouse projects throughout the globe, our ROMA (76/18) sheet survives the most demanding conditions.
Specifications
Raw Material: 100% Virgin Optical Grade resin from Bayer Germany.
UV Coating: Optical Grade Bayer UV400 Coating
Pearly GREEN Coating: Weather resistant grade material developed with a renown pigment manufacturer in Germany.
Color: Lilac / Greenish hue.
Thickness: 0.6mm~2.0mm
Width: 670mm~1060mm
Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
Warranty: 10 years. (5 for yellowing, 10 for usage)
PEARLY GREEN Technology: Good to be GREEN
GREEN is beneficial to living organisms.
VULCAN Polycarbonate Corrugated PEARLY GREEN material was developed specially for living organisms and general purposes.
PEARLY GREEN pigment reflects rather than absorbs heat producing far-red solar radiation without affecting the transmittance of the GREEN spectrum, and retains health benefiting GREEN light. This makes it easier to control the climate, particularly in the summer, and maintain optimum room temperature.*
*A large proportion of the heat increasing far-red light is reflected.
The Transmission Spectrum chart of VULCAN Polycarbonate Pearly RED and Pearly GREEN

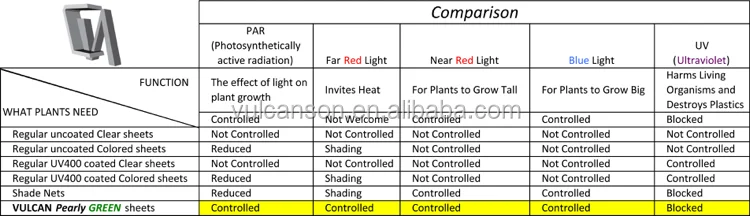

Pearly GREEN compared with sheets using different coating methods.
VULCAN Polycarbonate Pearly GREEN sheet has a Lilac / Greenish Hue, and creates a significant drop in temperature (Depending on the individual application conditions, rooms are up to 15°c cooler compared to non-pigmented systems), owing to its ability to block harmful UV and IR rays. Since Pearly GREEN was specially designed for humans and living organisms, and focuses more on it's cooling abilities.
Pearly GREEN Master-Batch

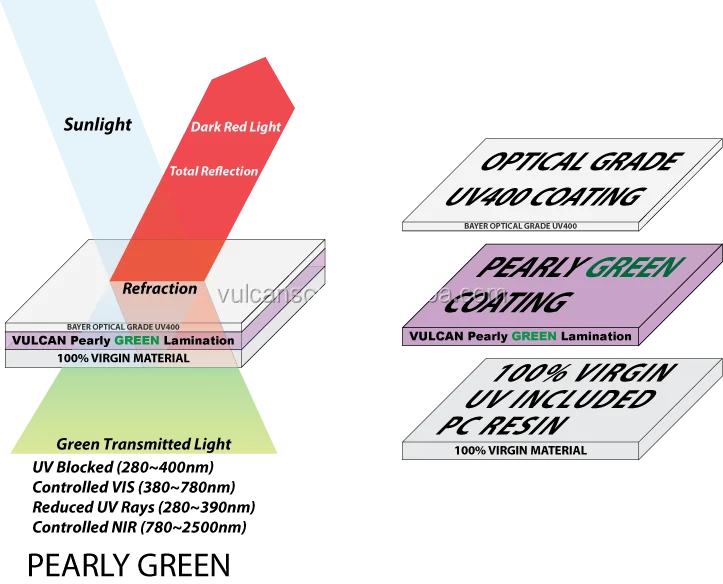

Pearly GREEN Composition
Material Properties
Base Material
100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at
least one year.
UV400 Coating
Co-Extruded Bayer Optical Grade UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of
harmful UV wavelengths between 290nm~400nm are blocked.
Product Strengths
With particle sizes ranging from 10~60μm, PEARLY GREEN is suitable for general-purpose infrared blocking applications.
Heat Reflective Properties:
Controlled NIR (780~2500nm):Temperature drop of 13°c depending on the relative temperature and humidity.
Light Transmission Rate:
Controlled VIS (380~780nm):Excellent shading Properties - 65% light transmission rate
High impact resistance
VULCAN PC sheets have 250 times the impact strength over glass and 10 times over FRP and Acrylic, which lowers the risk of breakage even when subjected to violent blows from heavy objects.
Fire Retardant
Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.
Design Flexibility
VULCAN Polycarbonate sheets can be tailored with different coatings to provide different light transmission rates and properties. Customers can choose between LiteGuide, Pearly RED, Pearly GREEN, Ti-Lite, and Valuview.
VULCAN Polycarbonate ROMA profile is one of the most widely used profiles worldwide. Its simple design requires only the most basic structure to install with minimum accessories required.
Applicable Areas
Agricultural Greenhouse
Garden Greenhouse
Flower Greenhouse
Multi-span Greenhouse
Singe-span Greenhouse
Greenhouse roofing
Greenhouse Walls
Aquaculture Greenhouse
Polycarbonate sound barriers
Polycarbonate Highway barriers
Polycarbonate Skylight
Polycarbonate Warehouse
Polycarbonate Roofing
Warehouse Roofing
Warehouse Skylight
Industrial Skylight
Interior decoration
Car Park
Glazing
Patios
PEARLY GREEN ROMA Greenhouse
VULCAN Polycarbonate Corrugated PEARLY GREEN ROMA sheet Greenhouse Project in Kuwait.
VULCAN Polycarbonate Sheet Quality Standards
VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).
Base Material
Co-Extruded Optical Grade UV400 Coating
Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)
Co-extruded on top of the UV included Base Material, our Optical Grade UV400 master-batch from Bayer Germany and processed by Clariant Swiss, blocks harmful UV rays from 280~400nm. With UV400 coating, VULCAN Polycarbonate sheets are able to last 10 years or more.
Machinery
We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.
Log onto our Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.
Our Services
VULCAN Polycarbonate Sheets can be made to order and cut to width and length as per customer
request. Any specification of either profile within their respective production range on the Profile Table listed above can be manufactured.
Minimum Order Quantity is for each color/material/profile is approx. 6000 square meters or approx. 5 tons in total weight.
Warranty
All VULCAN Polycarbonate sheets are co-extruded with Bayer Optical Grade UV400 coating and warranted for 10yrs under normal circumstances*.
*Warranty details are listed on our online Installation Manual .tw/download/VP%20Corrugated%20Sheet%20Installation%20Instructions.pdf, failure to comply shall void warranty.
Who We Are
VULCAN PLASTICS was established in 2007 with the goal of exporting Polycarbonate Sheets of the highest level. With steady progress, we obtained ISO 9001 Certification in the year 2008.
Starting from 1991, we have established a strong foothold in the Polycarbonate Sheet Manufacturing Industry in Taiwan. Following market trends closely and constantly in pursuit of quality and perfection, we continue to develop high-class, multi-functional Polycarbonate Sheets to satisfy customer expectations.
We are now in pursuit of a higher goal, and aim to expand our sales throughout the globe.
Through extensive testing, we have seen what the sun and excessive heat does to a poor product. Vulcan uses only first class, non-recycled material to ensure the lifespan of all our products, which in turn ensures the longlivity of your merchandise.
We are also the first Polycarbonate manufacturer in Asia to incorporate Class 5000 clean rooms for our extrusion lines. (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).
Website
Visit our website .tw for more information about us and our products.
E-Catalogue
Download our e-catalogue at .tw/download/VULCAN%20Polycarbonate%20Sheets%20Catalogue.PDF
Youtube Channel
/user/VULCANPLASTICSTW for a brief tour of our factory.
We will be more than happy to assist you in choosing the right VULCAN Polycarbonate sheet for your application.
