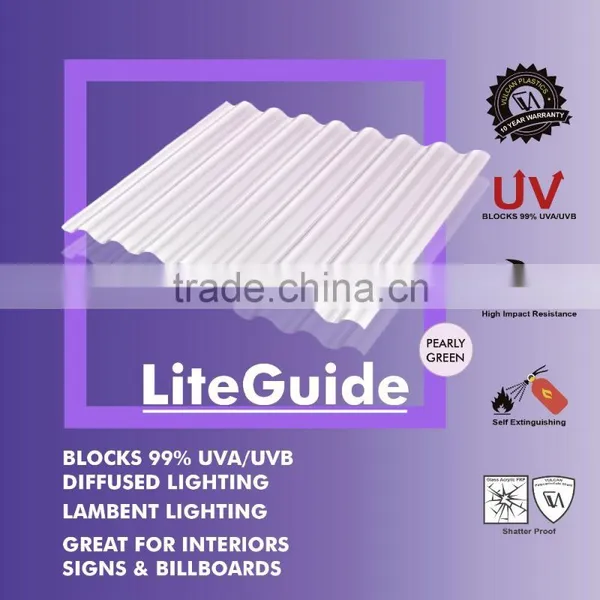

UV Coated translucent Corrugated Plastic Polycarbonate sheet (LiteGuide ROMA)

LiteGuide Technology: Soft and Dispersed Lighting

VULCAN LiteGuide uses Optical grade UV400 resin imported from Bayer Germany, which is identical to materials used on high-end LED TV panels.  Only one small ray of light is needed to light up the entire sheet, which suits areas with less sunshine or lighting.

LiteGuide Material

• 100% Virgin Bayer Optical Grade resin used on LED flat screens, providing maximum clarity and lifespan for your sheets.

LiteGuide Technology

• LiteGuide technology softens and disperses light evenly, which suits plants and flowers, which burns when encountering direct sunlight and is best avoided. LiteGuide sheets are also suitable for Signs and Billboards, which provides good aesthetics.

Light Transmission Rate:

• Excellent Light Transmission Rate - 88% visible light transmission.

Production Method

• Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)

ROMA (76/18)

VULCAN Polycarbonate Corrugated Valuview ROMA (76/18) profile sheets are the most sought of product of the VULCAN corrugated sheets family. Used extensively in agricultural greenhouse projects throughout the globe, our Valuview ROMA (76/18) survives the most demanding conditions.

  Specifications

• Profile: Polycarbonate ROMA (76/18) Medium Circular Corrugated
• Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
• UV Coating: Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
• Standard Colors: Clear, Bronze, Blue, Green, Opal.
• Thickness: 0.6mm~2.0mm
• Width: 670mm~1060mm
• Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
• Warranty: 10 years. (5 for yellowing, 10 for usage

Product Strengths

Base Material

• 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.

UV400 Coating

• Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.



Production Method

• Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)


Light Transmission Rate:

• For projects seeking optimal price and value and which requires direct light projection.
  • Valuview Clear: 88%

High impact resistance

• 250 times the impact strength over glass and 10 times over FRP and Acrylic.

Fire Retardant

• Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.

Design Flexibility

VULCAN Polycarbonate sheets can be tailored with different coatings to provide different light transmission rates and properties.

Quality Standards

VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).

Machinery

We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.

Log onto our Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.

 Applicable Areas

Agricultural Greenhouse

Garden Greenhouse

Flower Greenhouse

Multi-span Greenhouse

Singe-span Greenhouse

Greenhouse roofing

Greenhouse Walls

Aquaculture Greenhouse

Polycarbonate sound barriers

Polycarbonate Highway barriers

Polycarbonate Skylight

Polycarbonate Warehouse

Polycarbonate Roofing

Warehouse Roofing

Warehouse Skylight

Industrial Skylight

Interior decoration

Car Park

Glazing

Patios

VULCAN Polycarbonate Sheets can be made to order and cut to length as per customer request.  Any specification of either profile within their respetive production range on the Profile Table above can be produced.

Minimum Order Quantity is 10 tons per profile.

All sheets are co-extruded with SD Polyca Optical Grade UV400 coating and are warranted for 10yrs under normal circumstances*.

*Warranty details are listed on our online Installation Manual .tw/download/VP%20Corrugated%20Sheet%20Installation%20Instructions.pdf, failure to comply shall void warranty.

 VULCAN PLASTICS was established in 2007 with the goal of exporting Polycarbonate Sheets of the highest level. With steady progress, we obtained ISO 9001 Certification in the year 2008.

Starting from 1991, we have established a strong foothold in the Polycarbonate Sheet Manufacturing Industry in Taiwan. Following market trends closely and constantly in pursuit of quality and perfection, we continue to develop high-class, multi-functional Polycarbonate Sheets to satisfy customer expectations.

We are now in pursuit of a higher goal, and aim to expand our sales throughout the globe.

Through extensive testing, we have seen what the sun and excessive heat does to a poor product. Vulcan uses only first class, non-recycled material to ensure the lifespan of all our products, which in turn ensures the longlivity of your merchandise.

We are also the first Polycarbonate manufacturer in Asia to incorporate Class 5000 clean rooms for our extrusion lines. (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).

For More information, visit our

Website: .tw

E-Catalogue: .tw/download/VULCAN%20Polycarbonate%20Sheets%20Catalogue.PDF

Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.

We will be more than happy to assist you in choosing the right VULCAN Polycarbonate sheet for your application.
