cold rolled hot dipped galvanized z shape steel purlin
- xingang tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | erf | |
| Model Number | Q235, Q345, Q195 ETC. | Material | Steel |
Product Description
cold rolled hot dipped galvanized z shape steel purlin
Our common size range:30*20*5mm~250*75*3mm,thickness range:0.6mm~6.0mm(Q235) 0.6MM~4.0MM(Q345),or as per customer’s required.

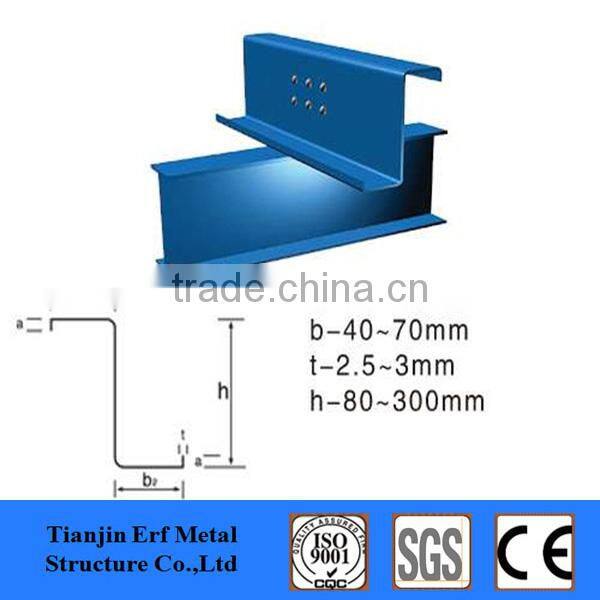

Specification | Size (cm) | moment of inertia (cm) | section modulus (cm) | |||||
h×b×c×t | h | b | c | t | lx | ly | wx | wy |
100×40×20×2.0 | 100 | 40 | 20 | 2.0 | 60.62 | 17.2 | 12.12 | 40 |
100×40×20×2.5 | 100 | 40 | 20 | 2.5 | 73.05 | 20.32 | 14.61 | 55 |
120×50×20×2.0 | 120 | 50 | 20 | 2.0 | 107.77 | 30.51 | 17.96 | 67 |
120×50×20×2.5 | 120 | 50 | 20 | 2.5 | 130.7 | 36.36 | 21.78 | 77 |
120×50×20×3.0 | 120 | 50 | 20 | 3.0 | 152.11 | 41.55 | 25.35 | 86 |
140×50×20×2.5 | 140 | 50 | 20 | 2.5 | 188.5 | 36.36 | 26.93 | 7.458 |
140×50×20×3 | 140 | 50 | 20 | 3 | 219.8 | 41.55 | 31.47 | 8.567 |
160×60×20×2.5 | 160 | 60 | 20 | 2.5 | 290.3 | 58.78 | 36.29 | 10.00 |
160×70×20×2.5 | 160 | 70 | 20 | 2.5 | 321.4 | 88.57 | 40.17 | 12.88 |
160×70×20×3.0 | 160 | 70 | 20 | 3.0 | 376.9 | 102.3 | 47.11 | 17.94 |
180×70×20×2.5 | 180 | 70 | 20 | 2.5 | 422.9 | 88.58 | 46.99 | 12.88 |
180×70×20×3.0 | 180 | 70 | 20 | 3.0 | 496.7 | 102.3 | 55.19 | 14.94 |
200×70×20×2.5 | 200 | 70 | 20 | 2.5 | 541.5 | 88.58 | 54.15 | 12.88 |
230×75×25×3 | 230 | 75 | 25 | 3 | 951.37 | 138.9 | 82.73 | 18.90 |
250×75×25×3 | 250 | 75 | 25 | 3 | 1160.1 | 138.9 | 92.8 | 18.90 |

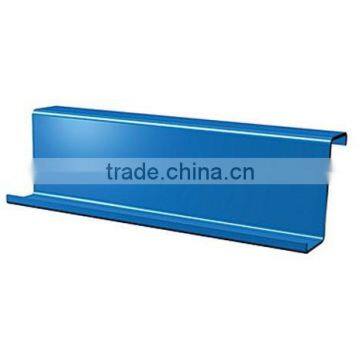

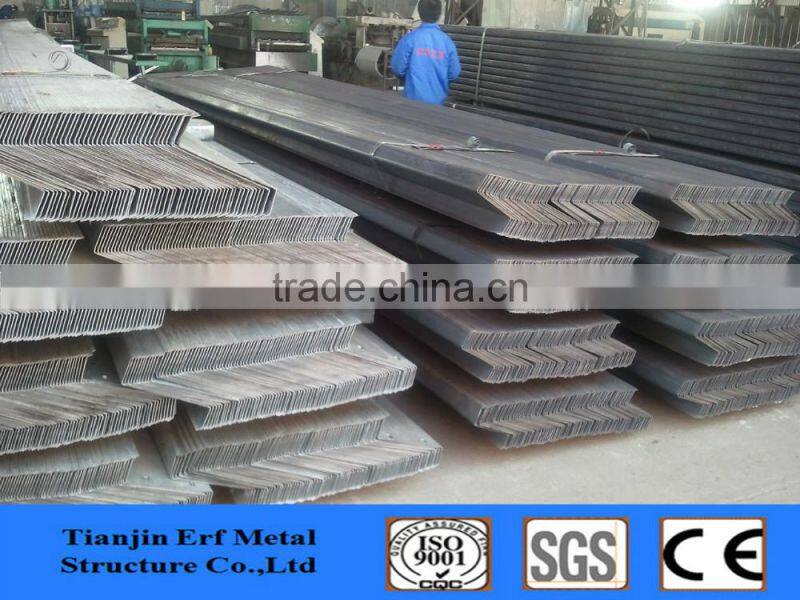

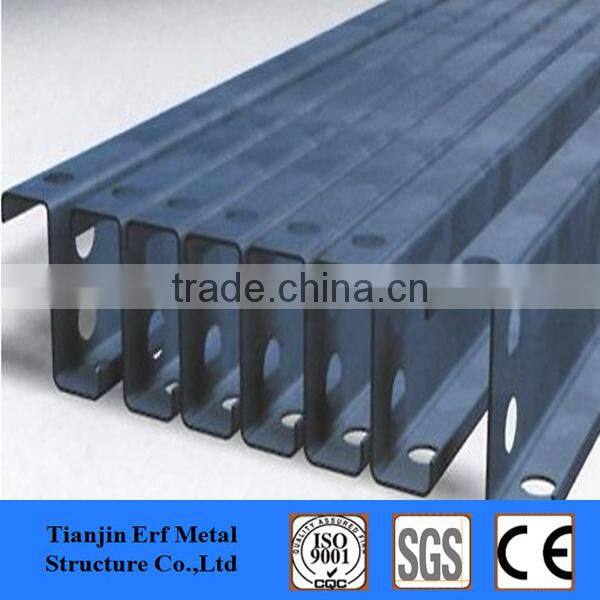

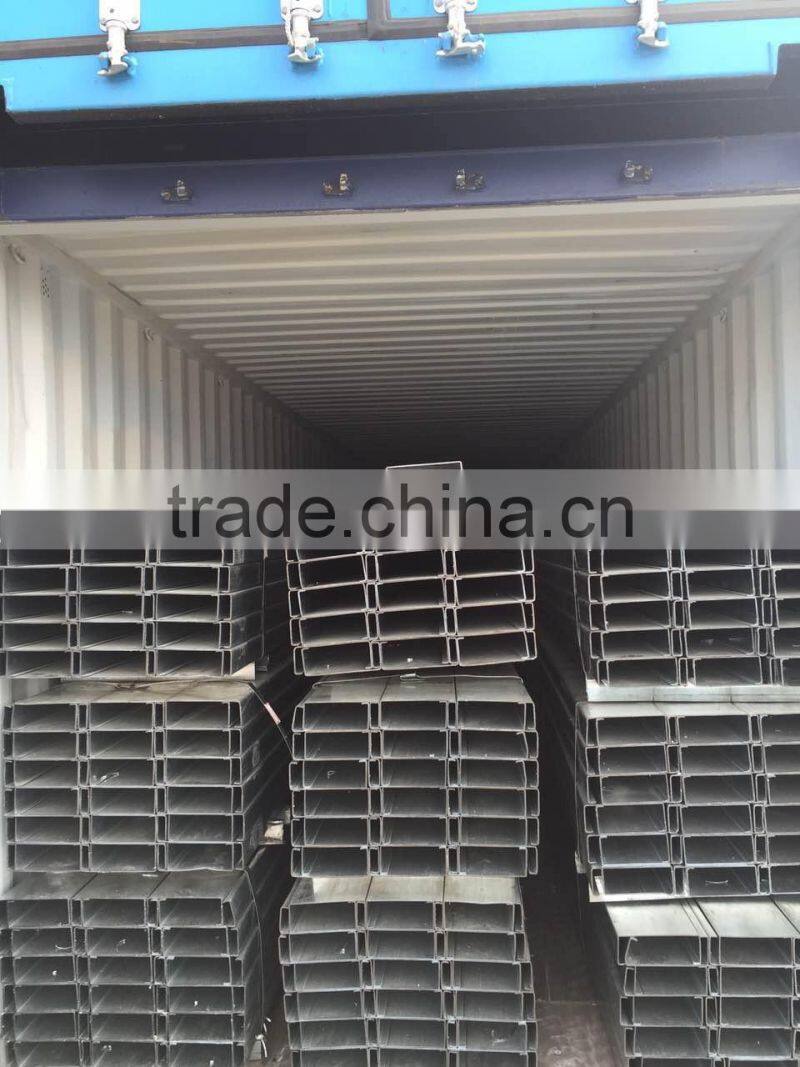

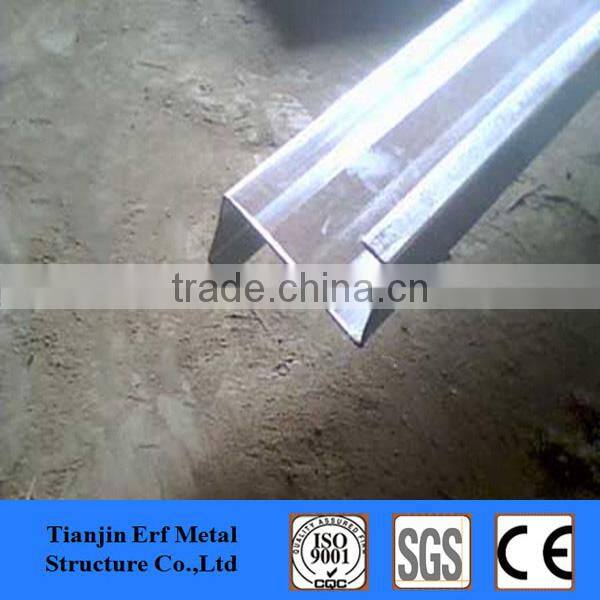

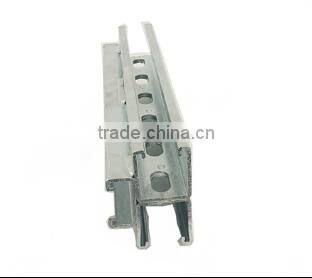

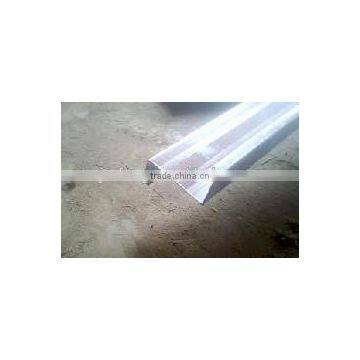

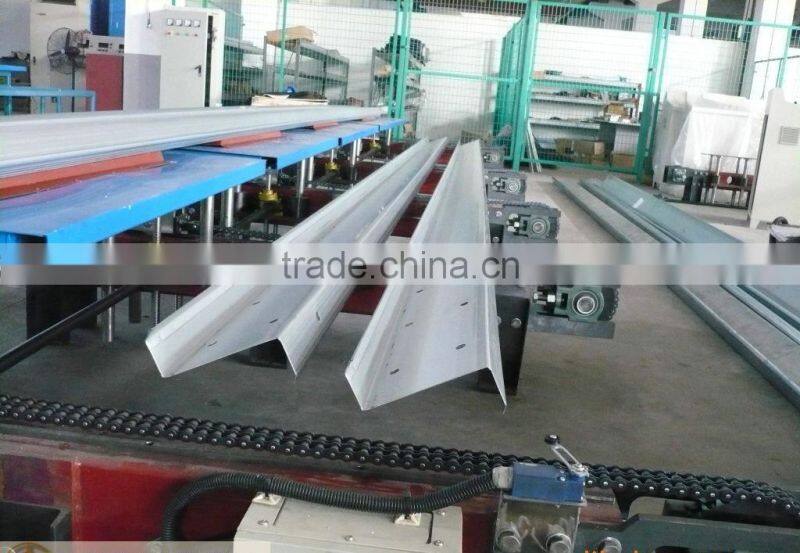

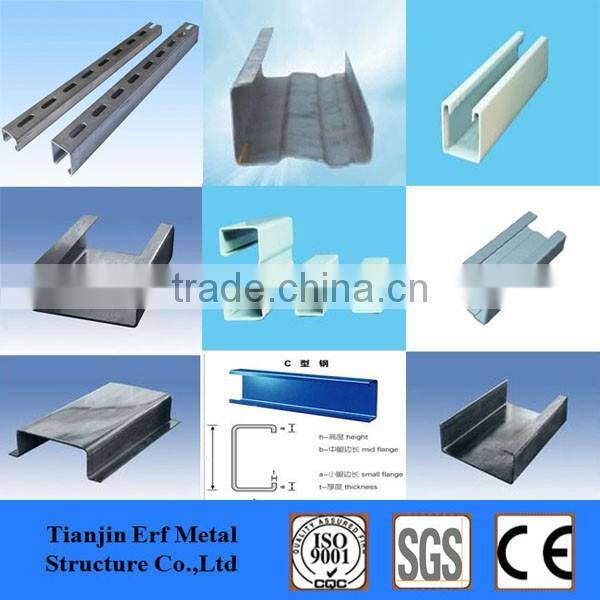

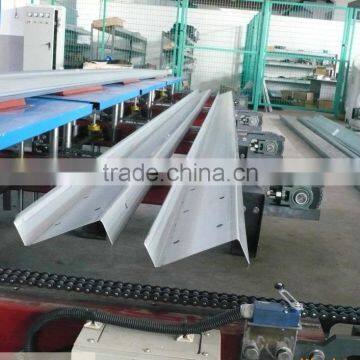

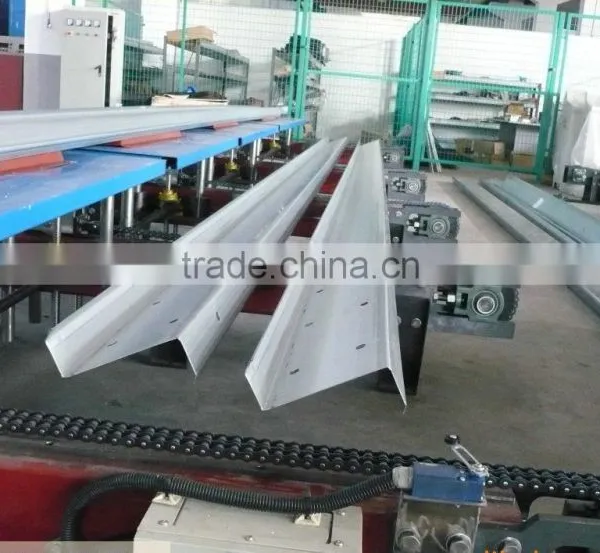

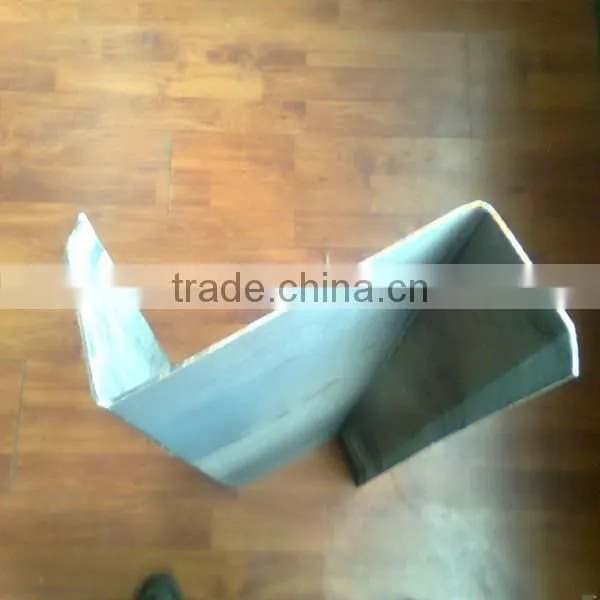

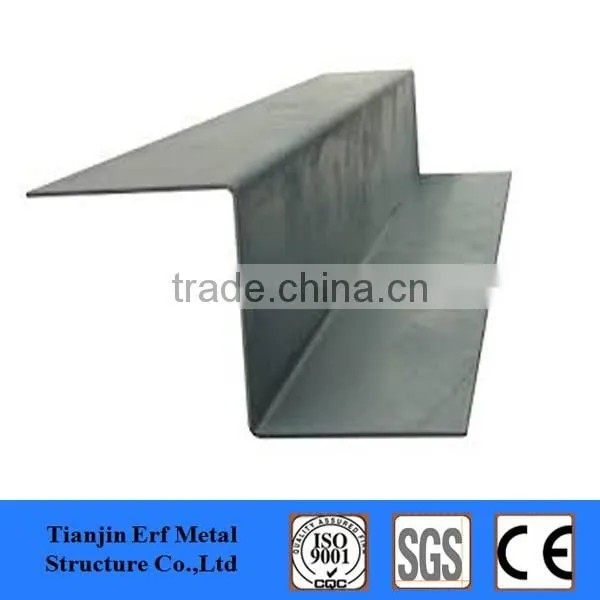

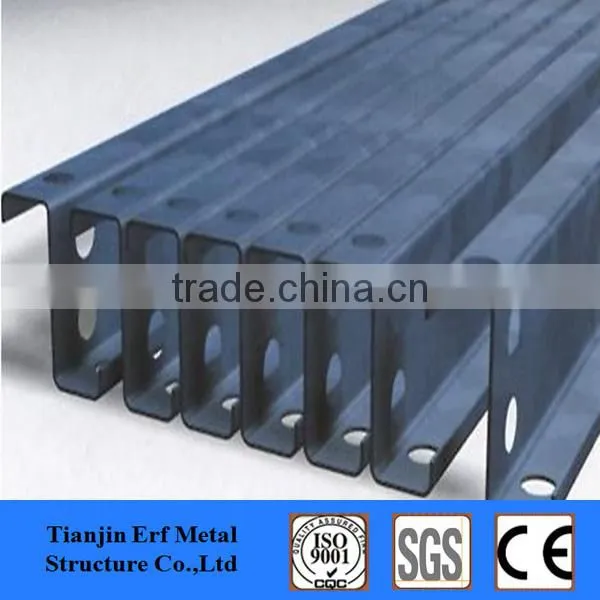

PRODUCT PICTURES
We specialized in producing hot &cold bending steel, cold bend profiled steel,such as
“C/Z/U/H/T/I”type channel,double C&U type channel, solar photovoltaic stents, steel bridge support,hat shaped channel, light steel keel, small profile steel,special profile steel,steel door frame; Hot dip galvanized steel structure; metal wire rope , rolled plate kaiping; color coated Steel plate, steel coil, equal angle bar, unequal angle bar, deformed bar, flat bar, chequered plate, steel pipe, rectangular tube,square tube, round bar, seamless pipes and so on.
