Home > Products > Profile Steel > Galvanized light weight c steel purlin/roll rim

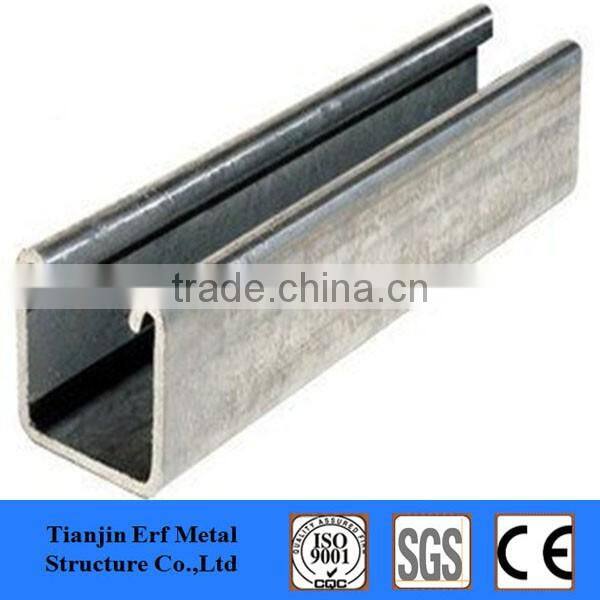

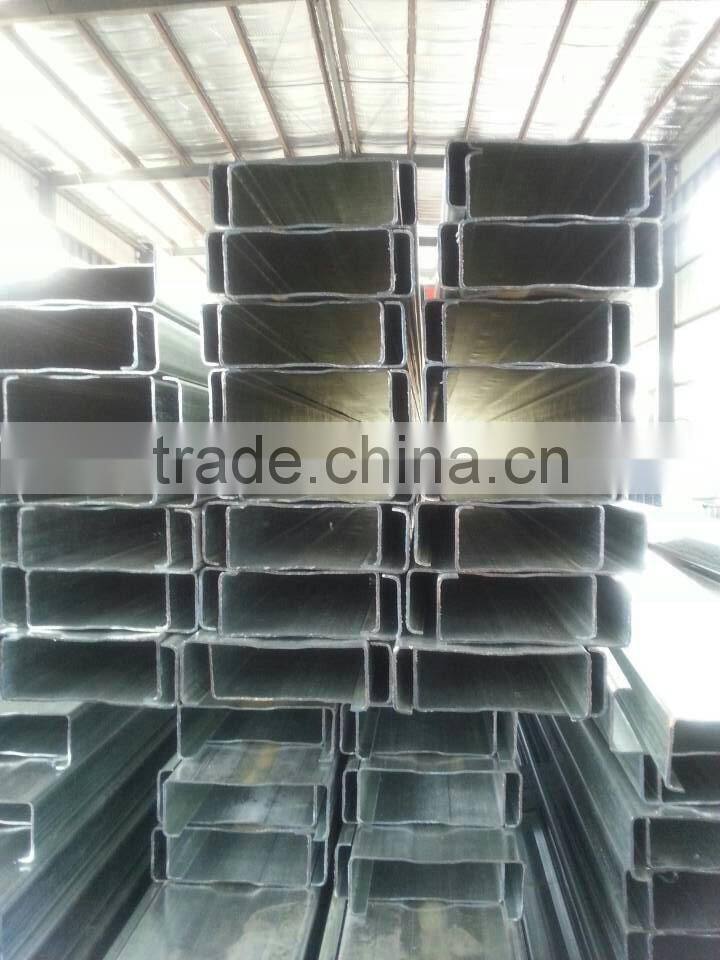

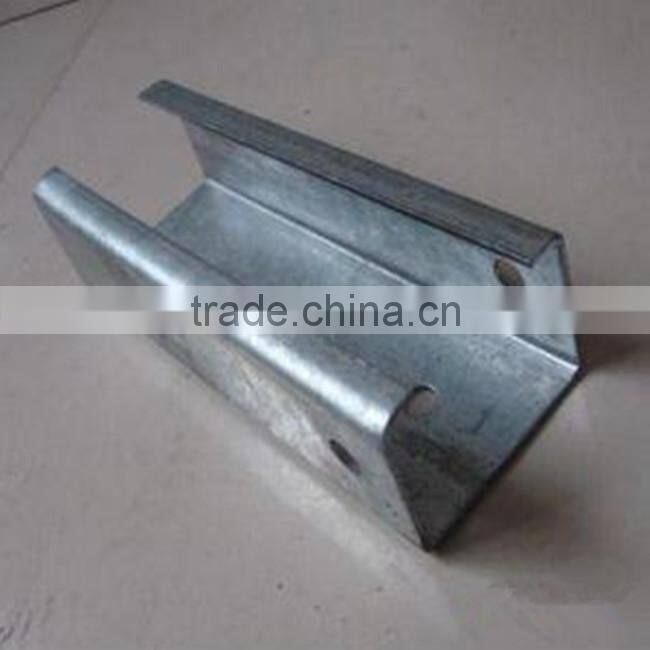

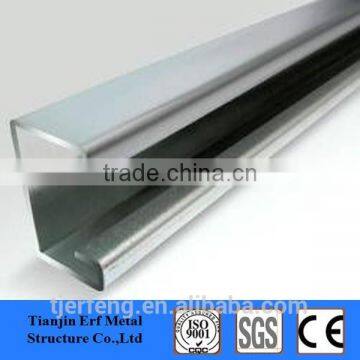

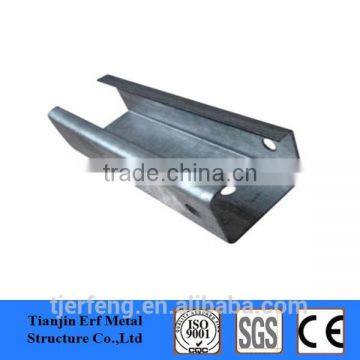

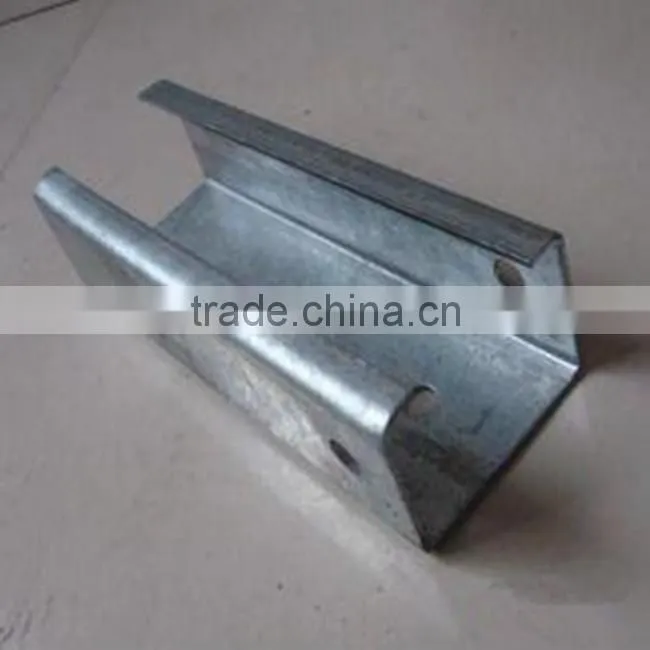

Galvanized light weight c steel purlin/roll rim
- 400 Ton / Tons per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- Production of hot-dip galvanized gantry frame for expressway
- Highway gantry frame production custom hot-dip galvanized steel structure
- Hot-dip galvanized steel structure highway sign pole gantry for highway
- Galvanized steel structure has strong bearing capacity Expressway steel structure
- Highway gantry frame safe and durable galvanized steel structure
- Expressway steel structure Railway Bridge Girder Launching Beam Launcher Crane
Product Details
Standard: | AISI, ASTM, BS, DIN, GB, JIS | Grade: | Q235,Q345,Q195 | Dimensions: | as per requirement |
Brand Name: | erf | Model Number: | as per requirement | Type: | Heavy |
Application: | Structural Roofing |
Product Description
c channel is produced by hot steel coil through cold bending, Thickness is very thin, and the weight is very light, but it has high strength. Compared with traditional channel, the same intensity can save 30%Materials .The application of C shape steel is very extensive. It can be used as purlin, also can be combined into the light plane.
C purlin are widely used in steel structure, building of purlin, wall beam, also can combine into a lightweight roof, bracket and other construction.In addition, can also be used for mechanical column, beam of light manufacturing and arm, etc.

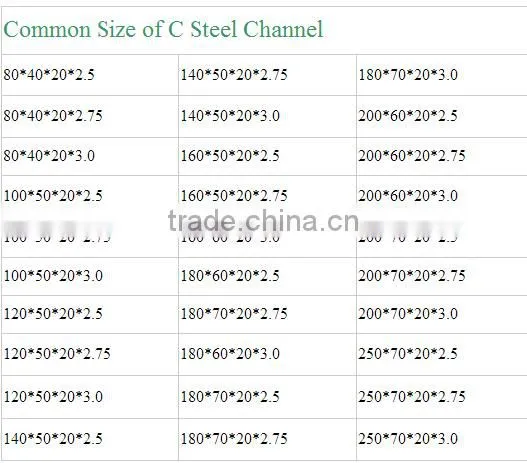

Common size range:
30*30*5mm to 250*80*20mm,thickness range:0.6~8.0mm(Q235),0.6~6.0mm(Q345)
If any other size,please feel free to contact us.
Material
1. Steel
2. Carbon Steel
4. Galvanized steel sheet
6. Electric galvanize
7. Hot-dipped galvanize
Application
1. It’s suitable for the electric power iron tower
2. C section purline to increase the strength of roof and wall
3. steel structure work shop
4. Glass card slot
5. the highway pillar
6. Automobile chassis
7. Solar Stand
8. Bridge frame
ASTM Channels
Specification | Standard Sectional Dimension (mm) | Web thickness (mm) | Flange thickness (mm) | Weight |
C4*4.5 | 102*40 | 3.20 | 7.50 | 6.70 |
C5*6.7 | 127*44 | 4.80 | 8.10 | 10.40 |
C6*8.2 | 152*48 | 5.10 | 8.70 | 12.22 |
C6*10.5 | 152*51 | 8.00 | 8.70 | 15.64 |
C7*9.8 | 178*53 | 5.30 | 9.30 | 14.60 |
C8*11.5 | 203*57 | 5.60 | 9.90 | 17.10 |
C10*15.3 | 254*65 | 6.10 | 11.10 | 22.80 |
C10*20 | 254*69 | 9.60 | 11.10 | 30.00 |
C10*25 | 254*73 | 13.40 | 11.10 | 37.00 |
C10*30 | 254*76 | 17.10 | 11.10 | 45.00 |
C12*20.7 | 305*74 | 7.20 | 12.70 | 30.80 |
C12*25 | 305*77 | 9.80 | 12.70 | 37.00 |
C12*30 | 305*80 | 13.0 | 12.70 | 45.00 |
Products:
We specialized in producing hot &cold bending steel, cold bend profiled steel,such as
“C/Z/U/H/T/I”type channel,double C&U type channel, solar photovoltaic stents, steel bridge support,hat shaped channel, light steel keel, small profile steel,special profile steel,steel door frame; Hot dip galvanized steel structure; metal wire rope , rolled plate kaiping; color coated Steel plate, steel coil, equal angle bar, unequal angle bar, deformed bar, flat bar, chequered plate, steel pipe, rectangular tube,square tube, round bar, seamless pipes and so on. our company is certificated by iso9001,CE,SGS. our products were exported to Germany, Thailand, Australia, USA, Brazil, Italy, Korea, Japan, India, Pakistan, Malaysia and so on countries for important projects.
.Along with the people of the city construction and construction quality requirement is increasing day by day, the steel structure as a highly industrialized that are widely used in airports, stadiums, station, exhibition halls, clubs and other public buildings, the novel structure form, the model is bold and rich tension, added a lot of bright spots for the city.Steel structure system is due to its light weight, easy installation, short construction period, good seismic performance, investment recovery faster, less environmental pollution and other comprehensive advantages, and widely used in factories, warehouses, office buildings, high-rise residential and other industrial and civil buildings.
1. Are you manufacturer?
Yes. We are specialized in producing many kinds of profile structure and have many years experience.
2. Do you have any certifications?
Yes, with ISO 9000 & CE certificate, our products are of high quality and we have professional engineers and staff team.
3. Which field are your products applied to?
Our products are widely used into buildings, railways, bridges, stadiums, port, hull assort ,offshore oil drilling platform, wind tower drum and so on light and heavy steel structure etc
If you have any questions about our products,please feel free to contact us,we will be much appreciate to serve you.Thank you for choosing Erf!
