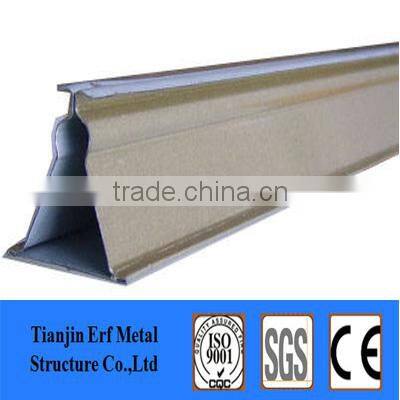

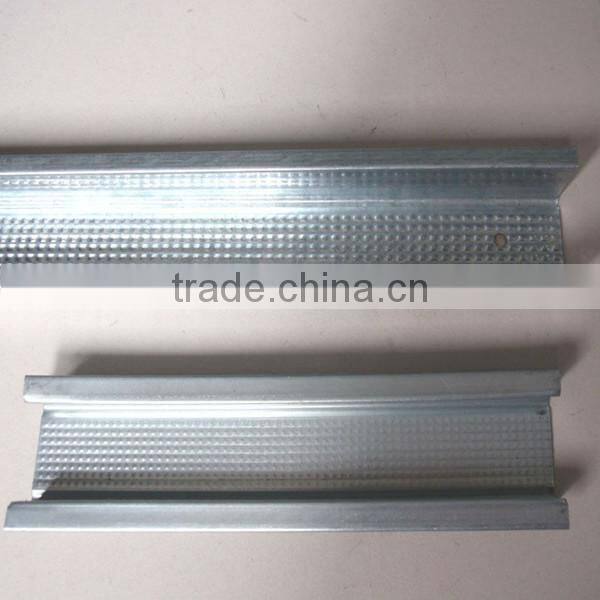

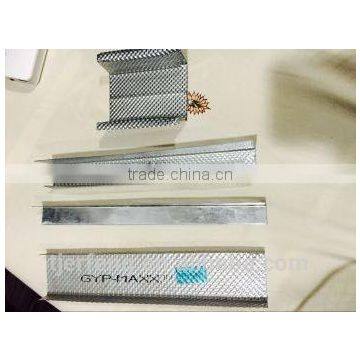

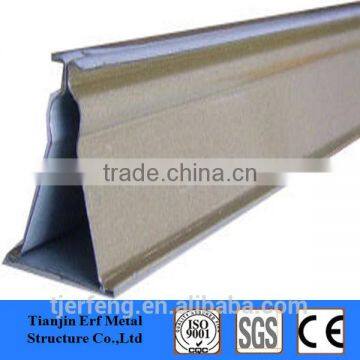

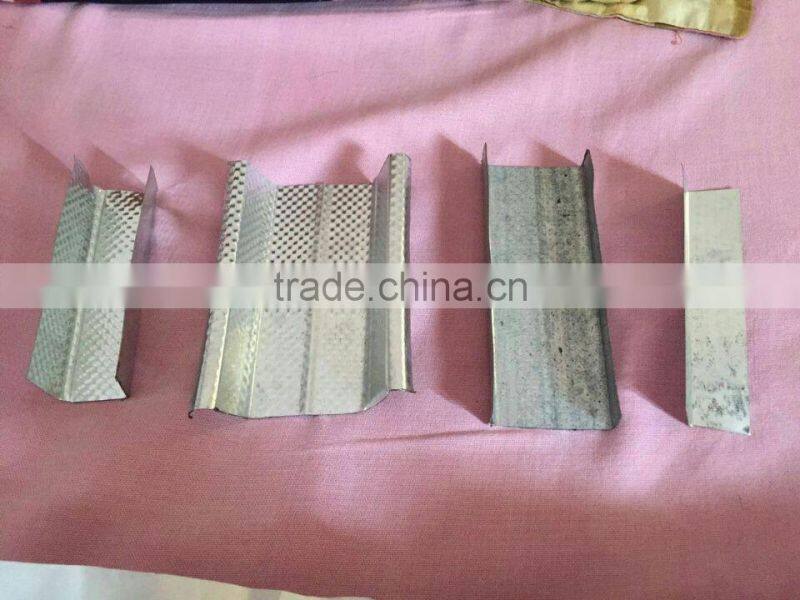

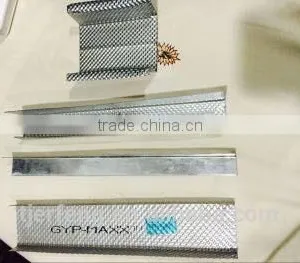

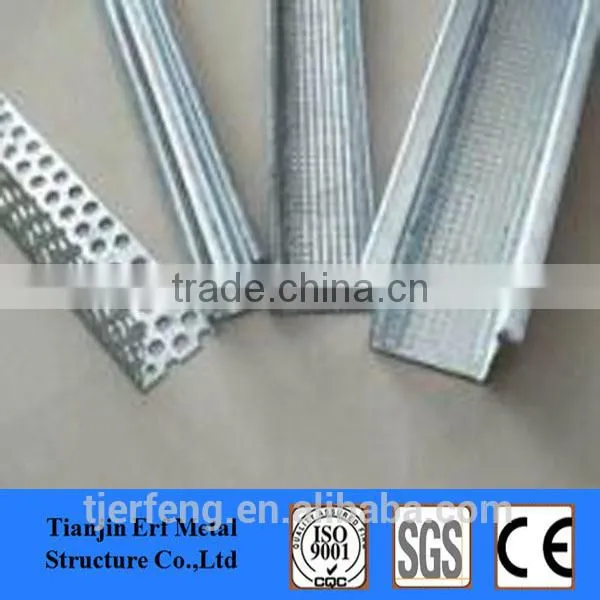

Hot Dipped Galvanized Drywall Metal Stud and Track
common size as below,the size can be customized
Item | Thickness | Height | Width | Length |
Metal Stud (C Stud) | 0.4 / 0.45 / 0.5 / 0.6 mm | 35 mm | 50 mm | 3000 mm |
0.4 / 0.5 / 0.6 mm | 40 mm | 3000 mm | ||
0.5 / 0.6 mm | 50 mm | 3000 mm | ||
0.4 / 0.5 / 0.6 mm | 35 mm | 65 mm | 3000 mm | |
0.4 / 0.5 / 0.6 mm | 35 mm | 70 mm | 3000 mm | |
0.4 / 0.5 / 0.6 mm | 40 mm | 70 mm | 3000 mm | |
0.4 / 0.45 / 0.5 mm | 35 mm | 75 mm | 3000 mm | |
0.45 / 0.5 / 0.6 mm | 45 mm | 75 mm | 3000 mm | |
0.5 / 0.6 / 0.8 mm | 50 mm | 75 mm | 3000 mm | |
0.5 / 0.6 / 0.8 / 1.0 mm | 50 mm | 100 mm | 3000 mm | |
0.8 / 1.0 mm | 50 mm | 120 mm | 3000 mm | |
Metal Track (U Track) | 0.4 / 0.5/ 0.6 mm | 30 mm | 50 mm | 3000 mm |
0.4 / 0.45 / 0.5/ 0.6 mm | 40 mm | 3000 mm | ||
0.4 / 0.5 / 0.6 mm | 30 mm | 65 mm | 3000 mm | |
0.4 / 0.5 / 0.6 mm | 30 mm | 70 mm | 3000 mm | |
0.4 / 0.5 / 0.6 mm | 35 mm | 3000 mm | ||
0.4 / 0.45 / 0.5 mm | 25 mm | 75 mm | 3000 mm | |
0.45 / 0.5 / 0.6 mm | 35 mm | 75 mm | 3000 mm | |
0.5 / 0.6 / 0.8 mm | 40 mm | 75 mm | 3000 mm | |
0.5 / 0.6 / 0.8 / 1.0 mm | 40 mm | 100 mm | 3000 mm | |
0.8 / 1.0 mm | 40 mm | 120 mm | 3000 mm | |
Furring Channel | 0.4 / 0.45 / 0.5 mm | 22 mm | 35 mm | 3000 mm |
Main Channel (Main Runner) | 0.6 / 0.7 / 0.8 / 1.0 / 1.2 mm | 10 mm | 38 mm | 3000 mm |
0.5 / 0.8 / 1.0 / 1.2 mm | 12 mm | 3000 mm | ||
0.6 / 0.7 / 0.8 / 1.0 / 1.2 mm | 14 mm | 50 mm | 3000 mm | |
0.8 / 1.0 / 1.2 mm | 15 mm | 3000 mm | ||
0.8 / 1.0 / 1.2 mm | 27 mm | 60 mm | 3000 mm | |
Cross Channel (Cross Runner) | 0.35 / 0.4 / 0.45 / 0.5 / 0.6 / 0.7 / 0.8 mm | 19 mm | 50 mm | 3000 mm |
0.4 / 0.45 / 0.5 / 0.6 mm | 27 mm | 60 mm | 3000 mm | |
Suspended Bar | 0.6 / 0.7 / 0.8 / 1.0 mm | 25 mm | 20 mm | 3000 mm |
0.6 / 0.7 / 0.8 / 1.0 mm | 28 mm | 20 mm | 3000 mm | |
0.6 / 0.7 / 0.8 / 1.0 mm | 32 mm | 20 mm | 3000 mm | |
Wall Angle (L Channel) | 0.4 / 0.45 / 0.5 mm | 25 mm | 25 mm | 3000 mm |
0.6 mm | 30 mm | 30 mm | 3000 mm | |
0.45 / 0.5 mm | 32 mm | 32 mm | 3000 mm | |
Corner Bead (Edge Bead) | 0.4 / 0.45 / 0.5 mm | 25 mm | 25 mm | 3000 mm |
0.45 mm | 30 mm | 30 mm | 3000 mm |
Advantage and feature:
1.Galvanized Zinc coating will protect the channel from being rust;
2.Flexibility of application makes each ceiling tile/plasterboard easily installed anddisconnected;
3.Size adjustability can easier to match your request;
4.High quality leads longer life span & higher strength;
5.Better function of dealing with both high tensile stress and blending stress.
6. Easy and fast for installation,time-saving

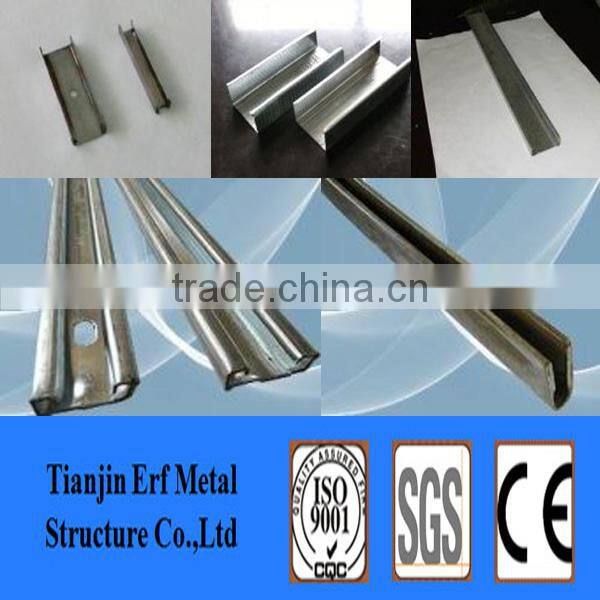

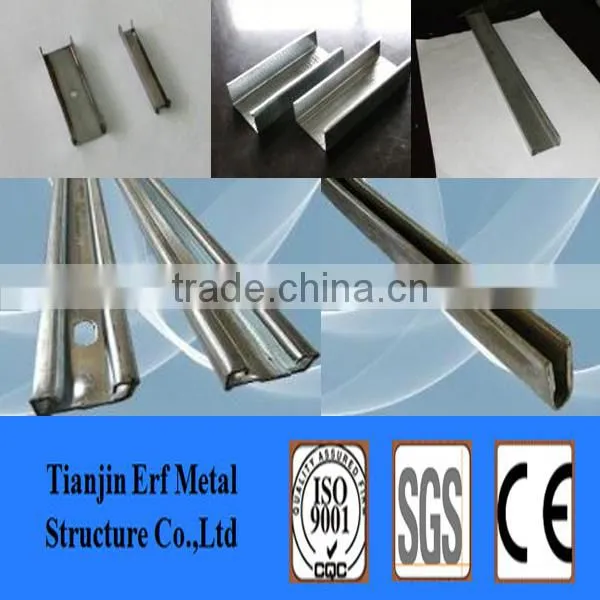

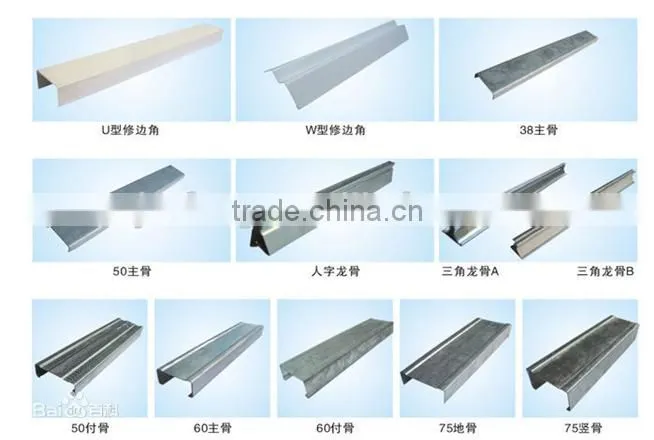

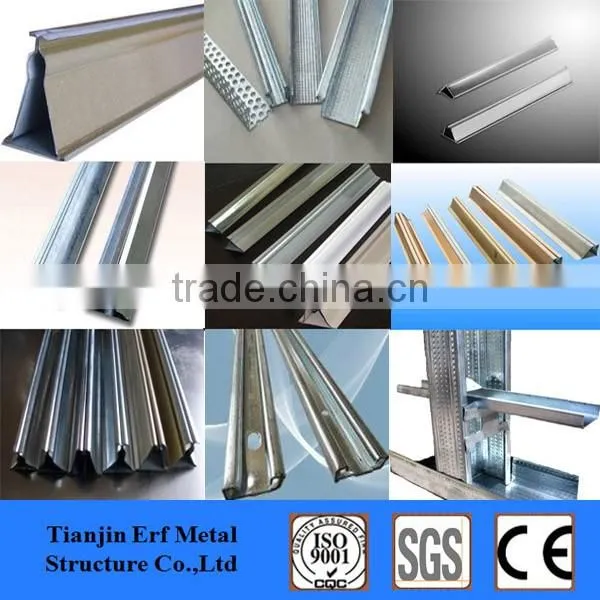

Product pictures

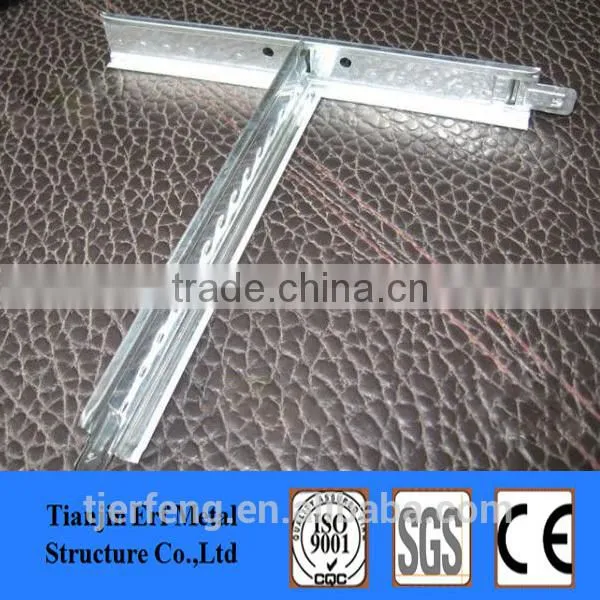

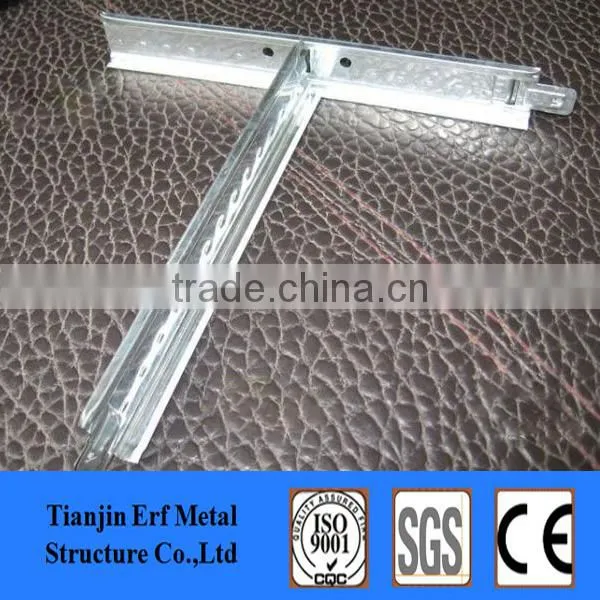

T type teel keel

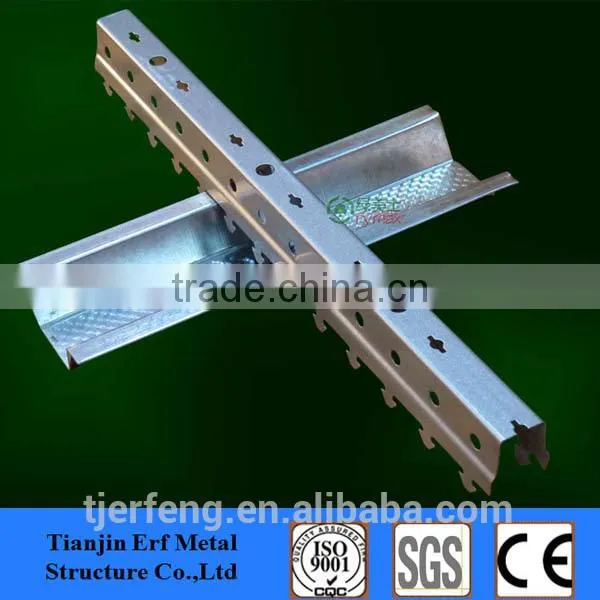

Cassette keel

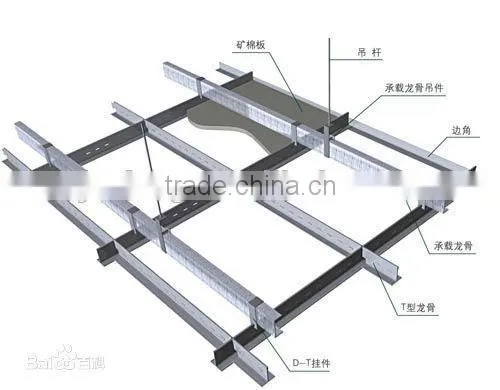

Ceiling Steel Keel
Deformed steel keel

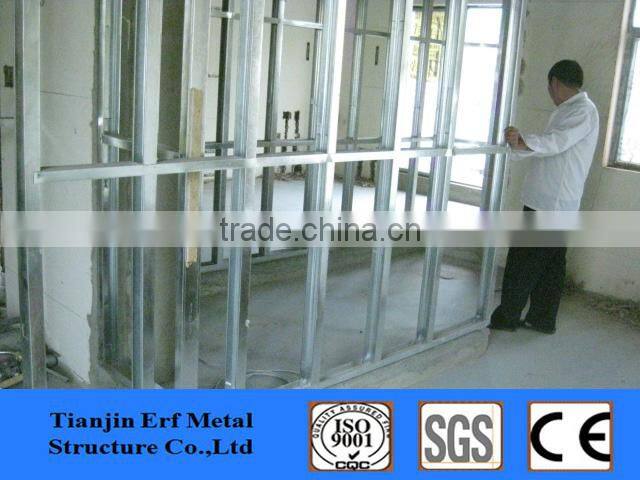

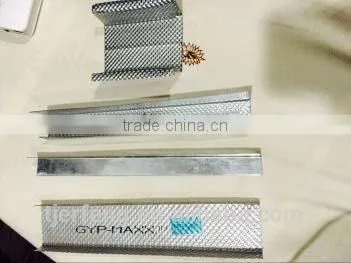

Metal stud partition steel keel

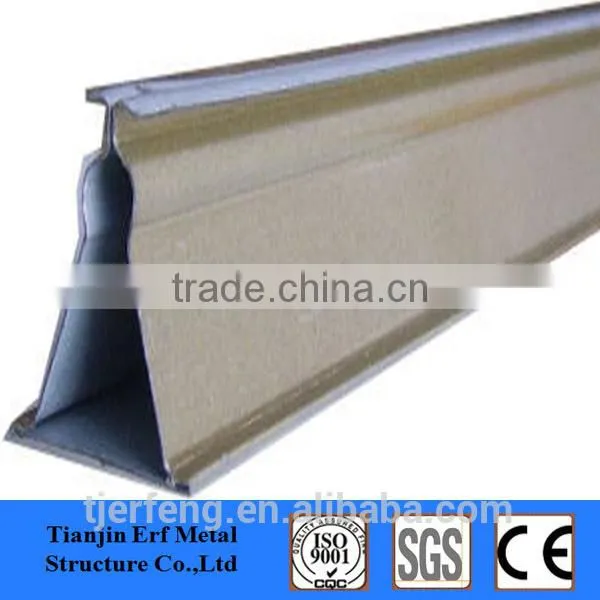

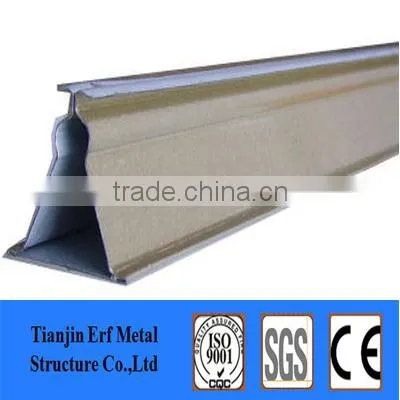

triangular light steel keel
