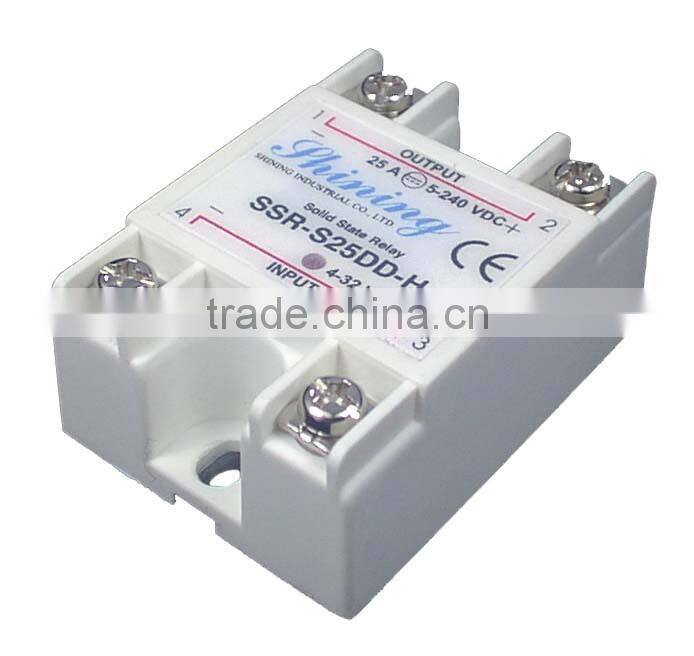

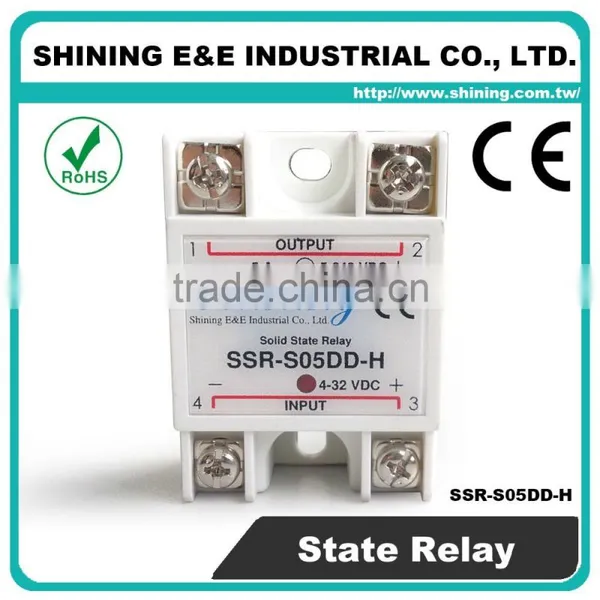

Help CenterSSR-S05DD-H Fotek Type Solid State DC to DC 5V 120V DC Power Relay
Related Products
-
SSR-S10DD-H Fotek Type DC Voltage Controlled 120V Solid State RelayNegotiableMOQ: 100 Pieces -
SSR-S25DD-H For Heater DC DC Symbol 25A Input Solid State RelayNegotiableMOQ: 100 Pieces
-
SSR-T25AA-H Heat Sink Electrical 24V AC/AC 25A Three Phase RelayUS$ 10 - 20MOQ: 30 Pieces
-
SSR-T40AA CE Approved 40 Amp Equal To Fotek AC Three Phase SSRUS$ 30 - 60MOQ: 30 Pieces
-
SSR-T25AA SSR General Purpose AC 24V 240V 3-Phase Solid State RelayUS$ 10 - 20MOQ: 30 Pieces
SSR-S05DD-H Fotek Type Solid State DC to DC 5V 120V DC Power Relay
• Item number: SSR-S05DD-H
• Output Load Current: 5A
• Output Load Voltage Range: 5~120VDC
• Operate InputCurrent: 4~32VDC
• 600V Transient Capability
• Low EMI/EFI & Surge by photocouple trigger control.
• High Isolation over than 50MΩ/500VDC
• Panel Mounting
• LED Input status Indicator

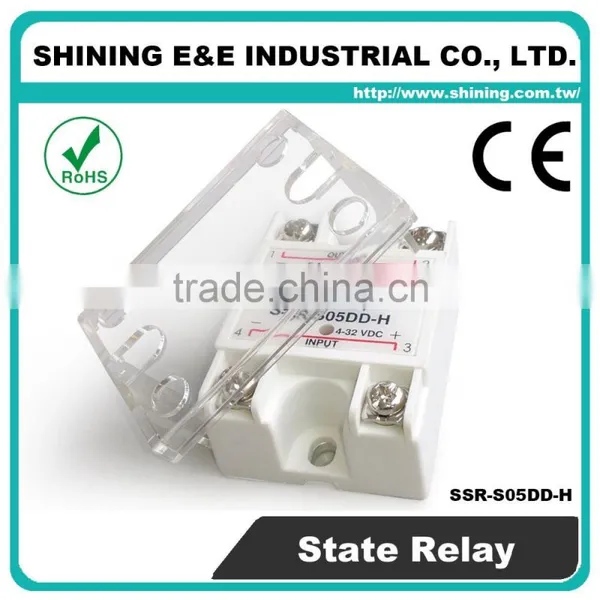

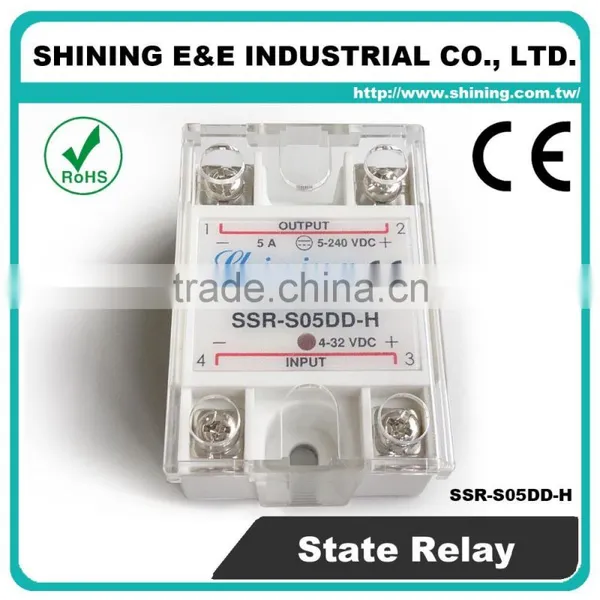

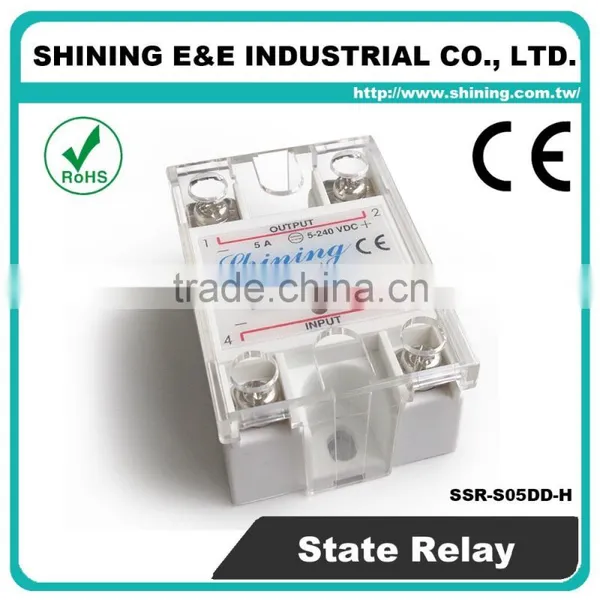

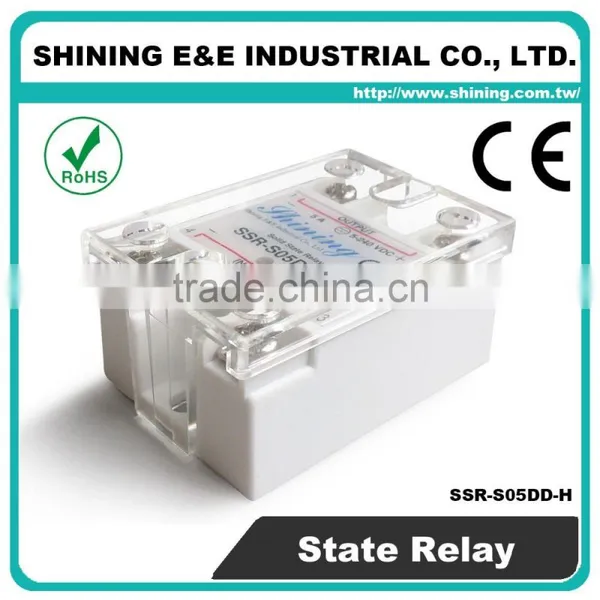

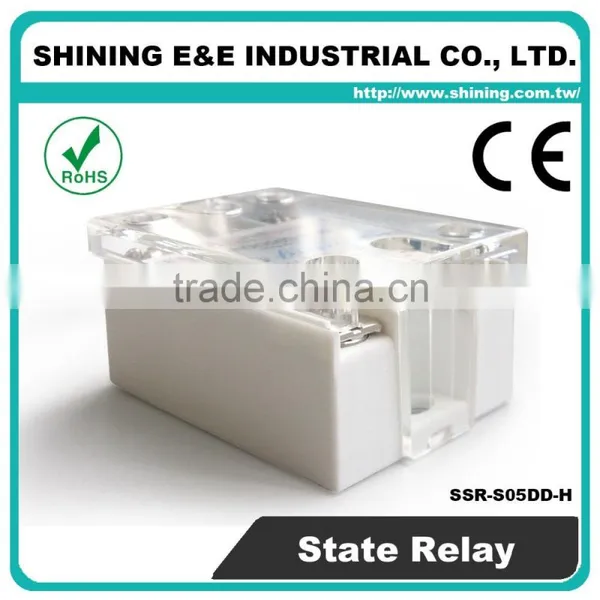

• Integrated with removable tinger-proof cover SSR-S-CV
• Fast reaction, high reliability and long life
• No switching speaks, no noise, and no contact points.
• Excellent for switching control of switchboard panel, heaters, printers, machines, UPS
• Packing: 100pcs/ctn, N.W. :11.6kgs /carton
• Webpage: SSR SXXDD-H Series DC to DC Single Phase Solid State Relay
|
|
|
|
|
|
|
(Series Name or) |
SSR-S05DD-H |
SSR-S10DD-H |
SSR-S25DD-H |
|||
| Specifications/Dimensions | ||||||
| L x W x H | 57 x 42 x 24 mm | 57 x 42 x 24 mm | 57 x 42 x 24 mm | |||
| Ref. L1 x W1 | 43.8 x 27 mm | 43.8 x 27 mm | 43.8 x 27 mm | |||
| Ref. L2 x W2 | 46.3 x 12 mm | 46.3 x 12 mm | 46.3 x 12 mm | |||
| Ref. Diameter (Ø) | 5 mm | 5 mm | 5 mm | |||
| Electrical Specifications | ||||||
| Max. Load Current | 5 A |
10 A |
25 A |
|||
| Control Method | Photocouple | Photocouple | Photocouple | |||
| Input Operating Voltage | 4~32 VDC | 4~32 VDC | 4~32 VDC | |||
| Input Current | 20mA@ 32 VDC | 20mA@ 32 VDC | 20mA@ 32 VDC | |||
| Must Turn Off Voltage | 0~2.0 VDC | 0~2.0 VDC | 0~2.0 VDC | |||
| Output Load Voltage Range | 5~120 VDC | 5~120 VDC | 5~120 VDC | |||
| Max. One Circle Peak Surge | N/A | N/A | N/A | |||
| Min. Blocking Voltage | 400 V | 400 V | 400 V | |||
| Turn On & Turn Off Time | N/A | N/A | N/A | |||
| Isolate Impedance | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | |||
| Max. On-State Voltage Drop | 2 V / IC=8A | 2 V / IC=8A | 2 V / IC=8A | |||
| Materials | ||||||
Body Materials |
PBT |
|||||
| Color | White | |||||
Accessories & Parts |
||||||
| Protective Cover | SSR-S-CV (Optional) | |||||
| Heat Sink | HS-60XXX series (HS-60050, HS-60100, HS-60150, HS-60200) | |||||
| Approval & Certificate | CE | CE | CE | |||
