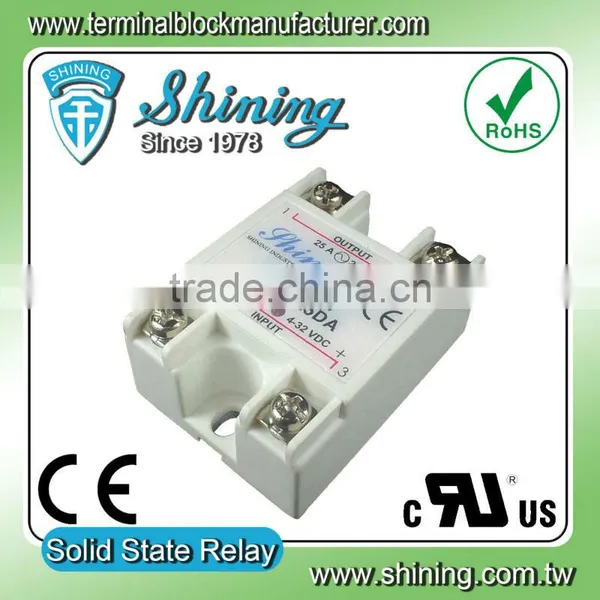

SSR-S25DA 25 Amp DC To AC Single Phase SSR Solid State Relay

Specifications

SSR-S25DA 25 Amp DC To AC Single Phase SSR Solid State Relay
1.Input Voltage: 4~32VDC
2.Load: 25A
3.Output Voltage: 24~280VAC

SSR-S25DA 25 Amp DC To AC Single Phase SSR Solid State Relay

• Item number: SSR-S25DA

• Output Load Current: 25A

• Output Load Voltage Range: 24~280VAC

• Operate InputCurrent: 4~32VDC

• 600V Transient Capability

• Low EMI/EFI & Surge by zero cross trigger control.

• High Isolation over than 50MΩ/500VDC

• Panel Mounting

• LED Input status Indicator

• Integrated with removable tinger-proof cover SSR-S-CV

• Fast reaction, high reliability and long life

• No switching speaks, no noise, and no contact points.

• Excellent for switching control of switchboard panel, heaters, printers, machines, UPS

• UL and cUL Approval. File No. E301692. CE Compliant.

• Packing: 100pcs/ctn, N.W. :11.6kgs /carton

• Webpage: SSR-SXXDA(-H) DC to AC Single Phase Solid State Relay

(Series Name or) Product Item No.	SSR-S10DA	SSR-S25DA	SSR-S40DA	SSR-S10DA-H	SSR-S25DA-H	SSR-S40DA-H
Specifications/Dimensions
L x W x H	57 x 42 x 24 mm	57 x 42 x 24 mm	57 x 42 x 24 mm	57 x 42 x 24 mm	57 x 42 x 24 mm	57 x 42 x 24 mm
Ref. L1 x W1	43.8 x 27 mm	43.8 x 27 mm	43.8 x 27 mm	43.8 x 27 mm	43.8 x 27 mm	43.8 x 27 mm
Ref. L2 x W2	46.3 x 12 mm	46.3 x 12 mm	46.3 x 12 mm	46.3 x 12 mm	46.3 x 12 mm	46.3 x 12 mm
Ref. Diameter (Ø)	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Electrical Specifications
Max. Load Current	10 A	25 A	40 A	10 A	25 A	40 A
Control Method	Zero Cross	Zero Cross	Zero Cross	Zero Cross	Zero Cross	Zero Cross
Input Operating Voltage	4~32 VDC	4~32 VDC	4~32 VDC	4~32 VDC	4~32 VDC	4~32 VDC
Input Current	20mA@ 32 VDC	20mA@ 32 VDC	20mA@ 32 VDC	20mA@ 32 VDC	20mA@ 32 VDC	20mA@ 32 VDC
Must Turn Off Voltage	0~2.5 VDC	0~2.5 VDC	0~2.5 VDC	0~2.5 VDC	0~2.5 VDC	0~2.5 VDC
Output Load Voltage Range	24~280 VAC	24~280 VAC	24~280 VAC	90~480 VAC	90~480 VAC	90~480 VAC
Max. One Circle Peak Surge	120 A	250 A	400 A	120 A	250 A	400 A
Min. Blocking Voltage	600 V	600 V	600 V	600 V	600 V	600 V
Turn On & Turn Off Time	< 1/2 AC circle	< 1/2 AC circle	< 1/2 AC circle	< 1/2 AC circle	< 1/2 AC circle	< 1/2 AC circle
Isolate Impedance	50M Ohm / 500 VDC	50M Ohm / 500 VDC	50M Ohm / 500 VDC	50M Ohm / 500 VDC	50M Ohm / 500 VDC	50M Ohm / 500 VDC
Max. On-State Voltage Drop	1.6 V / 25oC	1.6 V / 25oC	1.6 V / 25oC	1.6 V / 25oC	1.6 V / 25oC	1.6 V / 25oC
Materials
Body Materials	PBT
Color	White
Accessories & Parts
Protective Cover	SSR-S-CV (Optional)
Heat Sink	HS-60XXX series (HS-60050, HS-60100, HS-60150, HS-60200)
Approval & Certificate	UL/cUL File No. E301692, CE, LVD
