Home > Products > Radar Speed Sign > Outdoor Traffic LED Light 18Inch Digital Radar Speed Sign

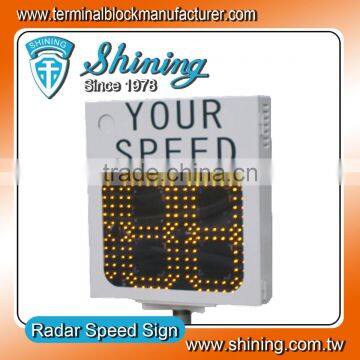

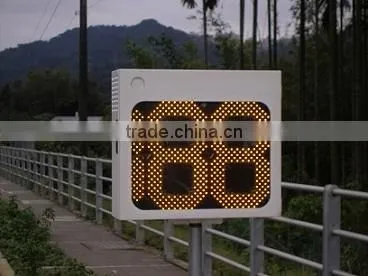

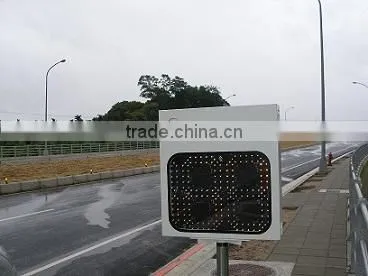

Outdoor Traffic LED Light 18Inch Digital Radar Speed Sign
- 100 Piece / Pieces per Month
- Keelung Port
- T/T Credit Card PayPal
- LED Lamp Outdoor Driver Sign Traffic Radar Speed Feedback
- SSR-T40AA 40A Three Phase AC To AC Power SSR Relay
- SSR-S25DA 25 Amp DC To AC Single Phase SSR Solid State Relay
- SSR-S25AA-H Shining 25A AC to AC UL High Power 240V Output Relay
- SSR-S10AA UL/CE Approval Solid State Electrical Relay AC 10A SSR
- SSR-S40DA-H DC to AC Type CE 40A Single Phase Solid State Relay
Product Details
Place of Origin: | Taiwan | Brand Name: | SHINING | Model Number: | 18SFL25M22R09S |
Packaging Details
1pc/ GW:28.5kgs (62.7lbs)/ NW: 26.5kgs(58.3lbs) / carton
Product Description
Specifications
Outdoor Traffic LED Light 18Inch Digital Radar Speed SignPower Source:9.5-25VDC
System Power:0.736W
Frequency:24.12-24.13GHZ
Outdoor Traffic LED Light 18Inch Digital Radar Speed Sign |
Gerneral Product Information | |
Item number: | 18SFL25M22R09S |
Power Source: | 9.5-25 VDC |
System Power: | 0.736W |
Radar Frequency: | 24.120-24.130GHZ |
Operating Temperature: | -10 ~ 80 °C |
Dimensions [mm] (EXAMPLE:) | |||
Item No. | Length (L) | Width (W) | Height (H) |
18SFL25M22R09S | 715.0 mm | 640.0 mm | 227.5 mm |
Product Features |
• Whole system driven by high efficient switching power supply. The highest efficient can reach 92%, provide best power saving performance. • Bi-directional detect allowed. • Standard power saving device provide automatic day-light saving, low LED driving watts, etc. • Whole system locate inside the external display box, suitable for out door usage. • Good ventilation design of display box provide excellent low temperature environments. • Weather resistance 5.5mm thickness PC plate window provide good protection for display board. • 1.5mm thickness SPCC for display box,provide rigid structure. Stainless hinge shaft provide long life for display box. |
1. Model Number: 18SFL25M22R09S Version V1.0
2. Power Source: 9.5-25 VDC
3. System Power Consumption: Approximately 0.736W for System board + Radar module.
4. Radar Frequency: 24.120-24.130GHz
5. Operating Temperature: Standard (-10~80 °C)/ (14~176 °F ); Optional (-40~80 °C)/ (-40~176 °F )
6. Signal Pick Up Distance: 250+M (820Ft+)note 2; (Azimuth: 12°; Elevation: 24°@3db)
7. Max. Speed Detect and Display Detect: 223KM(138Miles)/hour, Display: 199 KM(138Miles)/hour
8. RS232 COM port: Yes, optional device for GPRS, WIFI, Wireless via COM port are all available.
9. Real Time Clock: Yes, +/- 3ppm,
10. SD Storage Device: Yes, supports up to 32GB
11. Device Configuration Standard: via COM; Option: IR Remote control
12. Violation Speed & High Speed Cut Off Setting: Standard via COM, Manual (by thumb wheel). Option: IR Remote control.
13. Warning Flash: Will be lighted on when a vehicle violated speed.
14. Camera: Option only, (under developed). Control board provide a high/low voltage for system to trigger the camera.
15. FCC: Yes for radar module
16. Traffic Counter Function: Yes (optional)
17. Dimension: 728mm(28.66”)Width, 1016mm(40”)Height, 227mm(8.9”)Thickness;
Packed with Corrugated Carton; 5 layers Strength 14kg: 750mm(29.53”)W; 660mm(26.98”)H; 140mm(5.51”)T
18. Weight: Approximately GW: 28.5kgs (62.7lbs); NW: 26.5kgs(58.3lbs), battery not included
19. Power consumption (all LED light on): Maximum under daylight, approximately 12W. Minimum at night, approximately 4.2W
20. LED Display: 22pcs 5mm supper flux LED per segment; 16 Segments total; viewing angle 30 ° , Luminous Intensity 9000mcd for display LED. 9pcs flash LED provide strobe effect.
21. Battery: AC/DC power available as option; will be provided under
requisition.
Packaging |
1pc/ GW:28.5kgs (62.7lbs)/ NW: 26.5kgs(58.3lbs) / carton |
Shipping information |
1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis. |
2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline. |
Our Services |
Shining E&E Industrial Co., Ltd. is a well-experienced manufacturer, offering Electronic Components, Plastic Products, Terminal Blocks and Fuse Holders for more than 30 years. We mainly provide Ceramic Terminal Block, Fuse Clip, Solid State Relay (SSR), Barrier Strip, Power Terminal Block, Insulators, Screw Terminal Block, Electrical Connectors, Busbar Support and Terminal Block Connector, all with superior quality. If you need more information about Electrical Terminal Blocks and Fuse Blocks, please do not hesitate to contact us. |
Shining E&E Industrial A specialized supplier of terminal blocks, fuse holders, barrier strips, and solid state relays (SSR) since 1978. |
Shining E&E Industrial Co., Ltd., founded in 1978, is a specialized manufacturer and supplier of plastic and electronic components products. We have experienced growth steadily year after year. Since 1992, our oversea factory, which is located in GuanDong Province, China, has been built to support our continuously expanding business. Awarded SGS ISO 9001:2000 certification since 2005. We have endeavored to the design and fabrication of all kinds of plastic products and have profound OEM/ODM experience with domestic and world-famous enterprises, such as TECO, TAIAN, Wal-Mart, Kmart, Target, Springs, and Sears, and so on. At present, we are extending our business to North America, Middle America, South America, Europe, Asia, Australia, and Far East countries. Our main products include various automatic control components and electronic components, such as terminal blocks, euro terminal strips, double row barrier strips, single row barrier strips, connectors, power blocks, fuse holders, fuse blocks, fuse links, solid state relays, relay sockets, insulators, switches, buttons, heat sinks, and related accessories. Meanwhile, we accept the design and fabrication of steel molds as well. Besides, our other products lines also include curtain draperies, hardware, and finials, bamboo floors, tagging guns, spray guns, plastic brushes, and miscellaneous hardware and plastic products. We have firmly believed in the idea of consistent quality, service, honesty, and responsibility, which is also our policy to satisfy our customers with the most competitive price, the excellent quality, and the best service. If you are interested in any of our products, please feel free to contact with us immediately. We look forward to building a long-term cooperation relationship and bringing a mutual benefits with you. We are very interested in cooperating with manufacturers in other fields and look forward to benefit for each other. "Working For A Better World" is our slogan. We deeply expect to have this world to be safer and better. |
Certificates |
1. Stationary / Semi Portable / Portable are available.
2. Panel Dimension: 10" / 14" / 18" / 26" for your reference.
3. Case Material and Other Accessories can be customized.
4. For more details you can visit: .tw
