DRA-2 For 35mm Aluminum Din Rail Mounting Instrument Din Rail Kit
Negotiable
MOQ: 300 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
DRA-2
Type:
Other, Voltage Regulator, Fuse Block Adapter
Brand Name:
Shining
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FS-010AC Fuse Block Power Off IndicatorNegotiableMOQ: 800 Pieces -
FS-030-3 LED Fuse Block AC Power Off IndicatorUS$ 0.1 - 3MOQ: 800 Pieces
-
FS-030-2 AC Fuse Block Power Off IndicatorUS$ 0.1 - 3MOQ: 800 Pieces
-
FS-030-1 DC Fuse Block LED Light IndicatorUS$ 0.1 - 3MOQ: 800 Pieces
-
FB-6010B For FB-6011 FB-6012 PC AC 110V 600V Fuse Block IndicatorUS$ 0.1 - 5MOQ: 800 Pieces
Model Number
DRA-2
Type
Other, Voltage Regulator, Fuse Block Adapter
Brand Name
Shining
Place of Origin
Taiwan, China
Specifications
DRA-2 For 35mm Aluminum Din Rail Mounting Instrument Din Rail KitDimension: 80.1x40.0x7.9mm
Material: ABS
Color: Black
4.Fl
DRA-2 For 35mm Aluminum Din Rail Mounting Instrument Din Rail Kit
Product Description
•Item number: DRA-1
•Dimension: 80.1x40.0x7.9mm
•Material: ABS
•Color: Black
•Flame Retarded: UL 94-HB
•Working Temperature: 800C
•Suitable: FB-M032PQ/ FB-M032SQFuse Block
Packaging & Shipping
•Packing: 300pcs /carton, N.W. :18.0kgs /carton
•Webpage: DRA-X Series Fuse Block Din Rail Adapter
|
| |||||||

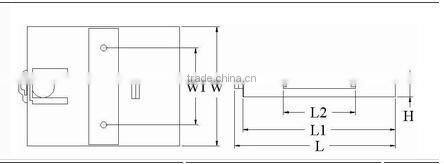

| Item No. | DRA-1 | DRA-2 | DRA-3 | ||||
| Specifications/Dimensions Tolerance: (0.015") +/- 0.38 mm |
|||||||
| Length L [inch] | 3.153" (80.1 mm) | 3.153" (80.1 mm) | 3.153" (80.1 mm) | ||||
| Ref. Length L1 [inch] | 2.972" (75.5 mm) | 2.972" (75.5 mm) | 2.972" (75.5 mm) | ||||
| Ref. Length L2 [inch] | 1.398" (35.5 mm) | 1.398" (35.5 mm) | 1.398" (35.5 mm) | ||||
| Height H [inch] | 0.311" ( 7.9 mm) | 0.311" ( 7.9 mm) | 0.311" ( 7.9 mm) | ||||
| Width W [inch] | 0.827" (21.0 mm) | 1.579" (40.1 mm) | 2.346" (59.6 mm) | ||||
| Pitch W1 [inch] | NA | 0.760" (19.3 mm) | 1.520" (38.6 mm) | ||||
| Materials | |||||||
| Body Materials | ABS | ABS | ABS | ||||
| Color | Black | Black | Black | ||||
| UL Flame Retarded Grade | UL 94HB | UL 94HB | UL 94HB | ||||
| Temperature [oC] | 80oC | 80oC | 80oC | ||||
| For Fuse Blocks | FB-M031PQ FB-M031SQ |
FB-M031PQ FB-M031SQ |
FB-M031PQ FB-M031SQ |
||||
