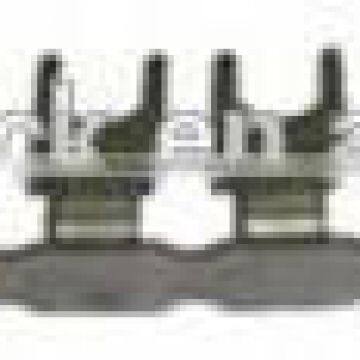

BJ-089A12 For 10A Brass Connector Link Jumper Cartridge Terminal
US$ 0.5 - 2
MOQ: 400 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Shining
Model Number:
BJ-089A12
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BJ-131A12 For 30A Nickel Plated Barrier Jumper Terminal Block BridgeUS$ 5 - 10MOQ: 400 Pieces -
FS-010AC Russia AC LED Pilot Power Off Failure Fuse LampNegotiableMOQ: 800 Pieces
-
FB-6010 New 2014 AC LED Pilot Power Off Failure Fuse IndicatorNegotiableMOQ: 800 Pieces
-
DRA-2 For 35mm Aluminum Din Rail Mounting Instrument Din Rail KitNegotiableMOQ: 300 Pieces
-
FS-010AC Fuse Block Power Off IndicatorNegotiableMOQ: 800 Pieces
Place of Origin
Taiwan, China
Brand Name
Shining
Model Number
BJ-089A12
Type
Other, Terminal Block Jumper
Application
Power
Gender
Male
BJ-089A12 For 10A Brass Connector Link Jumper Cartridge Terminal
Product Description
•Item number: BJ-089A12
•Pitch: 8.9mm
•Width for Pole: 6.2mm
•Pole: 12
•Dimension: 12.6x106.8x0.5mm
•Material: Brass
•Finished: Nickel-plated
•Suitable: TA-010/ TB-1512/ TE-010/ TR-10 Terminal Blocks
Packaging & Shipping
•Packing: 100pcs/bag, 400pcs/1boxes/N.W. :8.0kgs /box
•Webpage: BJ Series Terminal Block Jumper
| Item No. |
BJ-080A02 | BJ-095A03 | BJ-100A02 | BJ-110A02 | BJ-110B02 | BJ-120A03 |
| Photo | |
|
|
|
|
|
| Drawing | ||||||
| Pitch | 8.0mm (0.315") |
9.5mm (0.375") |
10.0mm (0.394") |
11.0mm (0.433") |
11.0mm (0.433") |
12.0mm (0.472") |
| Width of Pole | 6.0mm (0.236") |
8.4mm (0.330") |
7.8mm (0.307") |
8.0mm (0.315") |
8.0mm (0.315") |
10.4mm (0.409") |
| Pole | 2 | 3 | 2 | 2 | 2 | 3 |
| L*W*H [mm] | 15*14*0.5 | 15*26.8*0.6 | 17*17.8*0.6 | 15*19*0.6 | 15*19*0.6 | 15*33.6*0.6 |
| Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Plating | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Suitable Terminal Blocks | TA-010 TB-15XX TB-315XX TBD-315XX TBS-650XX TBT-650XX TD-015 TE-010 TR-10 TS-015 |
TBS-650XX TBT-650XX |
TB-25XX TD-025 |
TA-020 TA-030 TB-25XX TB-25XXL TB-35XX TB-325XX TBD-325XX TD-015 TE-020 TR-20 TR-30 TS-025 TS-035 |
TA-020 TA-030 TB-25XX TB-25XXL TB-35XX TBD-325XX TB-325XX TD-015 TE-020 TR-20 TR-30 TS-025 TS-035 |
TB-25XXL TB-35XX |
| RoHS | RoHS Apprval | RoHS Apprval | RoHS Apprval | RoHS Apprval | RoHS Apprval | RoHS Apprval |
| Refer | BJ-1002-080A | BJ-2003-095A | BJ-2502-100A | BJ-2002-110A | BJ-2002-110B | BJ-2503-120A |
| Item No. | BJ-088A12 | BJ-089A12 | BJ-110C12 | BJ-131A12 |
| Photo | |
|
|
|
| Drawing | ||||
| Pitch | 8.8mm (0.346") |
8.9mm (0.350") |
11.0mm (0.433") |
13.1mm (0.515") |
| Width of Pole | 6.2mm (0.244") |
6.2mm (0.244") |
7.1mm (0.280") |
8.7mm (0.342") |
| Pole | 12 | 12 | 12 | 12 |
| L*W*H [mm] | 15.8*103.0*0.5 | 12.6*106.8*0.5 | 15.9*125.6*0.6 | 14.2*157.2*0.5 |
| Material | Brass | Brass | Brass | Brass |
| Plating | Nickel | Nickel | Nickel | Nickel |
| Suitable Terminal Blocks | TA-010 TD-015 TE-010 TR-10 |
TA-010 TB-1512 TE-010 TR-10 |
TA-020 TB-2512 TE-020 TR-20 TS-025 |
TA-030 TE-030 TR-30 |
| RoHS | RoHS Approval | RoHS Approval | RoHS Approval | RoHS Approval |
| Refer | N/A | N/A | N/A | N/A |
