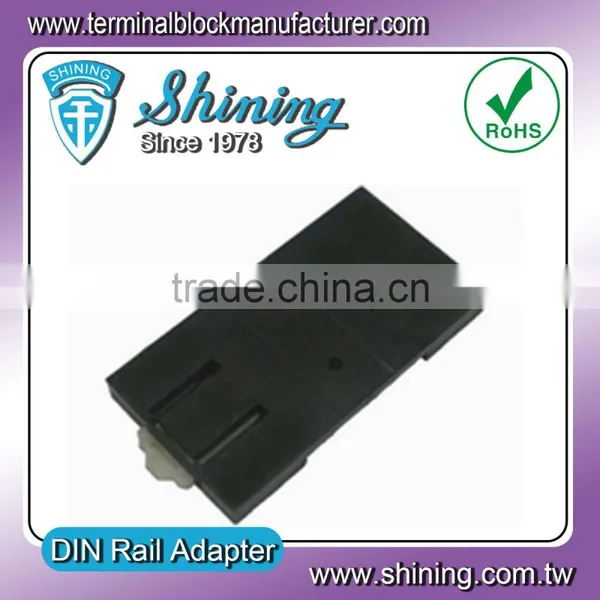

DRA-2 UL 94HB Fuse Block Din Rail Adapter

Name: DRA-2 UL 94HB Fuse Block Din Rail Adapter
Brand: Shining
SKU: 141871482
Availability: InStock

US$ 0.1 - 1 MOQ: 300 Pieces

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

Shining

Model Number:

DRA-2

SHINING E&E INDUSTRIAL CO., LTD.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Keelung Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name Shining

Model Number DRA-2

Type Other, Fuse Block Adapter

DRA-2 UL 94HB Fuse Block Din Rail Adapter

Product Description

•Item number: DRA-2

•Dimension: 80.1x40.0x7.9mm

•Material: ABS

•Color: Black

•Flame Retarded: UL 94-HB

•Working Temperature: 80⁰C

•Suitable: FB-M032PQ/ FB-M032SQFuse Block

Packaging & Shipping

•Packing: 300pcs /carton, N.W. :18.0kgs /carton

•Webpage: DRA-X Series Fuse Block Din Rail Adapter


Item No.	DRA-1	DRA-2	DRA-3
Specifications/Dimensions Tolerance: (0.015") +/- 0.38 mm
Length L [inch]	3.153" (80.1 mm)	3.153" (80.1 mm)	3.153" (80.1 mm)
Ref. Length L1 [inch]	2.972" (75.5 mm)	2.972" (75.5 mm)	2.972" (75.5 mm)
Ref. Length L2 [inch]	1.398" (35.5 mm)	1.398" (35.5 mm)	1.398" (35.5 mm)
Height H [inch]	0.311" ( 7.9 mm)	0.311" ( 7.9 mm)	0.311" ( 7.9 mm)
Width W [inch]	0.827" (21.0 mm)	1.579" (40.1 mm)	2.346" (59.6 mm)
Pitch W1 [inch]	NA	0.760" (19.3 mm)	1.520" (38.6 mm)
Materials
Body Materials	ABS	ABS	ABS
Color	Black	Black	Black
UL Flame Retarded Grade	UL 94HB	UL 94HB	UL 94HB
Temperature [^oC]	80^oC	80^oC	80^oC
For Fuse Blocks	FB-M031PQ FB-M031SQ	FB-M031PQ FB-M031SQ	FB-M031PQ FB-M031SQ
