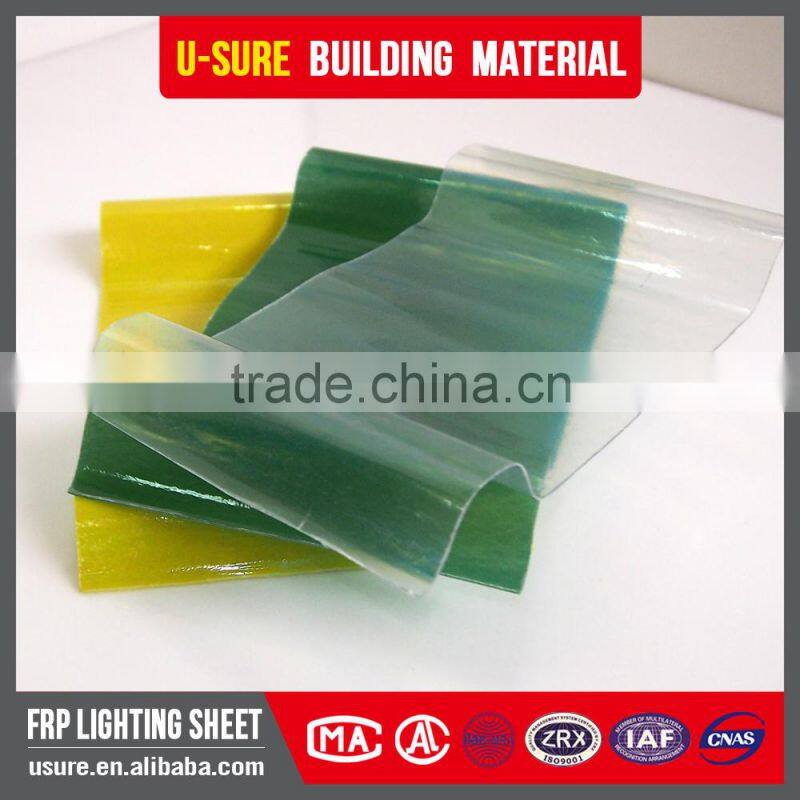

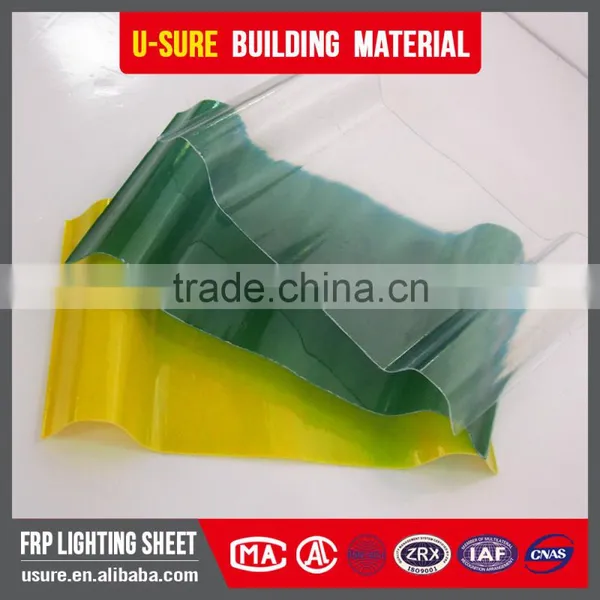

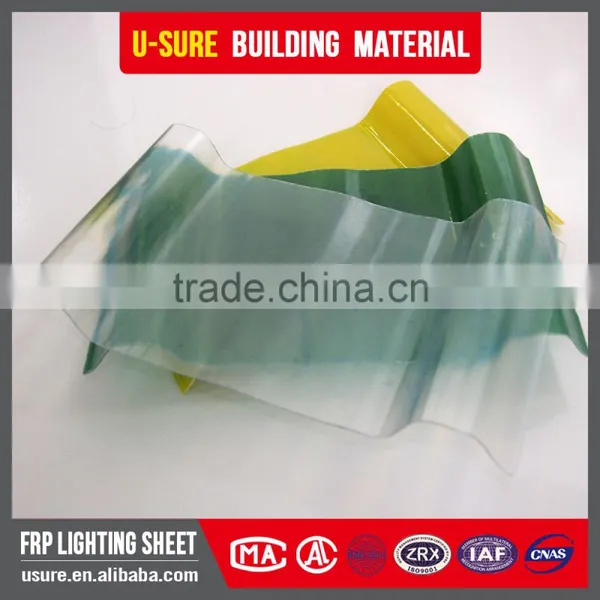

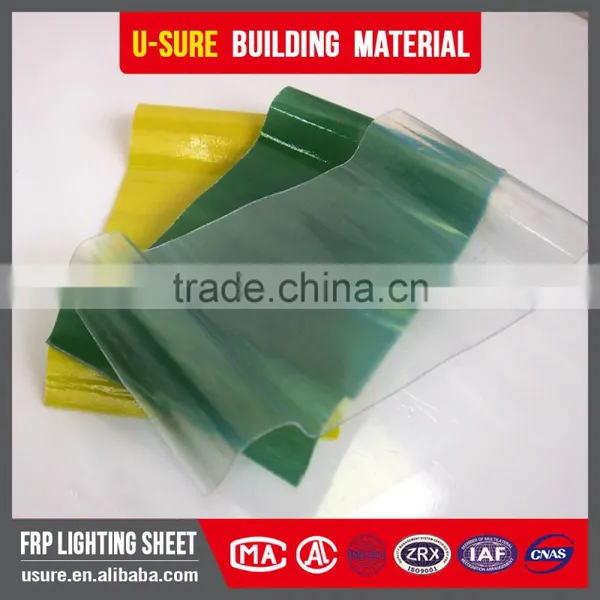

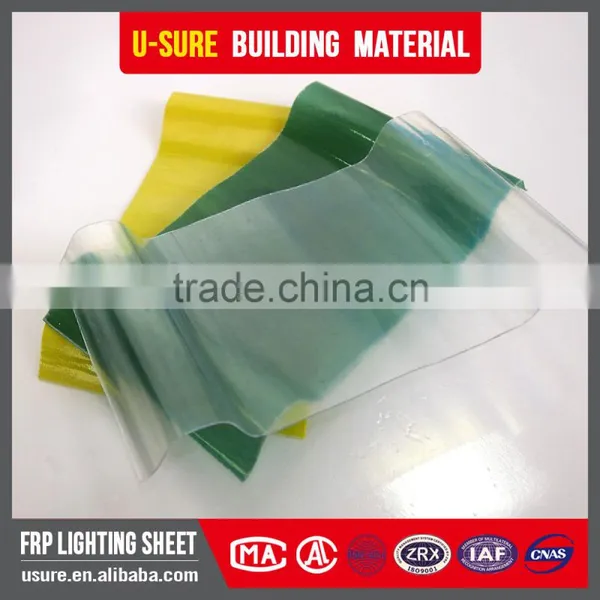

Wholesale fiberglass reinforced polyester roofing sheet sizes
Specification:
| Thickness | 0.8mm/1.0mm/1.2mm/1.5mm /2.0mm/2.5mm |

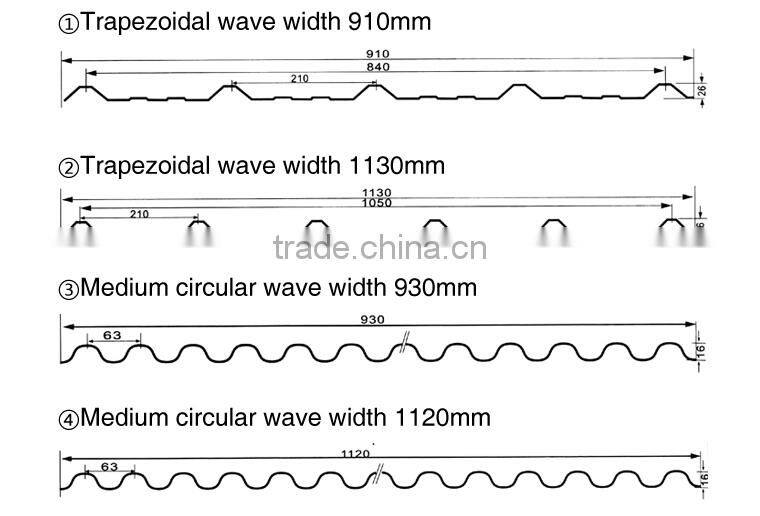

| Width | 760mm/820mm/840mm/900mm/930mm /960mm/1025mm/1040mm/1050mm/1130mm |
| Length | 5800mm,11800mm or customized according to requirement of customers |
| Color | clear / sky blue / lake blue & opal ( or customized ) |
| Size | customized |
| Guarantee of quality | 10 years or 15 years |
Application:
The roofing and wall materials of industrial building , commercial building and residential building.
To facilitate the product installation,our company has developed the patented comprehensive anticorrosive mounting accessories as shown below.
Illustration : The above accessories can be applied to the profiles of ASA composite corrugated roofing tile , APVC anti-corrosive complex corrugated sheet , and PVC translucent corrugated sheet .
Rulesfor the installation of Usure FRP daylighting sheet
The FRP daylighting sheet is a durable daylighting product designed for weathering resistance.
Install it carefully for fear of amage or scratch , which might influence its service lige . In the lap joint of the daylighting sheet with the color steel sheet , the former shall be put over the latter .
1.The bore diameter must be 2-3mm more than the fixing screw diameter for fear of expansion caused by heat and contraction caused by cold .
2.A premium waterproof washer must be put between a screw and a daylighting sheet for the waterproof and dustproof and dustproof effects .
3.A double-sided adhesive tape must be put over the purline for fear of the direct friction between the daylighting sheet and the purline.
4.There should be two double-sided adhesive tapes in the vertical lap joint position for a waterproof effect .
5.In the storage of a daylighting sheet , don’t put stress on it for fear of its breaking .
Normal Node Drawing
Common waveform sheet lap joint : Put the daylighting sheets directly onto the surrounding profiled steel sheets with the butyl rubber tape fastened to the joints on the sides of the steel sheets ; The end along the daylighting sheet length shall be put on the purline , overlapping the steel sheet by over 250mm , with two pieces of 2*20mm Butyl rubber tapes at the lap joint end.
Foshan U-sure building material Co.,Ltd Established in 2002, our company is specialized in the production of pc sun sheet and pvc roofing tile and synthetic resin tile . One of the largest production plant in Foshan China.
Our products cover: roofing material series, lighting sheet series, agricultural greenhouse sheet series, light box advertising sheet series, etc. In addition to occupying the domestic markets, the products are also exported to Asia, Europe, America, Africa and others around the world and highly appreciated by users.
