Trustworthy factory direct China industrial boiler prices

FOB Price

USD $9,999 - $159,999 / Set

1 Set(Min.Order)

Supply Ability 3000 Ton / Tons per Month
Port Guangzhou China
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Natural Circulation
Usage	Industrial	Structure	Fire Tube
Pressure	Low Pressure	Style	Horizontal
Fuel	Other, Gas and oil	Place of Origin	Guangdong, China
Brand Name	Devotion Boiler	Model Number	WNS
Output	Steam	Dimension(LWH)	Depends
Weight	3.5-52.5 ton	Certification	ASME, ISO, CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Application

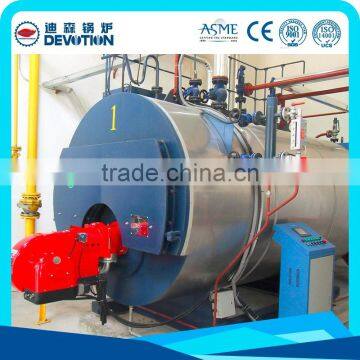

Devotion brand 0.5t-20t gas and oil steam boiler is well designed to quickly generate clean and dry steam.
It is widely used in different industries such as chemical plant, energy field, food factory, hospital, hotel, laundry, package plant, paper-making mill, pharmaceutical factory, slaughter house, tobacco factory, textiles plant, etc.

Main Features

1) 15 years or more long working life time.
2) High efficiency 3 pass wet back structure in horizontal type.
3) Running in a high automatization and intellectualization, easy to operate and maintain.
4) Applying a multi-level protection system to ensure the safety.

MAIN SPECIFICATIONS FOR 0.5 TON - 20 TON GAS AND OIL STEAM BOILER
	Rated Evaporation	Thermal Efficiency	Working Pressure	Steam Temp'	Fuel & Consumption				Gross Weight
	Rated Evaporation	Thermal Efficiency	Working Pressure	Steam Temp'	Light oil	Heavy oil	Natural gas	LPG	Gross Weight
	t/h	%	Bar	℃	Kg/h	Kg/h	Nm³/h	Nm³/h	Ton
WNS0.5	0.5	90	7 10 12.5 16	175 184 193 204	34.0	34.8	40.6	14.5	3.5
WNS1	1	94			65.1	66.7	78.4	27.8	5.1
WNS2	2	94			118.9	121.8	143.2	50.8	7.3
WNS3	3	94			190.7	195.0	229.7	80.3	9.8
WNS4	4	94.1			273.8	244.9	288.2	102.1	12.9
WNS5	5	94.2			298.8	305.6	359.5	127.2	14.3
WNS6	6	94.3			337.2	345.3	406.2	143.9	14.9
WNS8	8	94.6			450.7	461.3	543.3	192.0	21.5
WNS10	10	94.6			564.3	577.8	679.9	240.8	26.1
WNS15	15	94.6			845.8	865.8	1018	360.7	34.8
WNS20	20	94.6			1134	1272	1367	484.5	52.8

Main Details

High Efficiency Design

- Real 3 psss full wet back structure.

- Corrugated furnace and big combustion room to increase radiant heating area.

Intelligent Controlling System

- Fully automatic control

- Siemens PLC and touch screen.

- Visible operation status

High Quality Boiler Shell
Polished and sand blasted, no rust left, rolled by advanced N.C rolling machine, higher anti-corrosive quality and intensity, longer working life.

High Precision Boiler Head
Drilled by high precision drilling machine, sand blasted, no rust left, higher anti-corrosive quality and intensity, longer working life with higher safety.

Finely Processed Threaded Fire Tubes

Polished and well threaded before welding, no rust left on the surface, higher anti-corrosive quality and intensity, longer working life.

High Quality Welding

smooth surface, no weld crack, no lack of penetration, no pores in welds, no leakage.

Automatic Burning System

Name: Burner

Brand: Weishaupt, Riello, Baltur, Oilon, Devotion etc.

Original: Europe/China

International famous brand, strong driving force, low fuel consumption, high economic benefits, long working life.

Certifications

Our Company

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Technical support available, training available.

* Engineers available to service machinery overseas.

10-40t Water Tube Steam Boiler

0.3-2t Vertical Steam Boiler

150Kg-2t Electric Steam Boiler
