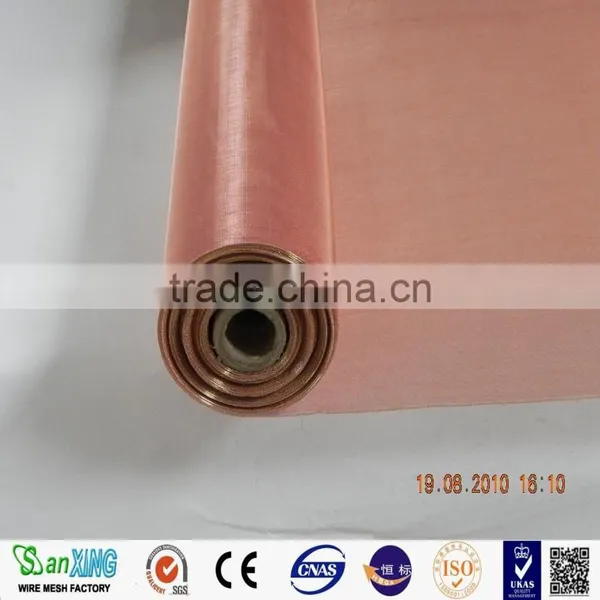

Plain weave emi shielding faraday cage copper mesh

Plain weave emi shielding faraday cage copper mesh

Material: brass wire

Mesh count: 6mesh/inch to 200mesh/inch

Diameter:0.051mm to 0.711mm

Opening: 0.076mm to 3.522mm

Weaving methods: Plain weave, twill weave or Dutch weave

Width:0.5m to 3.0m, custom require available at request

Length: Standard roll length is 30m,30.5m, custom require available at request

Packing: in waterproof paper, PVC bag, wooden pallet. Custom packing available at request

Certificate: ISO9001:2000

Brass : As the alloy of copper and zinc, Brass Wire Mesh has excellent abrasion

resistance ,corrosion-resisting, lower electric conductivity as compared with copper.

Copper: Copper wire offers excellent electrical and thermal conductivity. It is non-magnetic,

anti-sparking and is resistant to atmospheric corrosion, salt air and brine. Copper

applications are limited due to its low tensile strength, poor resistance to abrasion and

common acids.

Phosphor bronze is an alloy of Tin, phosphorus and Copper. It is corrosion-resisting, wear-

resisting, tear-resisting, but not suitable for exposure to hydrochloric acid or strong oxidizing agents.

Uses: Separation and sifting kinds pellet ,grain, porcelain earth and glass, chinaware printing, filter liquid, etc.

Common specification:
