F72 & F82 Welded Reinforcing Concrete Wire Mesh
You May Like
-
Decorative Welded Wire Mesh Panel/aviary Cage Panels Galvanized
-
New Welded Wire Mesh Panel Manufacturer
-
Galvanized Welded Wire Mesh Fence Panel Yahoo.com
-
Best Price Welded Wire Mesh Panel Dog Cage Material
-
Heavy Gauge Rebar Welded Wire Mesh Panel From Anping Sanxing
-
Welded Wire Mesh Cage / Welded Wire Mesh Panel Yahoo.com
Product Details
| Place of Origin | Hebei, China | Material | Galvanized Steel Wire | |
| Type | Reinforced Mesh | Application | Other, concrete reinforcing | |
| Weave Style | Other, welded | Wire Diameter | 2mm-14mm | |
| Technique | Welded Mesh | Model Number | SX-0010 | |
| Brand Name | SANXING |
Product Description
Product information

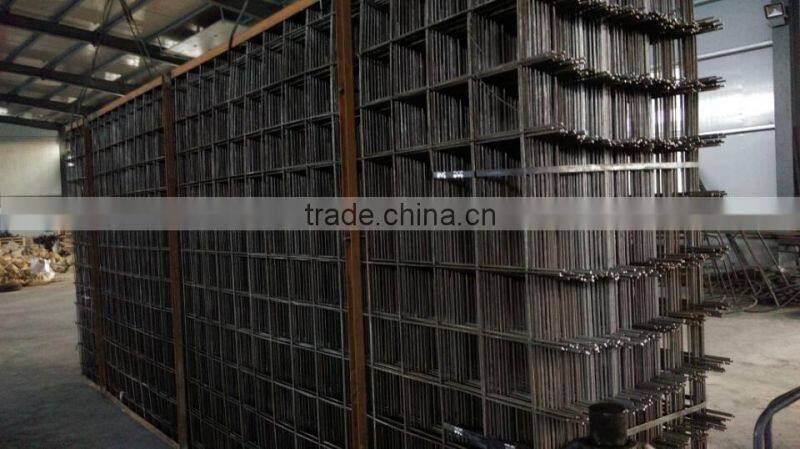

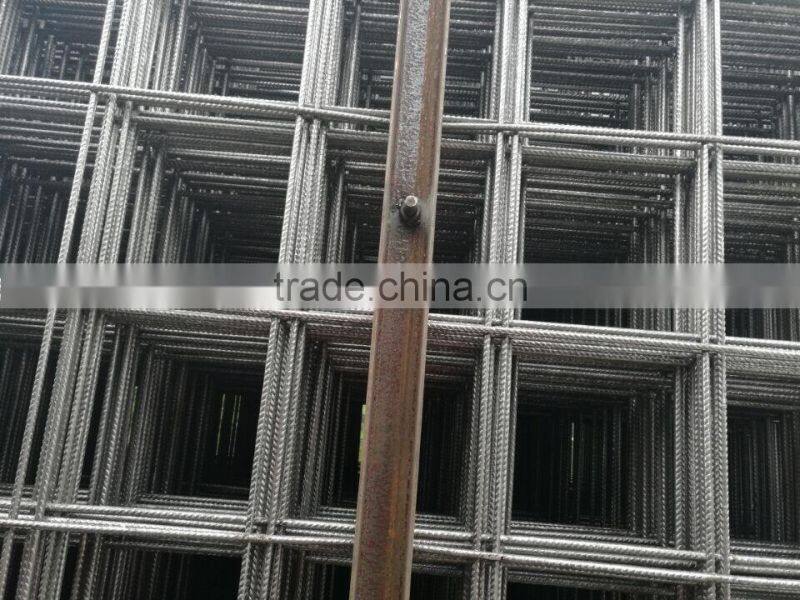

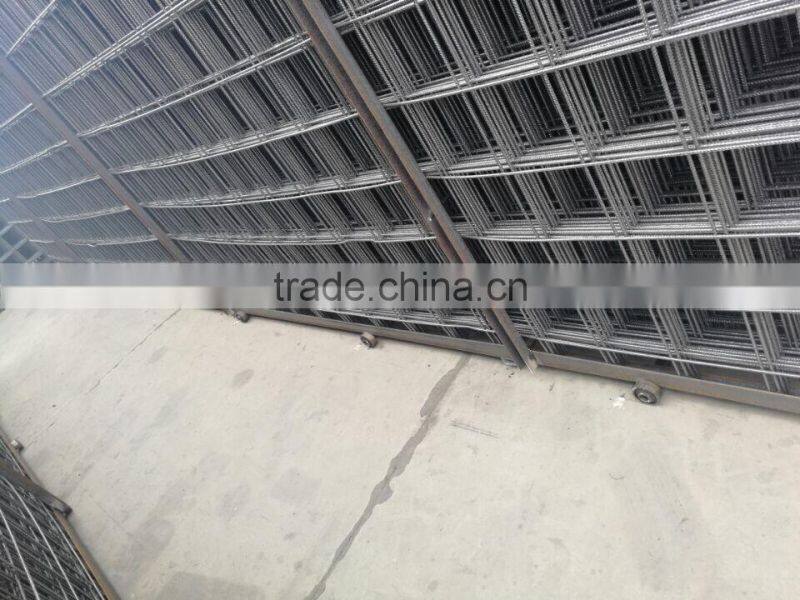

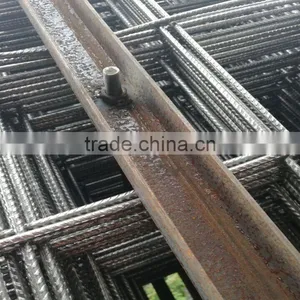

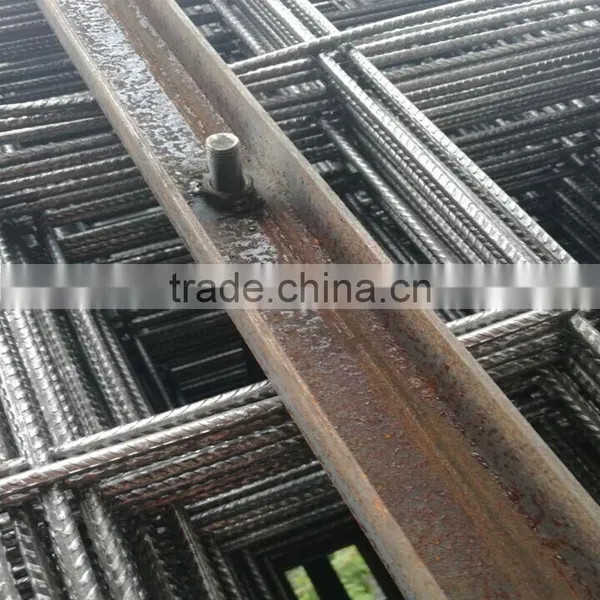

F72 & F82 welded reinforcing concrete wire mesh
This general purpose mesh is used for reinforcing flat concrete elements such as flooring, footpaths slabs and walls etc. Square mesh is manufactured from L grade ribbed wires (D500L) that are welded together with equal spacing in both directions to form square apertures.
Australia/New Zealand Standard (SIZE:6000mmX2400mm)
Ref No. | Std Unit | Longitudinal | Edge Wires mm | Cross Wires mm | Mass Kg |
SL81 (F81) | Sheet | 7.6 @ 100 | 7.60 @ 100 | 7.60 @ 100 | 105 |
SL102 (F102) | Sheet | 9.5 @ 200 | 6.75 @ 100 | 9.50 @ 200 | 80 |
SL92 (F92) | Sheet | 8.6 @ 200 | 6 @ 100 | 8.60 @ 200 | 66 |
SL82 (F82) | Sheet | 7.6 @ 200 | 5.37 @ 100 | 7.60 @ 200 | 52 |
SL72 (F72) | Sheet | 6.75 @ 200 | 4.77 @ 100 | 6.75 @ 200 | 41 |
SL62 (F62) | Sheet | 6 @ 200 | 4.77 @ 100 | 6 @ 200 | 33 |
SL52 (F52) | Sheet | 4.77 @ 200 | 4.77 @ 100 | 4.77 @ 200 | 21 |
BRITISH STANDARD
Ref No. | Std Unit | Longitudinal | Cross Wires mm | Pitch of wire | No. of sheet per ton | Mass Kg/m2 |
A393 | Sheet | 10 | 10 | 200 @ 200 | 15 | 6.16 |
A252 | Sheet | 8 | 8 | 200 @ 200 | 22 | 3.95 |
A193 | Sheet | 7 | 7 | 200 @ 200 | 29 | 3.02 |
A142 | Sheet | 6 | 6 | 200 @ 200 | 40 | 2.22 |
A98 | Sheet | 5 | 5 | 200 @ 200 | 57 | 1.54 |
Product details

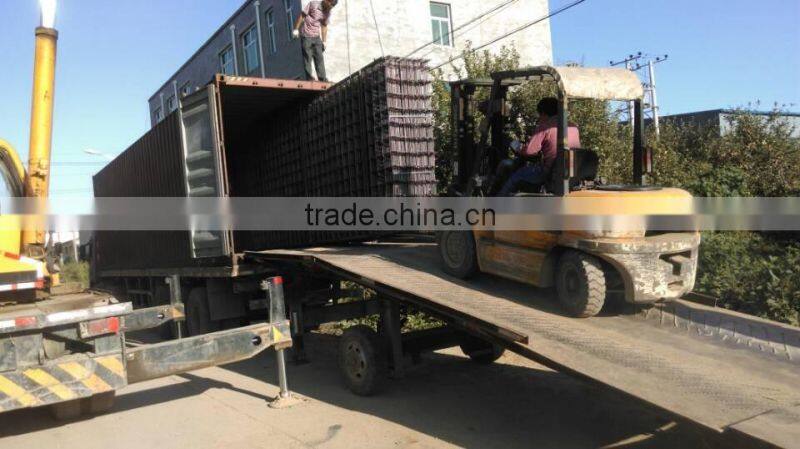

Load horizontally for 2.2m width mesh,load vertically for 2.4m width mesh.
1.Certifications
2.Factory Show
3.Exhibition &Trade Team
Why us:
(1) There are 5 branch companies take 19000 square meters, 165 skilled employees and 10000 Tons capacity monthly to handle different volume orders.
(2) We have a perfect sales team with basic qualities of responsible for customers,non-stop pace of the pursuit of progress,and provide good after-sales service.
(3) ANPING SANXING WIRE MESH FACTORY was Founded in 1990,which lies in the wire mesh's home,Hebei Anping county.As a manufacturer of wire-drawing,mesh-weaving,wire mesh products further process and a wire mesh exporter,we have won good reputation in the world.
(4) ANPING SANXING WIRE MESH FACTORY has set up a high-technology and modern management system,especially worthy to be contacted and creditable.We will be pleased to establish business relations with more friends from all over the world in the near future.
1.What payment term you accept, and usually do?
We usually accept and do T/T payments,30% deposit in advance,and the balance against the copy of BL.
We also accept L/C payment.
2.What's your MOQ and do the price relate to the quantity?
Our MOQ for wire is 1 ton,MOQ for mesh is 100 rolls. The price is diffenent , if the quantity is different.
3.If we want sample,how much do we need to pay?
A piece of mesh or 0-0.5kg wire is free,you just need to pay the freight.
4.If we just want a trial order, not a full container, how to ship them and what's the price?
If a order not a full container, then goods need to be shipped LCL. If you don't know how to deal, we can quotate you CIF price, and ship the goods to the designated port.
