MAYONNAISE FOOD MIXER MACHINE

MAYONNAISE FOOD MIXER MACHINE

Quick Response OEM Mayonnaise Mixer

1)Introduce:

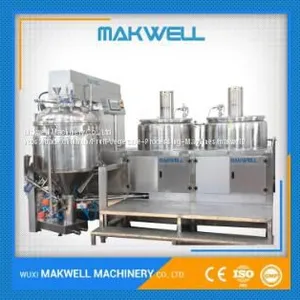

Mayonnaise food mixer machine main used for make mayonnaise and ketchup, which include: oil pot, water pot, emulsifying mixer pot, heating and cooling system( electrical or steam), sweep wall stirrer( lower speed mixing system), emulsifying mixer, vacuum system, hydraulic lifting cover, discharging system and so on

2)Process Flow:

1. oiland others ,heated and mixed in Liquid Pot and Oil Pot.

2. Materials ,Sucked intoemulsifying pot  byvacuum system

3. Stirred by both the center blade and side scraper.Then cut off in cut-off mixing unit,all in the Emulsifying Pot.

4. The materials are finally crushed into small pellets of200um~2um.

5. The finished product , pumed out fromDischarge Valve

6. Fully in accordance with the GMP standard production and passed CE certification

3.)Features:

a.Cover can be lifted up-down by lifting system
b.Main pot ,can be tilted
c.The bubbles (generated during stirring and mixing process), sucked out from material,because of Vacuum Effect
d.Machine Materials,ss304.And ss316 or ss316L according to the requirement of Corrosion Resistance
