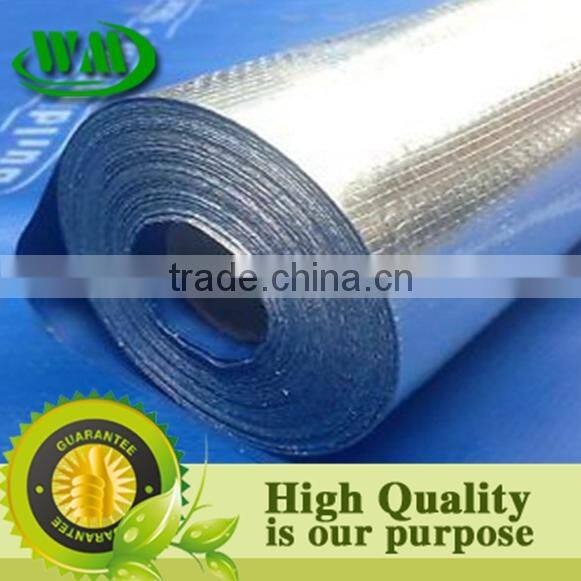

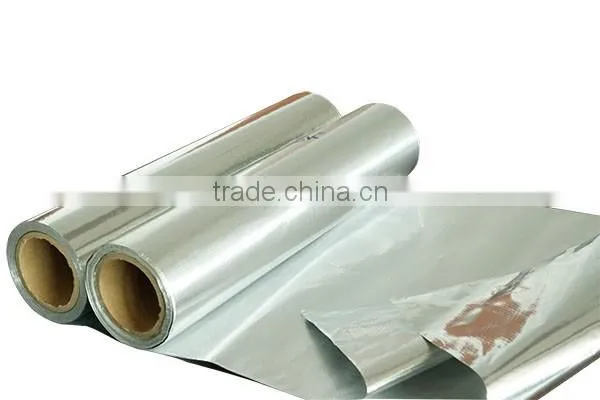

Multi layers reflective foil woven insulation with AS/NZ is specifically designed for use as a tear resistant, radiant barrier and weather protection in wall cavities.

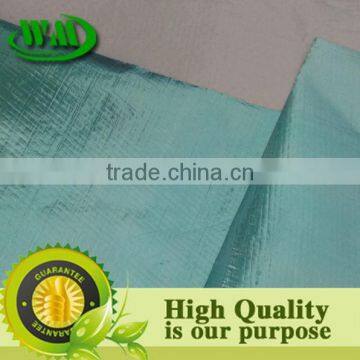

Multi layers reflective foil woven insulation is a light duty radiant barrier manufactured from reinforced, aluminium foil laminated with fire retardant adhesive to a woven polymeric fabric. To eliminate glare during installation, Thermal foil wall wrap has a green backing with customizing your company logo on one surface.
| Appearance | Multi layers reflective foil woven insulation |
| Structure | Aluminum foil/polyethylene/woven/polyethylene |
| Width | 1350mm |
| Length | 30m/60m |
| Grammage | 125gsm |
| Water Vapor Transmission | 0.015gsm/KPA |
| Tensile strength(MD) | 200N/25mm |
| Tensile strength(TD) | 250N/25mm |
| Bursting strength | 590N |
| Reflectivity | 91%-92% |
| Treatment | Fire retardant /UV/Perforated avaliable |
| Flammability Index | Class 1 (AS/NZS 1530.2 -1993) |
| Thermal Performance | AS/NZS 4859.1 -2002 |
Multi layers reflective foil woven insulation is a tough wall wrap for use in brick veneer exterior walls. It is exceptionally tear resistant making it easy to handle during installation, whilst still maintaining its strength and exposure to resistance. The primary purpose of thermal foil wall wrap insulation is to protect against dirt, dust, draughts and condensation.

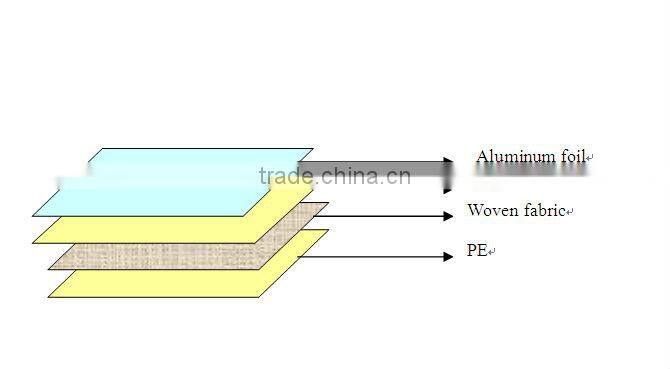

Material structures(Thermal foil wall wrap insulation)
(1)Aluminum foil/pe/woven fabric
(2)Aluminum foil/pe/woven fabric/pe
(3)Aluminum foil/pe/woven fabnric/pe/aluminum foil
Advantages
1.Reflects at least 96% radiant heat
2.Non-toxic/Non-allergic
3.Durable and light weight
4.Does not being compressed,collapsed or not easy being damaged
5.Easy to be cut and install
6.Stop the growth of mold and mildrew
Multi layers reflective foil woven insulation with AS/NZ

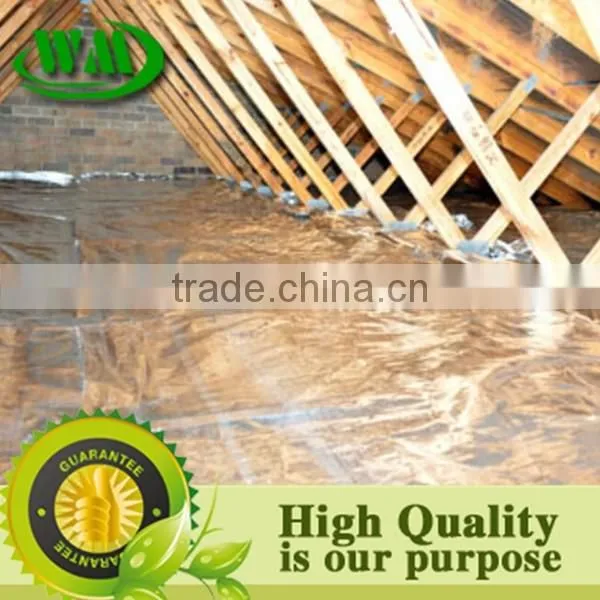

1.Roof sarking,wall wrap ,pipe insulation,roof heat insulation, waterproofing membrane
2.Travel mats,beach mats,camping mositure proof pad
3.Car sunshade,car cover,aie conditioning covers,motocycle sunlight-proof cushions
4.Household appliances,precision instruments,high-grade porcelain and other crafts packing.
Roof laminated foil insulation with AS/NZ s' integral thermal insulation properties adds to the energy efficiency of the wall system when a non ventilated air space is provided to the reflective foil side. Additionally, the installation of thermal foil wall insuation will add to the overall thermal performance of the wall when a clear airspace of at least 20mm or more is provided at the reflective side of the foil face.

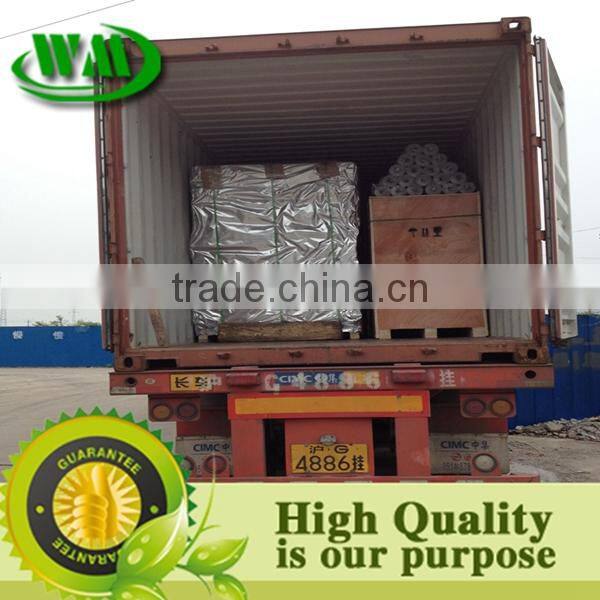

A 20 container can load about 15-18tons metal roofing insulation
A 40HC can load about 22 tons metal roofing insulation
