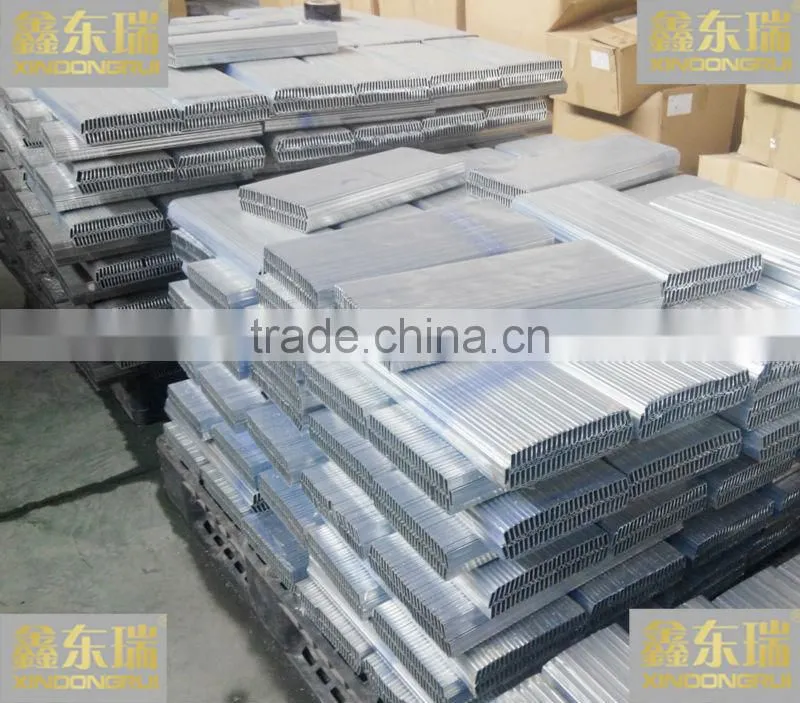

Cut to Length Aluminium Extrusion/Profiles
We can deliver your cut to length extrusion requirements.
Due to the huge variety of aluminium extrusion profiles and the tolerances required from cutting these profiles, HBXDR have a vast array of machinery to best process this cutting operation. Working to close tolerances and with the ability to cut up to 10 metres, we can provide a best fit solution for all of your cut to length needs.
Product Name | Aluminum Profile |
Alloy | 6063,6061,6005 |
Material | Aluminum |
Surface Treatment | Mill,Anodized,painted etc |
Temper: | T4, T5, T6 ,T66 |
Application: | Buildings,commercial,industrial |
Billet’s Technical Data
1)Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2. Billet’s Mechanical property
Alloy | Temper | Tensile strength | Yield strength | Elongation |
6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
