Specifications
Steel structure prefabricated housecost and time saving
easy to assemble and transport
environmental friendly
ISO 9001:2000

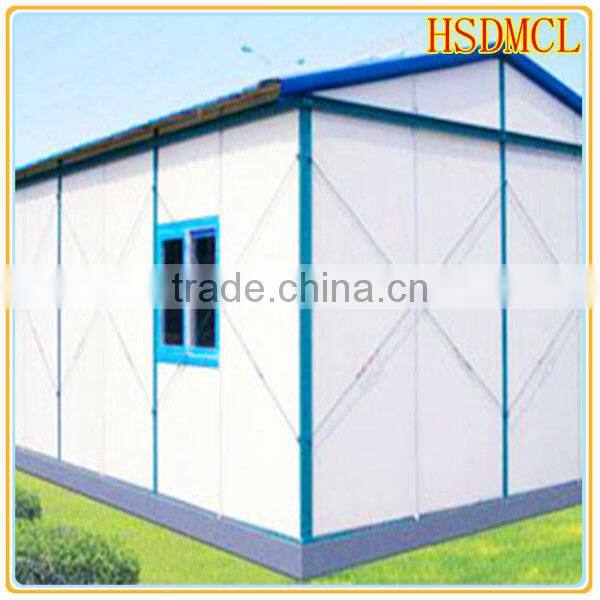

China low cost steel structure prefabricated portable modular house
Prefabricated House is the special house for the tourist attractions. Both beautiful and elegant with high quality material. can be designed it into more creative architectural styles with better thermal insulation performance and wall surfacing materials of different textures, which will definitely satisfy your need and be more cost-effective.
Steel structure prefabricated house specifications:
No |
Sort |
Name |
Specification |
1 |
Specification |
Length |
No limited |
2 |
Width |
12m, 15m, 18m |
|
3 |
Wall Height |
4000mm-7000mm |
|
5 |
Roof slope |
1:5 |
|
6 |
Standard accessory |
Master beam |
2-M300 steel, T=3.0mm, Material: Q345, galvanized |
7 |
Column |
2-M300 steel, T=3.0mm, Material: Q345, galvanized |
|
8 |
Roof Purline |
C-170 steel, T=2.3mm, Material:Q235, galvanized |
|
9 |
Wall Purline |
C-170 steel, T=2.3mm, Material:Q235, galvanized |
|
10 |
Compressed part |
Decorate and connect the wall, roof |
|
11 |
Bolt |
For connection the beam, column and purline |
|
12 |
Chemical Bolt |
For connection the column and foundation |
|
13 |
Wall board |
75mm EPS panel, 0.35mm color steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k. |
|
14 |
Roof board |
75mm EPS corrugated panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/·k. |
|
17 |
Door |
SIP door, in size of 4000mm*4000mm |
|
18 |
Window (W-1) |
PVC, white color, with dimension 1200*1200mm, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen. |
|
19 |
Option |
Decorative floor |
Ceramic tile floor |
20 |
Elevated ceiling |
Ceiling of mineral wool acoustic panel in room and aluminium panel in bathroom and kitchen |
|
21 |
Drainage system |
Provided plan, design and construction |
|
22 |
Electric system |
Provided plan, design and construction |
|
23 |
Technical parameter |
Live load: |
0.3KN/distance between columns :6m,0.50KN/distance between columns :4m |
24 |
Wind pressure: |
0.35KN/distance between columns :6m,0.50KN/distance between columns :4m |
|
25 |
Fire proof |
B2 grade |
|
26 |
Resistant temperature |
-20 to 50 |
|
27 |
Earthquake resistant |
7fission activate. |
Steel structure prefabricated house features:
1. Light steel structure prefabricated house with color steel sandwich panel
2. Good ability to assemble and disassemble for several times without damage.
3. Doors, windows and interior partitions can be flexibly fixed
4. Ceiling, floor, eaves, and color steel door are optional for customers.
5. Cost saving and transportation convenient
6. Anti-rust.
7. Widely used in construction site, office building, dormitory etc.
8. Single storey, double storey or three storey for choice
9. Single slope or double slope for choice
Steel structure prefabricated house materials:
1.Structure: light steel or steel as main frame/structure
2.Insulation material: sandwich panel ( EPS, PU,rock wool)
3.all and roofs: sandwich panel, corrugated sandwich panel, asphalt tile
4.Windows and doors: UPVC or aluminum window, sandwich panel doors/ UPVC door or steel security doors or wooden doors
Steel structure prefabricated house characteristics:
Steel structure prefabricated house technical parameters:
Steel structure prefabricated house advantags:
1) Beautiful appearance and various layouts
2) Good force resistance, heat insulation, water resistance
3) Fast and efficient installation, light construction easily linked together
4) Save transportation costs: easily transport and packed
5) Re-usable for a true cost effective option.
6) Shelf life: more than 30 years
7) Tailor-made welcomed: the out surface, interior decoration, size, inner fitting and others could be dealt with as your design.
8) Sample prefab house welcomed
9) Turn key projects welcomed: 100% ready to start live with plumbing & electrical system, decoration, appliance, furniture…
10) Visiting warmly welcomed
Steel structure prefabricated house qualify certifications:

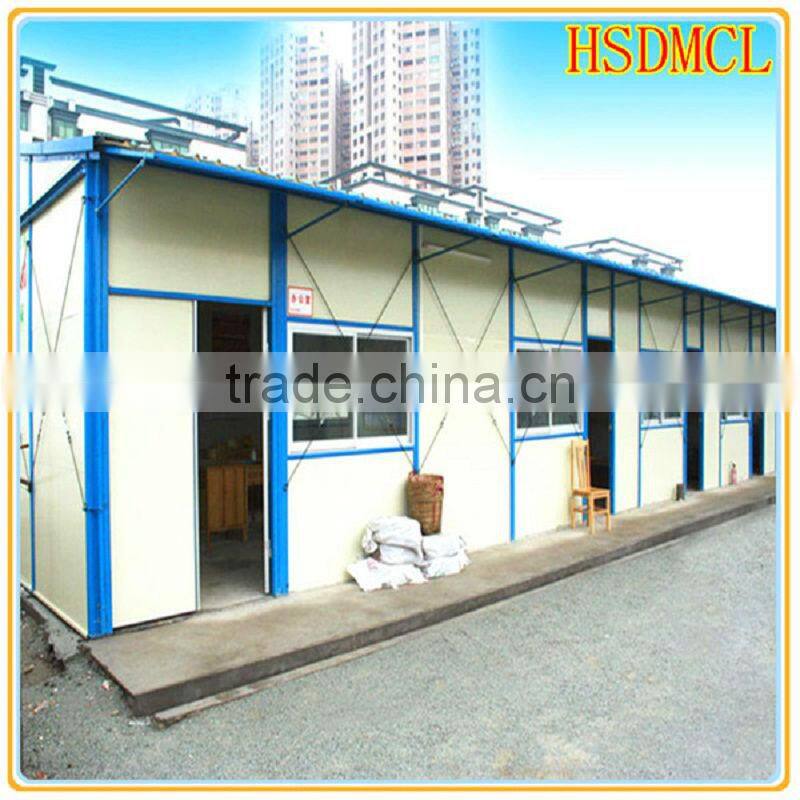

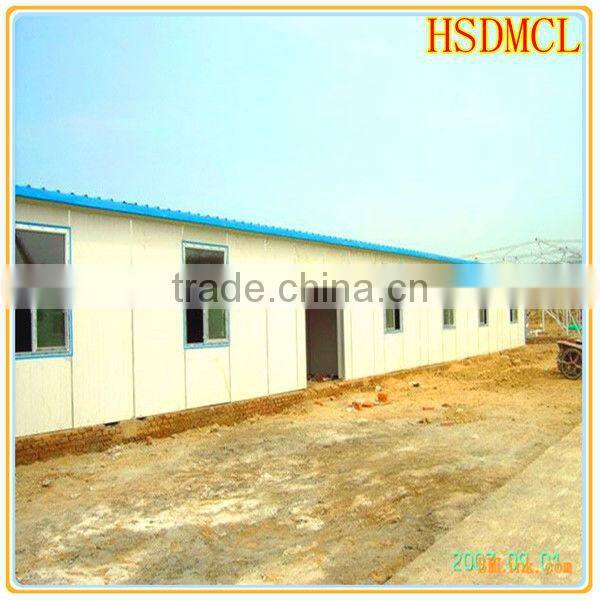

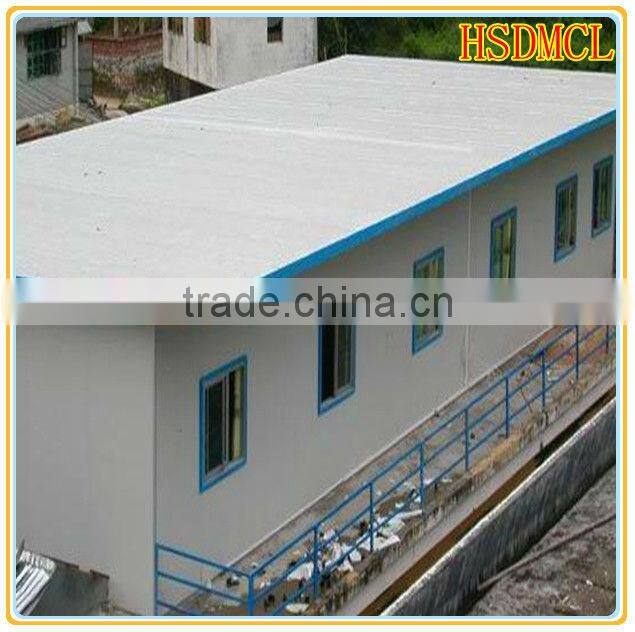

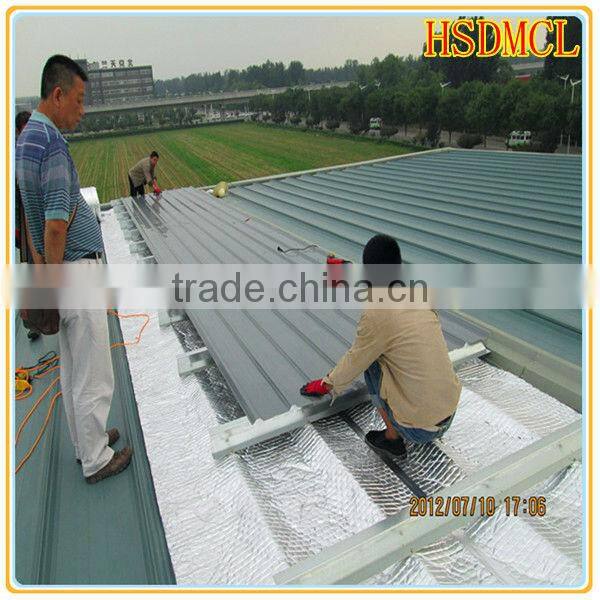

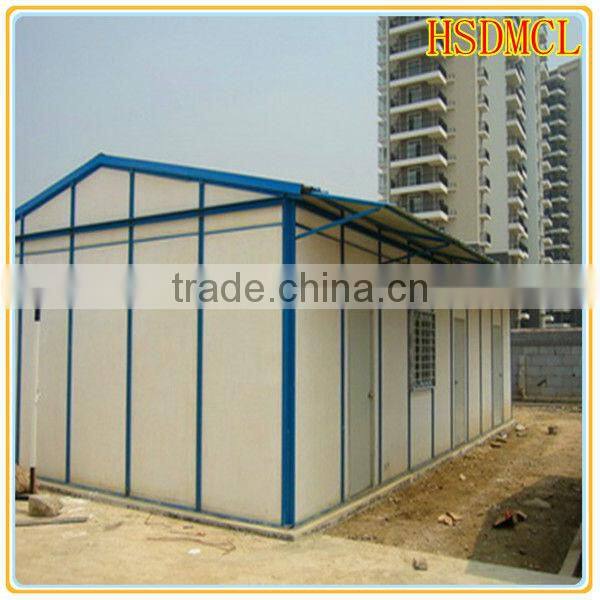

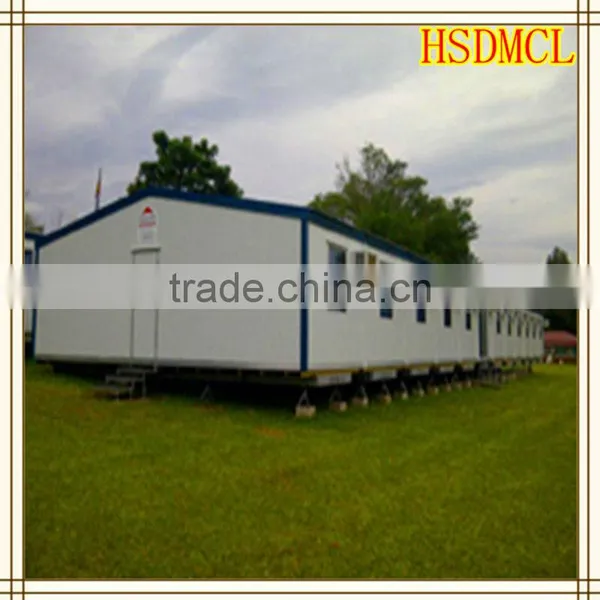

Steel structure prefabricated house pictures:
