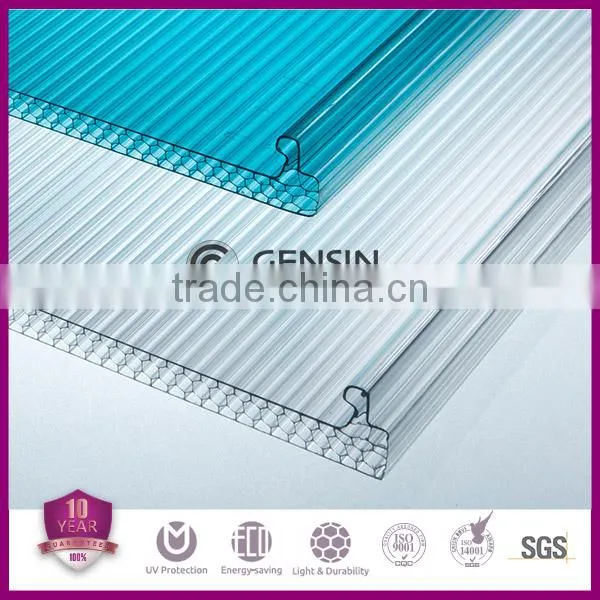

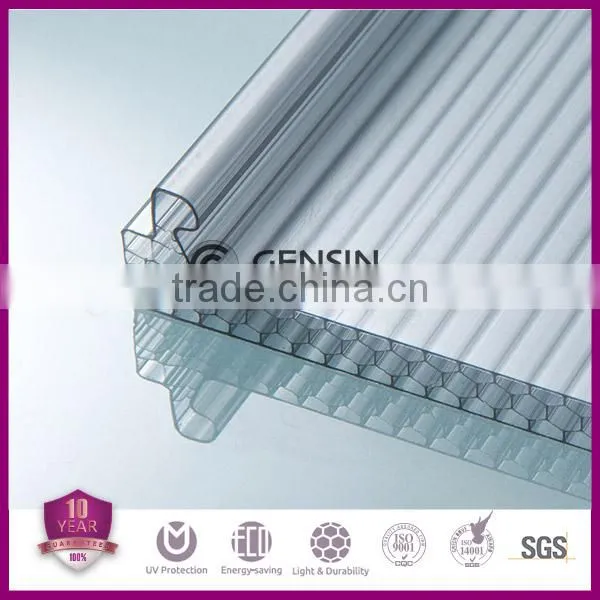

polycarbonate U-glazing system
Gensin U-lock sheet is an advanced construction system, its design has been proved it combined good lighting, heat insulation and high impact resistance features. I t provides a l.ight, non heat expansion and no leakage design, can bearing a very high weight loads. Advantages of Gensin systems make it a good choice for long-time use.
Specification:

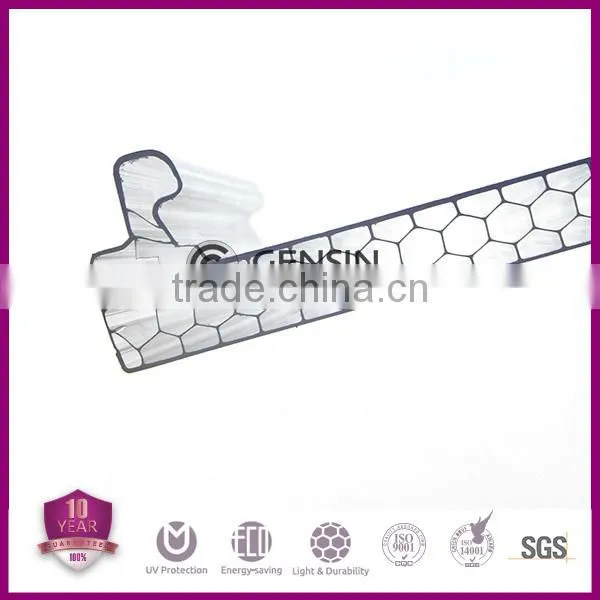

Gensin U-lock sheet is of multiwall structure, available with thickness of 8mm,10mm,16mm and 18mm, with all the accesories. Standard Gensin panels have UV protection on both sides(specific orders can be produced with UV protection on one side only ). Standard length is 6m.
Advantages:
1. Withstand high loads
2. No thermal expansion
3. Simple and quick to install
4. Prevent leakage
5. Thermal protection and insulation
6. Suitable for bending design
7. UV protection & 10 years gurantee
8. Intellective & light control series products
Property |
method |
conditions |
units |
Value |
Density |
D-790 |
|
g/cm3 |
1.2 |
Heat deflection temperature (HDT) |
D-648 |
Load:1.82Mpa |
°C |
130 |
Service temperature-short term |
|
|
°C |
-50-120 |
Service temperature–long term |
|
|
°C |
-50-100 |
Coefficient Of Linear Thermal Expansion |
D-696 |
|
cm/cm°C |
6.5*10-5 |
yield strength |
D-638 |
10mm/min |
Mpa |
62 |
elongation at break |
D-638 |
10mm/min |
% |
>80 |
falling weight impact test |
ISO 6603/1 |
|
J |
40-400 |
Applications :
- Buildings
- Business and retail building
- Sporting roofing
- With canopy footway
- Fairground
- Service station
- Entrance
- Natatorium roofing
- Color: clear, bronze, white opal, blue, orange, etc.
