Help CenterProjects Application 35mm Thickness Polycarbonate Roofing Sheet,Polycarbonate Hollow Sheet,Colored Polycarbonate Sheet Muliwall
Related Products
-
10 Years Guarantee 8/10mm Cheap Polycarbonate Greenhouse SheetUS$ 3 - 3.8MOQ: 2000 Square Meters -
32mm Polycarbonate Sheet Hollow For Stadium Project Skylite Roofing PC Panel High Light Transmission Heat Insulation UV CoatingUS$ 4.5 - 5MOQ: 1000 Square Meters
-
High Quality Thick Multiwall Hollow Polycarbonate Sheet 25mm Thickness UV Protector 10 Years Warranty PC Roofing PanelUS$ 4.5 - 5MOQ: 1000 Square Meters
-
Low U-value 100% Virgin Raw PC Resin 80 Micron UV Coating 38mm Thickness 8-wall Diamond Structure Polycarbonate Sheet MultiwallUS$ 4.5 - 5MOQ: 1000 Square Meters
-
Transparent Multi Wall Polycarbonate Sheet/triple WallUS$ 3.3 - 4MOQ: 1000 Square Meters
Specifications
Polycarbonate Roofing Sheet1.100% Virgin Sabic Raw Maeial
2.UV & 10-year quality warranty
3.Eight Walls Structure
High Quality Thick Multiwall Hollow Polycarbonate Sheet 25mm thickness UV Protector 10 Years Warranty PC Roofing Panel
Structure Display
8-wall Diamond Structure Hollow Sheet Data | ||||||||||||
|
Structure |
Item No. |
Thickness (mm) |
Weight (kg/sqm) |
Stand Width(mm) |
Rib Distance (mm) |
U-value (w/sqm*k) |
UV Side |
LT(%) Clear |
LT (%) Bronze |
LT(%) Opal White |
LT(%) Opal Green |
LT(%)
Opal Blue
|
|
8-wall diamond Structure |
LGC8DS25T3400 | 25 |
3.4 |
2100 | 20 |
1.4 |
1/2 |
48 |
20 | 15 |
||
LGC8DS32T3600 |
32 |
3.6 |
2100 |
20 |
1.3 |
1/2 |
46 |
20 |
15 |
|||
LGC8DS35T4000 |
35 |
4.0 |
2100 |
20 |
1.2 |
1/2 |
44 |
20 |
15 |
|||
LGC8DS38T4300 |
38 |
4.3 |
2100 |
20 |
1.15 |
1/2 |
43 |
20 |
15 |
|||
| Technical Data Of PC Sheet | |||
| No. | Characteristics | Unit | Data |
| 1 | Impact Strengt | J/m | 850 |
| 2 | Light Transmission | % | According to the Thickness and Color |
| 3 | Specific Gravity | g/m³ | 1.2 |
| 4 | Coefficient of Thermal Expansion | mm/m℃ | 0.065 |
| 5 | Service Temperature | ℃ | -40 to 120 |
| 6 | Heat Conductivity | W/m²℃ | 2.3 to 3.9 |
| 7 | Tensile Strength | N/mm² | >60 |
| 8 | Flexural Strength | N/mm² | 100 |
| 9 | Modulus Of Elasticity | MPa | 2400 |
| 10 | Tensile Stress At Break | MPa | >65 |
| 12 | Elongation At Break | % | 100 |
| 13 | Specific Heat | KJ/kg K | 1.17 |
| 14 | Heat Deflection Temperature | ℃ | 140 |
|
Advantage | |
1 |
Light weight |
2 |
Excellent impact resistance |
3 |
Good light transmission |
4 |
Good weather resistant and UV protection |
5 |
Sound and heat insulation |
6 |
Simple process and installation |
7 |
Grade B1 fire resistance |
8 |
An engineering plastic of excellent integration capability |
Polycarbonate sheet has high light transmittance, good impact resistance, good thermal insulation, easy installation, and widely used in construction and decoration.
For solid sheets, PE film on both sides, and packed on wooden pallets.
Every year we will take an active part in many related building materials exhibition and advertising exhibition

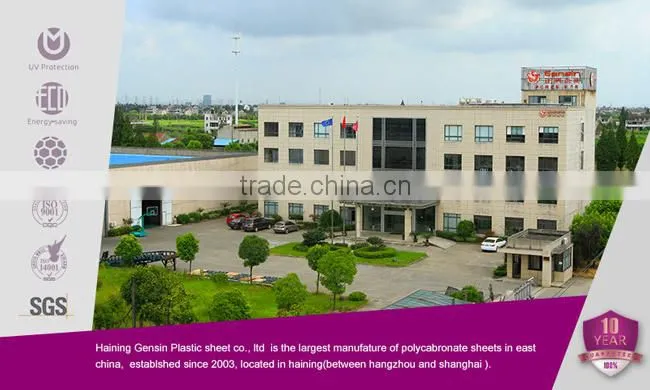

HAINING GENSIN Plastic sheet co., ltd is the largest manufature of polycabronate sheets in east china, establshed since 2003, located in haining(between Hangzhou and Shanghai ).
GENSIN has 12 production lines, ( one Itatian Union solid line ,5 pc hollow sheet lines, 2 polycarbonate solid sheet line, 4 pc profile line), more than 100 workstaff.
We can produce various kinds of sheets to satisfy the customers.
