Specifications
32mm Polycarbonate Sheet1.100% virgin Bayer or Sabic material
2.UV & 15-year quality warranty
3.ISO9001, ROhs

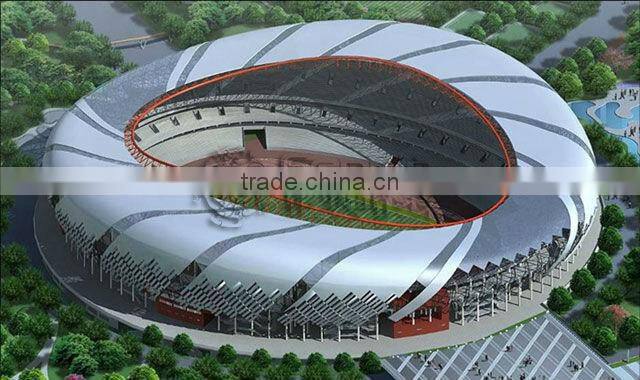

32mm Polycarbonate Sheet Hollow For Stadium Project Skylite Roofing PC Panel High Light Transmission Heat Insulation UV Coating

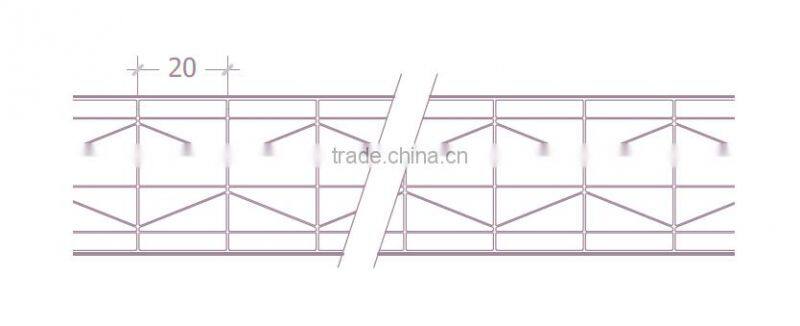

Structure Display
8-wall Diamond Structure Hollow Sheet Data | ||||||||||||
|
Structure |
Item No. |
Thickness (mm) |
Weight (kg/sqm) |
Stand Width(mm) |
Rib Distance (mm) |
U-value (w/sqm*k) |
UV Side |
LT(%) Clear |
LT (%) Bronze |
LT(%) Opal White |
LT(%) Opal Green |
LT(%)
Opal Blue
|
|
8-wall diamond Structure |
LGC8DS25T3400 | 25 |
3.4 |
2100 | 20 |
1.4 |
1/2 |
48 |
20 | 15 |
||
LGC8DS32T3600 |
32 |
3.6 |
2100 |
20 |
1.3 |
1/2 |
46 |
20 |
15 |
|||
LGC8DS35T4000 |
35 |
4.0 |
2100 |
20 |
1.2 |
1/2 |
44 |
20 |
15 |
|||
LGC8DS38T4300 |
38 |
4.3 |
2100 |
20 |
1.15 |
1/2 |
43 |
20 |
15 |
|||
| Technical Data Of PC Sheet | |||
| No. | Characteristics | Unit | Data |
| 1 | Impact Strengt | J/m | 850 |
| 2 | Light Transmission | % | According to the Thickness and Color |
| 3 | Specific Gravity | g/m³ | 1.2 |
| 4 | Coefficient of Thermal Expansion | mm/m℃ | 0.065 |
| 5 | Service Temperature | ℃ | -40 to 120 |
| 6 | Heat Conductivity | W/m²℃ | 2.3 to 3.9 |
| 7 | Tensile Strength | N/mm² | >60 |
| 8 | Flexural Strength | N/mm² | 100 |
| 9 | Modulus Of Elasticity | MPa | 2400 |
| 10 | Tensile Stress At Break | MPa | >65 |
| 12 | Elongation At Break | % | 100 |
| 13 | Specific Heat | KJ/kg K | 1.17 |
| 14 | Heat Deflection Temperature | ℃ | 140 |
|
Advantage | |
1 |
Light weight |
2 |
Excellent impact resistance |
3 |
Good light transmission |
4 |
Good weather resistant and UV protection |
5 |
Sound and heat insulation |
6 |
Simple process and installation |
7 |
Grade B1 fire resistance |
8 |
An engineering plastic of excellent integration capability |
Polycarbonate sheet has high light transmittance, good impact resistance, good thermal insulation, easy installation, and widely used in construction and decoration.
For solid sheets, PE film on both sides, and packed on wooden pallets.
Every year we will take an active part in many related building materials exhibition and advertising exhibition
HAINING GENSIN Plastic sheet co., ltd is the largest manufature of polycabronate sheets in east china, establshed since 2003, located in haining(between Hangzhou and Shanghai ).
GENSIN has 12 production lines, ( one Itatian Union solid line ,5 pc hollow sheet lines, 2 polycarbonate solid sheet line, 4 pc profile line), more than 100 workstaff.
We can produce various kinds of sheets to satisfy the customers.
