High Quality 4mm 6mm 8mm 10mm Twin Wall Polycarbonate Roofing Sheet

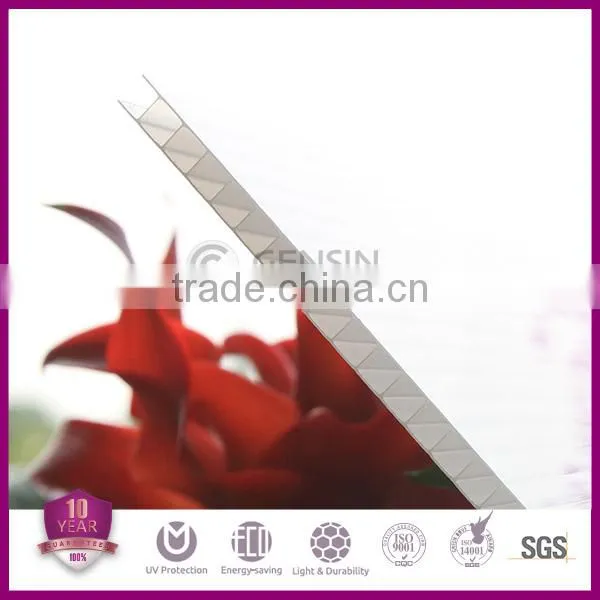

High Quality 4mm 6mm 8mm 10mm Twin Wall Polycarbonate Roofing Sheet photo-1

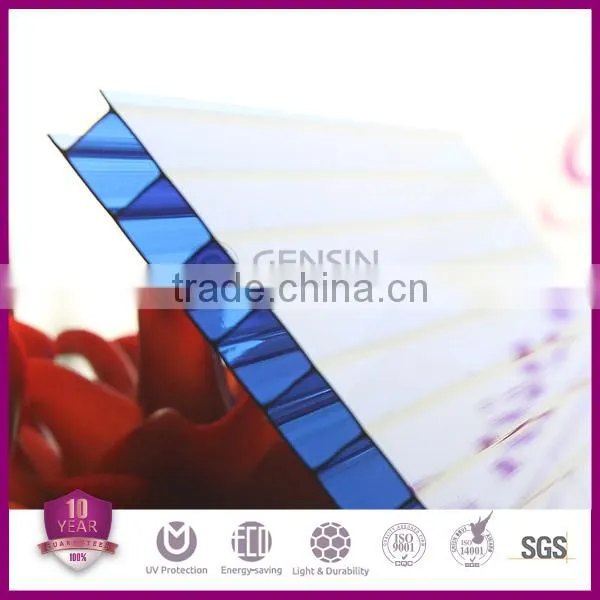

High Quality 4mm 6mm 8mm 10mm Twin Wall Polycarbonate Roofing Sheet photo-2
High Quality 4mm 6mm 8mm 10mm Twin Wall Polycarbonate Roofing Sheet photo-3
High Quality 4mm 6mm 8mm 10mm Twin Wall Polycarbonate Roofing Sheet photo-4
US$ 3 - 4 MOQ: 3000 Kilograms
Key Specifications
Get Latest Price
Size:
Large, can be custom made
Type:
Single-Span Agricultural Greenhouses
Cover Material:
PC Sheet
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Type Single-Span Agricultural Greenhouses
Cover Material PC Sheet
Model Number GA-106
Place of Origin Zhejiang, China
Brand Name GENSIN/OEM
Material Other, 100% Bayer/Sabic polycarbonate resin
Product Description

High quality 4mm 6mm 8mm 10mm twin wall polycarbonate roofing sheet

1. Polycarbonate roofing sheet standard specification
Thickness(mm)
Weight(kg/m2)
Minimun bending radius(mm)
Minimun span
Transparency(%)
Sound insulation(db)
4
0.9
700
1500
83
14
6
1.3
1050
2000
82
17
8
1.5
1400
2700
81
18
10
1.7
1750
3300
79
19
2. Technical data of polycarbonate roofing sheet
Impact strength
Transparency
Specific gravity
Coefficient of thermal expansion
Service temperature
Heat conductivity
2.1j/m-2.3j/m
40%-80%
1.2g/cm³
0.065mm/m°C
-40°C—120°C
3.0-3.9w/m²°C
Tensile strength
Flexural strength
Modulus of elasticity
Effect of sound insulation
Tensile stress at break
Elongation at break
≥60N/mm
100N/mm²
2400Mpa
10mm two laminates reduced 10db
≥65Mpa
>100%

3. Brief introduction of polycarbonate roofing sheet

A. Product range
Twin polycarbonate roofing sheet: 4mm, 6mm, 8mm, 10mm
B. Size
Width: 2100mm
Length: No limit(Recommend 5800, 6000, 11800, 12000mm to suit 20'container &40'container)
C. Color
clear/transparent, lake blue, green, blue, opal, white, brown/bronze, silvery gray, red, yellow, etc.
Detailed Images
Application
Our Company


Haining Gensin Plastic Sheet Co., Ltd is located in Zhejiang Province, between Hangzhou and Shanghai city. We are one of the largest manufacturers of polycabronate sheets in east China, established since 2003, located in Haining(between Hangzhou and Shanghai ). There are 100 employees in our company.

Raw material



We use 100% virgin Sabic and Bayer raw material to produce polycarbonate sheet. We assure you 10 years warranty of the product.

Packing & Delivery

1. Trade terms of product
Payment: L/C, T/T, Western Union
Port: Shanghai or Ningbo
MOQ:1*20GP
Supply Ability: 10000tons per year
OEM Accept
Delivery: 7-15days after receiving your deposit

2. Package&delivery of polycarbonate roofing sheet
Package: 1) Customer package request is acceptable
                 2) Standard package: both sides covered with PE film

Our Service

1. OEM Manufacturing welcome: Product, Package
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

FAQ

Q1. What is your terms of packing of polycarbonate roofing sheet?
A: Generally, we pack our goods with both sides PE film. If you have legally registered patent, we can pack the goods in your branded film  after getting your authorization letters, and in such way, it will cost you extra 500USD.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
