2100*5800/11800mm 100% virgin material 8mm pc hollow sun sheet
1. PC hollow sun sheet standard specification
| Thickness(mm) | Weight(kg/m2) | Minimun bending radius(mm) | Minimun span | Transparency(%) | Sound insulation(db) |
| 4 | 0.9 | 700 | 1500 | 83 | 14 |
| 6 | 1.3 | 1050 | 2000 | 82 | 17 |
| 8 | 1.5 | 1400 | 2700 | 81 | 18 |
| 10 | 1.7 | 1750 | 3300 | 79 | 19 |
2. Technical data
Impact strength |
Transparency | Specific grevity | Coefficient of thermal expansion | Service temperature | Heat conductivity |
| 2.1j/m-2.3j/m | 40%-80% | 1.2g/cm³ | 0.065mm/m°C | -40°C—120°C | 3.0-3.9w/m²°C |
| Tensile strength | Flexural strength | Modulus of elasticity | Effect of sound insulation | Tensile stress at break | Elongation at break |
| ≥60N/mm | 100N/mm² | 2400Mpa | 10mm two laminates reduced 10db | ≥65Mpa | >100% |
3. Features of pc hollow sun sheet
1) Mainly use pc hollow sun sheet cover,stainless frame,aluminum profile
2) Mainly use 6mm/8mm/10mm thickness pc hollow suns heet
3)Can provide UV protection and anti-frog pc hollow sun sheet
4) Colors:clear, blue, transparent, opal, green, bronze
5)Good heat insulation:
(K value):6mm--3.6W/m2K , 8mm-3.3W/m2K ,10mm-3.0W/m2K
4. Photo of pc hollow sun sheet
5. Application of pc hollow sun sheet
6. Raw material
1. Trade terms of product
Payment |
L/C,T/T,Western Union |
| Port | Shanghai or Ningbo |
| MOQ | 1*20GP |
| Supply Ability | 10000tons per year |
| OEM | Accept |
| Delivery | 7-15days after receiving your deposit |
2. Packing&delivery of 8mm pc hollow sun sheet
Package: 1) Customer package request is acceptable
2) Standard package: both sides covered with PE film

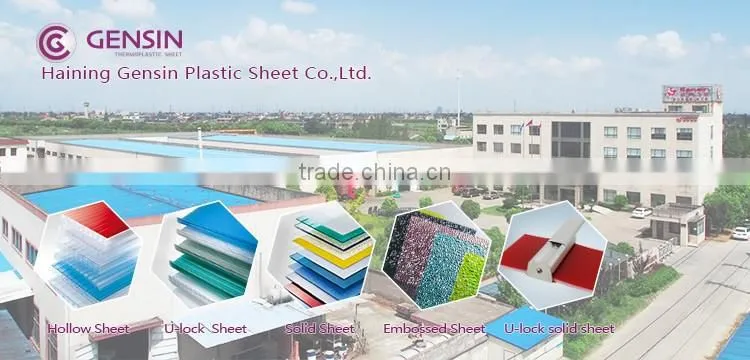

Company view
We are one of the largest manufaturers of polycabronate sheets in east China, established since 2003, located in Haining(between Hangzhou and Shanghai ). There are 100 emplyees in our company.
Exhibition
Why choose us
- GENSIN ONLY PROVIDE THE GRADE A POLYCABRONATE SHEET !
- WE HAVE 12 PRODUCTION LINES FOR DIFFERENT POLYCARBONATE SHEETS, GENSIN OWNS ONE UNION MACHINE.
- GENSIN HAS A GREAT SALES TEAM, FEEL FREE TO CONTACT US!
polycarbonate twinwall sheet polycarbonate solid sheet polycarbonate u-lock sheet
polycarbonate multiwall sheet polycarbonate embossed sheet polycarbonate corrugated sheet
1,HOW TO CHOOSE THE SUITABLE SHEETS FOR US?
If you are not sure that which kind of sheet that you will use,you can contact us,and tell us your application, our sales will introduce the suitable sheets for you, and we will give you more information about the sheets.
2,WHAT'S THE PRICE OF 2100*5800/11800mm 100% virgin material 8mm pc hollow sun sheet?
Please contact us,and inform your sheets' thickness,size,quantity and other requirements,our sales will quote our best price to you. Also you can send us your project detail drawing, we will check and quote to you.
3,THERE IS NO SHEETS AND PROFILES THAT I WANT?
If that, you can send us your special sheets or profiles drawing with details, we can quote to you
4. DO YOU HAVE ANY INSTANT CHAT TOOL?
Skype: swj0712
Wahtsapp:86-15305732739
Email:kelly(at)
