China factory high quality mini glass tempering furnace processing line

Specifications

1. Tempering type: bent tempering furnace
2. Production Capacity: 15-18 loads/h
3. Driving power: 5-20KW
4. Certification: CE

     China factory high quality mini glass tempering furnace                                     processing line

1. Brief Introduction

HPW series tempering furnaces are used to manufacture flat and curved tempered and heatstrengthened glass for architectural, furniture, home appliance, decoration, solar panels usage etc. It includes the loading section, heating section, flat tempering section and unloading section.

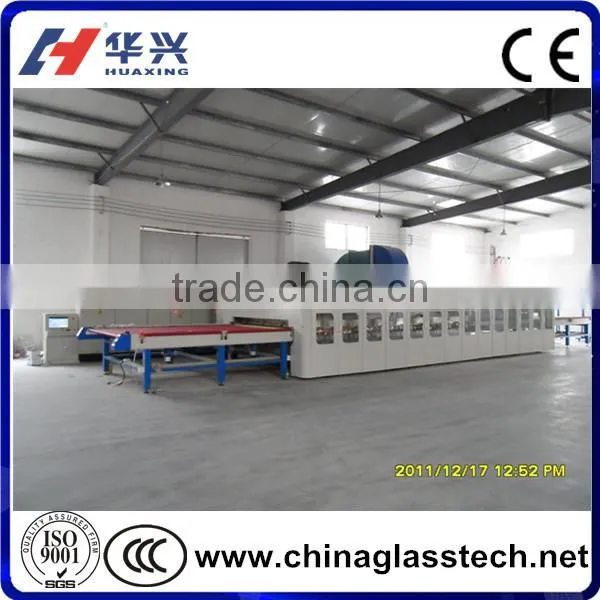

2. Pictures of mini glass tempering furnace

3. HPQ6024 Technical Parameter For your Reference



Max. Glass size	2800mm*2400mm(4mm)
	6000mm*2400mm(5mm)
Min. Glass size	300mm*200mm
Glass thickness	4-19mm





Heating power	925kw
Blower power	220kw (Equipped inverter and shock mount )
Total power	1410kw
Necessary electric power	≥1250KVA
Energy & Consumption Proportion	≤4.2 KWH/m2
Yield	≥98%
Curvature of finished product	≤1.5/1000mm
Waviness of finished product	≤0.15/300mm(above 6mm,edge)
	≤0.20/300mm(4mm,5mm, edge)
	≤0.1/300mm(middle)



Other types



Model	Maximum  Specification (mm)	Minimum  Specification (mm)	Thickness (mm)	Capacity (5mm) m2/hour	Power  supply  capacity (KVA)
HP1506	1500*600	90*90	3-8	14	≥100
HP1508	1500*800	100*100	3-12	18	≥150
HP2010	2000*1000	100*100	3-12	30	≥200
HP2012	2000*1200	120*120	3-12	37	≥250
HP2512	2500*1200	120*120	3-12	46	≥250
HP2515	2500*1500	150*250	3-19	57	≥315
HP3015	3000*1500	150*250	3-19	69	≥400
HP2518	2500*1800	150*250	3-19	69	≥400
HP3018	3000*1800	150*250	3-19	83	≥400
HP3618	3660*1800	150*250	3-19	99	≥500
HP3021	3000*2100	150*250	4-19	96	≥500
HP3621	3660*2100	150*250	4-19	116	≥600
HP4221	4200*2100	150*250	4-19	135	≥700
HP3624	3660*2440	150*250	4-19	132	≥630
HP4224	4200*2440	150*250	4-19	154	≥800
HP5024	5000*2440	150*250	4-19	184	≥1000
HP6024	6000*2440	150*250	5-22	220	≥1000
HP5028	5000*2800	200*300	5-22	214	≥1000
HP6028	6000*2800	200*300	5-22	257	≥1250

4. Suitable Glass Type

 1)   Clear float glass

2)   Reflective glass

3)   Low-E glass

4)   Patterned glass

5)   color float glass

6)   single face silk screen glass

7)   super white pattern glass

5. Finished Glass Show



6.Technical Features

1)  Optimum glass flatness.

2)  Upper quench and lower quench are separatel controlled, so it's easy for them adjustment and

control of the glass flatness.

3)  Reasonable air hole layout and swing of rollers removing tempering stress spot.

4)  Advanced heating system.

5)  Special design heating system and intelligent power adjustment make the temperaturecontrol     more accurate.



7. Packing and Shipping

Seaworthy and fumigated wooden cases/end-caps with powder or paper inter-layer which assure your goods intact till to your warehouse.



8. Certificate





9. Factory Picture

With more than 50 years history and nearly 20 years glass products exporting experience, we enjoy a high reputation among the same industry both at home and abroad.



10. Exhibition

As a company with more than 50 years history, we attend the Glass Exhibition domestic and abroad nearly every year. We had not only got a lot of business opportunities but also enhanced the popularity of our company. The related picture of trade show as follow.
