CE&CCC automatic Energy saving jet convection curved/flat tempered glass production line

Specifications

1.Fan convection
2.Cr15Ni60 electric furnace wire
3.OMRON system
4.Schneider frequency changer,also can change
5.CE

CE&CCC automatic Energy saving jet double row fan curved/flat glass tempering furnace

1.Brief introduction

This glass tempering machine is used for producing large-size flat, bent tempered glass for

architecture,and multi-curvature bent tempered glass for automobile, shower cabins and kitchen etc.

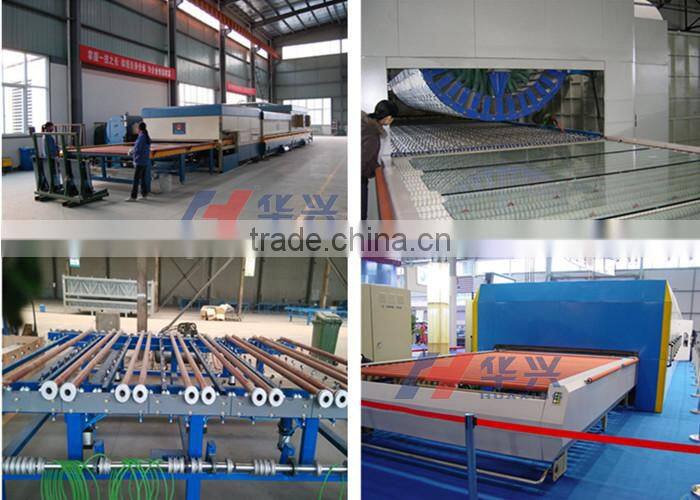

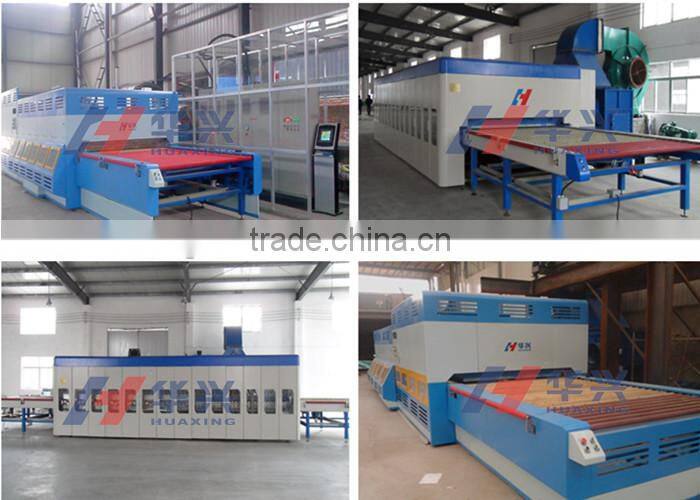

2. Tempered glass production line picture

3.Technical parameter

type	Max. size(mm)	Min. size(mm)	Thickness(mm)	Capacity(m2/h)	Power supply capacity(KVA)
HP1506	1500*600	90*90	3-8	14	≥100
HP1508	1500*800	100*100	3-12	18	≥150
HP2010	2000*1000	100*100	3-12	30	≥200
HP2012	2000*1200	120*120	3-12	37	≥250
HP2512	2500*1200	120*120	3-12	46	≥250
HP2515	2500*1500	150*250	3-19	57	≥315
HP3015	3000*1500	150*250	3-19	69	≥400
HP2518	2500*1800	150*250	3-19	69	≥400
HP3018	3000*1800	150*250	3-19	83	≥400
HP3618	3660*1800	150*250	3-19	99	≥500
HP3021	3000*2100	150*250	4-19	96	≥500
HP3621	3660*2100	150*250	4-19	116	≥600
HP4221	4200*2100	150*250	4-19	135	≥700
HP3624	3660*2440	150*250	4-19	132	≥630
HP4224	4200*2440	150*250	4-19	154	≥800
HP5024	5000*2440	150*250	4-19	184	≥1000
HP6024	6000*2440	150*250	5-22	220	≥1000
HP5028	5000*2800	200*300	5-22	214	≥1000
HP6028	6000*2800	200*300	5-22	257	≥1250

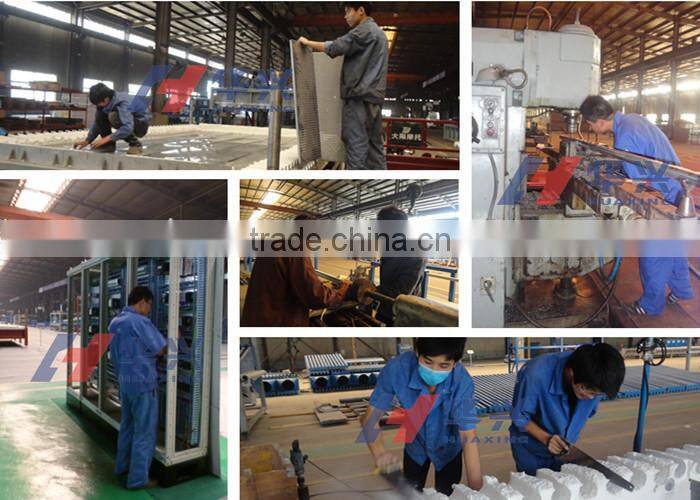

 4.Detail picture

 5.Quality standard

1)The product meets Chinese national quality standard<GB 15763.2-2005>

2)Glass stress equilibrium, particle

3)Quality of all finished glass is the same

4) Heat resistance: conform to international standard

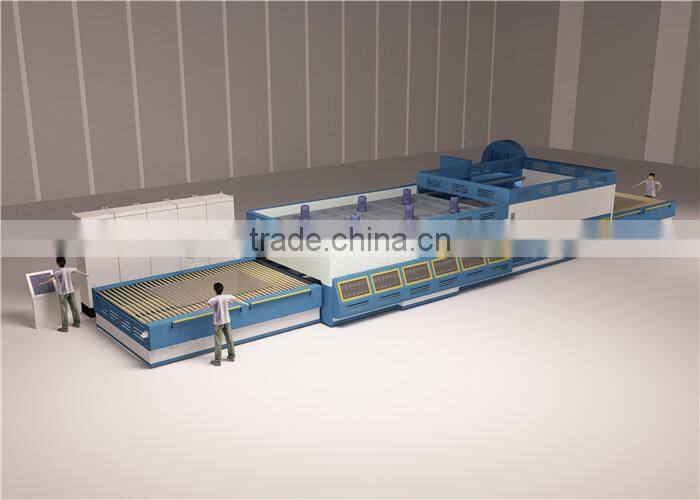

6.Designing picuture

7.Electric parts configuration

Electric parts	brand
Electrical system	Omron(Japan),Siemens(Optional)
Ceramic rollers	Zhongcai(China famous brand), VSV(Optional)
Insulated cotton	Luyang(China), ISOLITE(Optional)
Heating wire	Cr15Ni60
motor	Made in china, ABB(Optional)
Frequency inverter	Schneider(France),CONVO(Germany),Mitsubishi(Optional)

8.Exhibition picture

9.Technical features

1)Adopting Jet Convection heating technology and have a flat quenching section and a bending quenching section

2)Each bending system has one individual fine adjusting device, slightly adjusting the local curve necessarily for the best possible quality products.
3)Adopting precise screw pairs in bending mechanism, which ensures smooth curve of bent glass. There will be no accumulated error in bending mechanism.
4)Different curves can be set and achieved by simply input the numbers via human-machine interface. With precise screw pairs in bending mechanism and servo control system, the end products are of high quality.

10.Factory profile

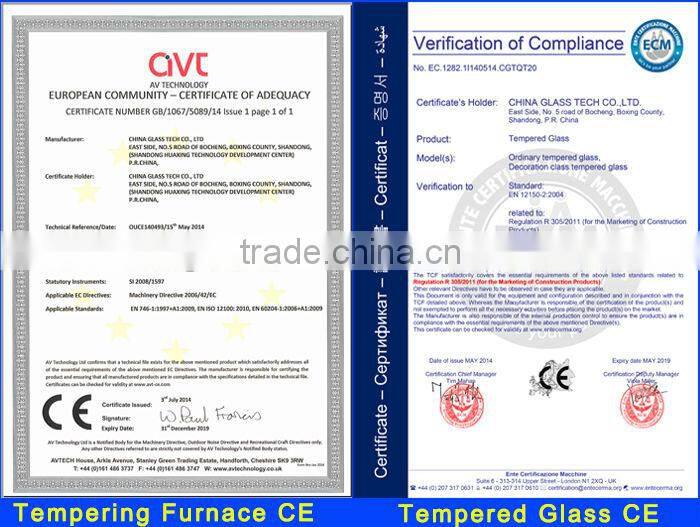

11. CE Certification



11. Our service

1.Free home installment and technical training, and guiding you how to operate it.

2.Offering operation parameter for processing different laminated glasses, such as tempered

glass, float glass, real flower glass and picture laminated glass, etc
