Specifications
1.Double row fan2.Uniform heating
3.Schneider frequency changer,also can change
4.Cr15Ni60 electric furnace wire
5.CE
Size customized CE Certificate Jet Convection Bending Tempering Glass Kiln For Sale
1.Brief introduction of tempering glas kiln for sale
Bending tempering section in this furnace adopts longitudinal bending structure (bending direction of the glass is same as its moving direction) and steel driving rollers.
Bending system consists of several bending devices, each of which can bend by itself and has an indiviaul fine adjusting device.
With precise screw pairs in bending mechanism and German servo control system, the end products are of high quality.

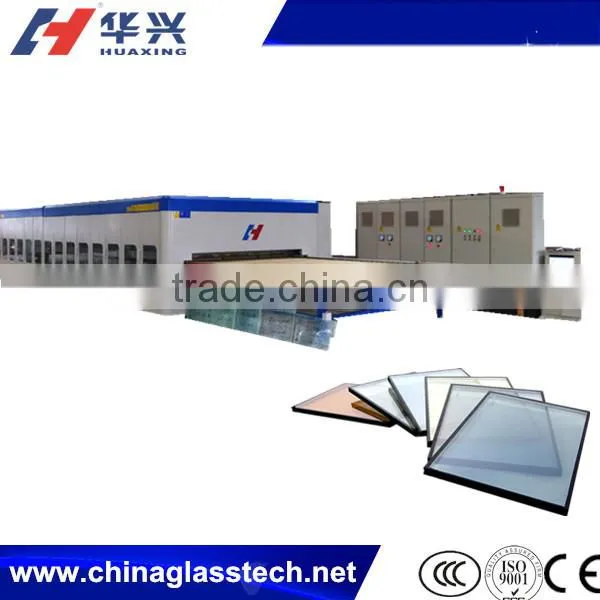

2.Picture of tempering glas kiln for sale
3.Technical parameter of tempering glas kiln for sale
Type | Max. size(mm) | Min. size(mm) | Thickness(mm) | Capacity(m2/h) | Power supply capacity(KVA) |
HP1506 | 1500*600 | 90*90 | 3-8 | 14 | ≥100 |
HP1508 | 1500*800 | 100*100 | 3-12 | 18 | ≥150 |
HP2010 | 2000*1000 | 100*100 | 3-12 | 30 | ≥200 |
HP2012 | 2000*1200 | 120*120 | 3-12 | 37 | ≥250 |
HP2512 | 2500*1200 | 120*120 | 3-12 | 46 | ≥250 |
HP2515 | 2500*1500 | 150*250 | 3-19 | 57 | ≥315 |
HP3015 | 3000*1500 | 150*250 | 3-19 | 69 | ≥400 |
HP2518 | 2500*1800 | 150*250 | 3-19 | 69 | ≥400 |
HP3018 | 3000*1800 | 150*250 | 3-19 | 83 | ≥400 |
HP3618 | 3660*1800 | 150*250 | 3-19 | 99 | ≥500 |
HP3021 | 3000*2100 | 150*250 | 4-19 | 96 | ≥500 |
HP3621 | 3660*2100 | 150*250 | 4-19 | 116 | ≥600 |
HP4221 | 4200*2100 | 150*250 | 4-19 | 135 | ≥700 |
HP3624 | 3660*2440 | 150*250 | 4-19 | 132 | ≥630 |
HP4224 | 4200*2440 | 150*250 | 4-19 | 154 | ≥800 |
HP5024 | 5000*2440 | 150*250 | 4-19 | 184 | ≥1000 |
HP6024 | 6000*2440 | 150*250 | 5-22 | 220 | ≥1000 |
HP5028 | 5000*2800 | 200*300 | 5-22 | 214 | ≥1000 |
HP6028 | 6000*2800 | 200*300 | 5-22 | 257 | ≥1250 |
4. Factory Picture
Only our glass product factory covers 60000 square meters production workshop and professional production line. With more than 50 years’ history and nearly 20 years’ glass products exporting experience, it enjoys a high reputation among the same industry both at home and abroad.
5.Quality standard
1)The product meets Chinese national quality standard<GB 15763.2-2005>
2)Glass stress equilibrium, particle
3)Quality of all finished glass is the same
4) Heat resistance: conform to international standard
6. Technical features
1) Adopting Jet Convection heating technology and have a flat quenching section and a bending
quenching section
2) Each bending system has one individual fine adjusting device, slightly adjusting the local curve
necessarily for the best possible quality products.
3) Adopting precise screw pairs in bending mechanism, which ensures smooth curve of bent glass.
There will be no accumulated error in bending mechanism.
7.Customer visiting
8.Electric parts configuration
Electric parts | brand |
Electrical system | Omron(Japan),Siemens(Optional) |
Ceramic rollers | Zhongcai(China famous brand), VSV(Optional) |
Insulated cotton | Luyang(China), ISOLITE(Optional) |
Heating wire | Cr15Ni60 |
motor | Made in china, ABB(Optional) |
Frequency inverter | Schneider(France),CONVO(Germany),Mitsubishi(Optional) |
9.Exhibition picture
10. Our service
1. Free home installment and technical training, and guiding you how to operate it.
2. Offering operation parameter for processing different laminated glasses, such as tempered
glass, float glass, real flower glass and picture laminated glass, etc
11.Contact
