China Advanced Flat/Curved Tempering Glass Annealing Furnace
1.Brief introduction
Tempering glass machinery is used for producing flat or bent tempered glass for windows, doors, shower cabins and kitchen,cartain wall,etc.

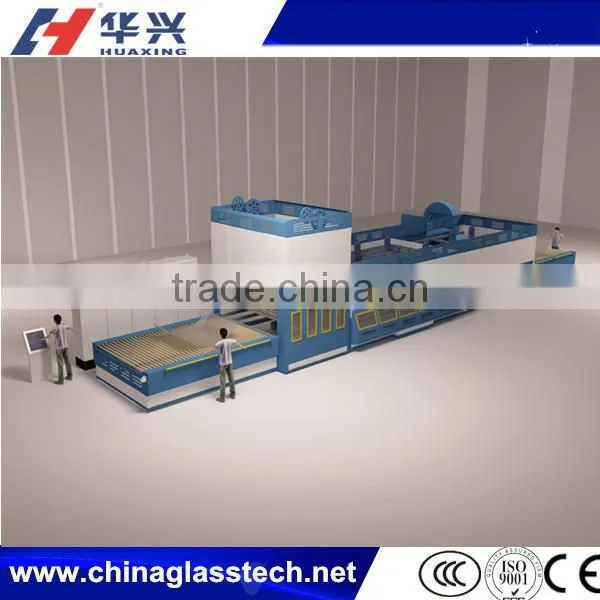

2.Picture of glass machinery
3.Technical parameter of glass machinery
type | Max. size(mm) | Min. size(mm) | Thickness (mm) | Capacity (m2/h) | Power supply capacity(KVA) |
HP1506 | 1500*600 | 90*90 | 3-8 | 14 | ≥100 |
HP1508 | 1500*800 | 100*100 | 3-12 | 18 | ≥150 |
HP2010 | 2000*1000 | 100*100 | 3-12 | 30 | ≥200 |
HP2012 | 2000*1200 | 120*120 | 3-12 | 37 | ≥250 |
HP2512 | 2500*1200 | 120*120 | 3-12 | 46 | ≥250 |
HP2515 | 2500*1500 | 150*250 | 3-19 | 57 | ≥315 |
HP3015 | 3000*1500 | 150*250 | 3-19 | 69 | ≥400 |
HP2518 | 2500*1800 | 150*250 | 3-19 | 69 | ≥400 |
HP3018 | 3000*1800 | 150*250 | 3-19 | 83 | ≥400 |
HP3618 | 3660*1800 | 150*250 | 3-19 | 99 | ≥500 |
HP3021 | 3000*2100 | 150*250 | 4-19 | 96 | ≥500 |
HP3621 | 3660*2100 | 150*250 | 4-19 | 116 | ≥600 |
HP4221 | 4200*2100 | 150*250 | 4-19 | 135 | ≥700 |
HP3624 | 3660*2440 | 150*250 | 4-19 | 132 | ≥630 |
HP4224 | 4200*2440 | 150*250 | 4-19 | 154 | ≥800 |
HP5024 | 5000*2440 | 150*250 | 4-19 | 184 | ≥1000 |
HP6024 | 6000*2440 | 150*250 | 5-22 | 220 | ≥1000 |
HP5028 | 5000*2800 | 200*300 | 5-22 | 214 | ≥1000 |
HP6028 | 6000*2800 | 200*300 | 5-22 | 257 | ≥1250 |
4.Processable glass type
1)Clear float glass 2)Reflective glass 3)Low-E glass 4)Patterned glass 5) color float glass 6)single face silk screen glass 7)super white pattern glass
5.Factory pictures
6.Advantages of toughened glass machinery
a.5mm H style steel for main frame
b.3mm steel for side board
c. servo motor
d.siemens system
e.VSV ceramic roller
f. Schneider transducer
g.Aeop insulation cotton
h.ABB electrical machine
i.Cr15NI60 furnace heating wire
7.Exhibition pictures
Every year we attend exhibitions both at home and abroad.
8.Customers visiting pictures
We have already export our products all over the world. Every year, many customer come to visit us and establish long business with us.
9.After-sales service
a.1 year warranty period
b. engineers available to service machinery overseas
