Wall Mounted Gas Boilers Connect to Radiator

Glary gas boiler, gas water heater as a kind of home appliance, wall hung gas boiler are safer with closed system

JLG23-B800 is a domestic heating device used in cold winter

1) The boilers have 2 functions

  - Supply Heating for house, apartment. It connect with radiator/floor heating pipe to combine a system to working.

. - Shower Hot Water for house, apartment.

These 2 function work separately and work in different temperature range.

2) Heating function has 2 models to select,

  - they can change each other easily through "Model changer" on the boiler bottom.

    Floor heating: 30~55°C;

    Radiator: 30~80°C,

   it is free to set up the temperature.

3) Domestic hot water is prior.

 -  When hot water faucet is opened the gas boiler convert from Heating mode to Domestic hot water mode.

     Until user close water faucet the boiler will continue to supply heating.

Above action is controlled automatically by the Microcomputer inside boiler.

4) Anti-freeze protection.

 - When the room temperature drop to below 7°C the circulating water pump operate and modulating gas valve allows to warm the water to 30°C then boiler stop working.

     Above acton also be controlled by the Microcomputer inside boiler.

5) Pressure release safety valve.

 - When the Heating system pressure reach to 3 bar the safety valve will be opened to relief the high pressure automatically.

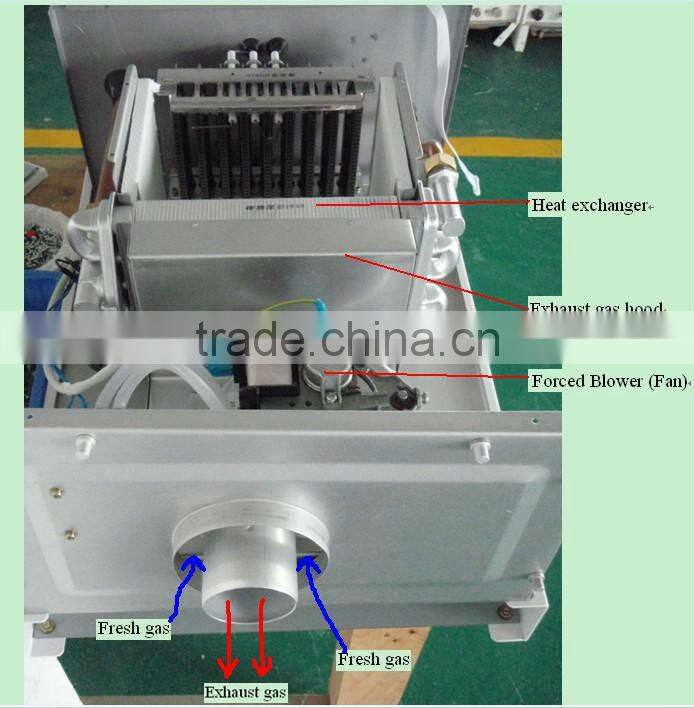

7) Exhaust by powerful blower.

All-round drawing

Production Licence of gas-fired product approved by

China's General Administration of Quality Supervision
