Help Center2015 Hot Selling Brass Water Manifold for Under Floor Heating System Chinese Patent Product
Related Products
-
Brass Manifold For Water Circulation Floor Heating SystemUS$ 12.6 - 43.13MOQ: 100 Pieces -
180 Degree Exhaust Water Brass Floor Heating ManifoldUS$ 12.6 - 43.13MOQ: 100 Pieces
-
Factory Price Brass Manifold for Water Floor HeatingUS$ 12.6 - 43.13MOQ: 100 Pieces
-
Hot Water PE-RT Floor Heating PipeUS$ 0.2 - 1MOQ: 10000 Meters
-
Fosite PE-RT Pipe OEMUS$ 0.23 - 0.97MOQ: 1000 Meters
| Packaging Details: | packed in standrad export carton or as client's requirments |
| Delivery Detail: | 15-30 working days |
Specifications
1.Nominal Pressure: 1.6MPa
2.Working Medium: water,no-causticity liquid, saturated steam
3.Working temperture:-20<T<150
Type | Brass valve series |
Item Code | RS-13009 |
Brand | RISEN |
Material | Brass,CW617N or DZR or HPB59-1 |
Technics | forged |
Size | 1/2’’,3/4’’,1’’,2’’,3’’,4’’ |
Surface | natural color,nickel plated,chrome plated |
| Connect way | thread/pex/flanged |
construct | reducer port |
Weight | According to customer's request |
Thread | BSP/NPT |
| Certificate | ISO,CE,etc |
Description:

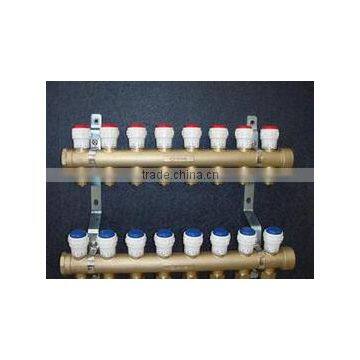

The distribution manifolds are designed for low-temperature hot water radiant panel heating systems.
The supply distribution manifold equipped with built-in balancing valves, and the return distribution manifold equipped with built-in shut-off valves suitable for electro-thermal actuator which is controlled by room thermostat to meet your individual requirement for comfortable room temperature
The heating circuit manifold includes:
- Manifold supply and return bars
- Brackets with sound absorption lining for wall mounting of manifold, 2 pcs. per manifold
- Flow meter installed in the supply bar, to determine and display the flow rate of heating circuits manifolds, 1 piece for each outlet
- Control valve installed in the return bar, for exact adjustment of water quantities, 1 piece for each outlet
- Ball valves, 2 pcs. per manifold
- Automatical vent valve, 2 piece,
- Tee connector, 2 pcs. per manifold
- Drain vavle 2 pcs per manifold
| Material: Brass Hpb59-1 |
| Pip-connector size fork outlet:20mm*2,16mm*2 multilayer or pex pipe |
| pip-connector distance:45mm,50mm,60mm,70mm(Optional) |
| Wall thickness:3.5mm |
| Loop:2 loops to12 loops (Optional) |
| Applied Medium:Water |
| Max Pressure: 10 bar |
| Max Temperature: 110°C |
| Certificate: ISO9001,CE,ROHS |
| Surface: Polished and chrome plated |
| Seal compose material:EPDM or NBR |
| Packing: bubble bag/inner box/outer box/pallet |
Features:
1. Hot-stamped brass body
2.Nature color, surface anticorrosion processing
3.Outlets in composite with the main body to exterminate the leakage possibility of manifolds
4.Axial static seal technology
5.No O-ring for pipe fittings
6.Freestyle combination for multi-loops
