250*2 Grey UPVC Pipe Saddle Clamp/Clamp Saddle
- 10000 Piece / Pieces per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Material: | Other, PVC | Technics: | Casting | Type: | Elbow |
Brand Name: | Fosite | Connection: | Other, Male, fast connecting | Shape: | Reducing |
Head Code: | Other, Round |
Product Description

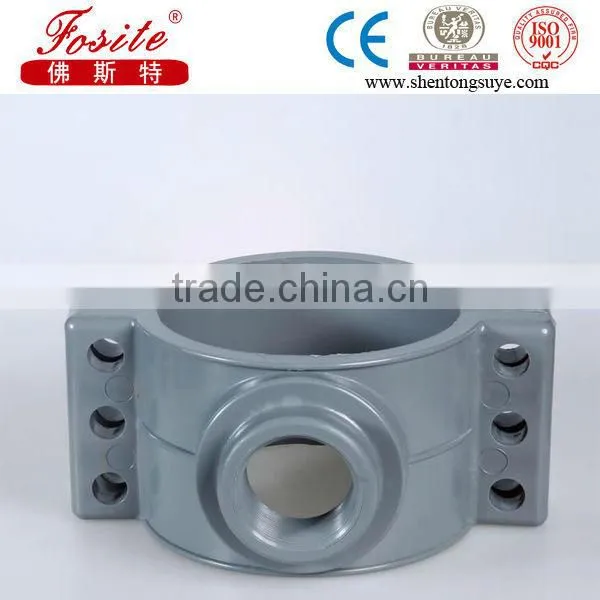

250*2 Grey UPVC Pipe Saddle Clamp/Clamp Saddle
material: CPVC UPVC
size: 63-400mm
OEM/Design service offered
application for water supply pipe
Style: clamp saddle
Media: Water
Connection: Gluing, Solvent Joint (Rubber Ring)
Pressure: PN10/PN16
Standard: GB10002.2-1998; ISO4422.2-1996
Certification: ISO9001:2000; ISO14001:2004
Advantage: Light weight, High strength, High flow capability, Easy
installation, Endurable, Economic, Nontoxic, Corrosion
resistance, Recyclable, Environment-friendly
Physical properties
Density, 1350-1460; Vicat softening temperature≥74;
Hydroscopicity≤40; Oven test, no signs of bubbles or cracks
Mechanical properties Drop test, no cracks with all samples; Hydraulic test, no leak
Size | Packing | Size | Packing |
Φ63×1″ | 36 | Φ160×21/2″ | 15 |
Φ75×1″ | 36 | Φ200×11/2″ | 10 |
Φ75×11/2″ | 36 | Φ200×2″ | 10 |
Φ90×11/2″ | 30 | Φ200×21/2″ | 10 |
Φ110×3/8″ | 15 | Φ225×1/2″ | 6 |
Φ110×1/2″ | 15 | Φ225×3/4″ | 6 |
Φ110×3/4″ | 15 | Φ225×1″ | 6 |
Φ110×1″ | 15 | Φ225×11/2″ | 6 |
Φ110×11/2″ | 15 | Φ225×2″ | 6 |
Φ110×2″ | 15 | Φ225×21/2″ | 6 |
Φ110×21/2″ | 15 | Φ250×2″ | 6 |
Φ125×11/2″ | 15 | Φ250×21/2″ | 6 |
Φ125×2″ | 15 | Φ250×3″ | 6 |
Φ125×21/2″ | 15 | Φ315×2″ | 2 |
Φ160×3/8″ | 15 | Φ315×21/2″ | 2 |
Φ160×1/2″ | 15 | Φ315×3″ | 2 |
Φ160×3/4″ | 15 | Φ315×4″ | 2 |
Φ160×1″ | 15 | Φ315×110″ | 2 |
Φ160×11/2″ | 15 | Φ315×160″ | 2 |
Φ160×2″ | 15 | Φ400×200″ | 1 |
Properties of Products
1. Light weight
The weight per unit is only 1/6 of the cast-iron pipes,so the transport is quite convennient.
2. High strength
The strength can get to 45Mpa.
3. Low resistance
The internal surface of the pipe is smooth with no dirt and no blickage.The loss is 30% lower
than that of the cast-iron pipes.
4. Corrosion reistance
It has a good quality of acid resistance,alkali resistance,chemicals resistance and electro-
Chemistry resistance,so the point of corrosion will not occur during the use.
5. Easy instal lation
It adopts the glue and soft joining.Therefore,the installation is quite easy and the sealing is
Reliable
6. Long service life
The service time can reach more than 50 years nuder the normal working pressure.
7. Low cost
The cost of the transport and instal lation is low,and the total engineering cost is 30-40% lower
than of the cast-iron pipes.
8. Innocuity and sanitation
The product conforms to the standards of the drink water and water transported has no second pollu-
tion.
Connecting the soft joining pipes and fittings:
At first, clean the inside wall of the extended interface pipes and the outside one of the plug-in part of the vertical pipes. Then measure the length of the extended interface and make a mark on the plug-in vertical pipes.(The marked length should be shorter than the actually measured one ) Thirdly, turn the rubber ring into the fillister of the extended interface.(Make the side of the rubber ring with a bevel outward and manicure the plug-in pipes into a bevel with a steel file or a grinding wheel. The products of our factory have the bevel surface automatically.) Lubricate the rubber ring and the plug-in part of the vertical pipes.Finally, insert the plug-in part of the vertical pipes into the extended interface and place it in the marked position with a line machine.(Either use a line machine or a lever during the process of installation in terms of the practical situation.
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
3.What is your packing?
A: usually plastic bags,carton,can be packed as your require.
