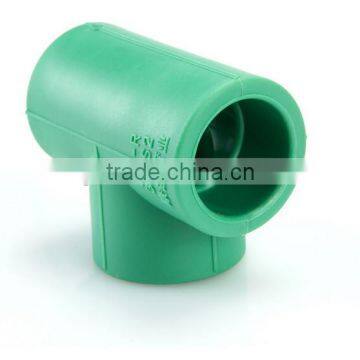

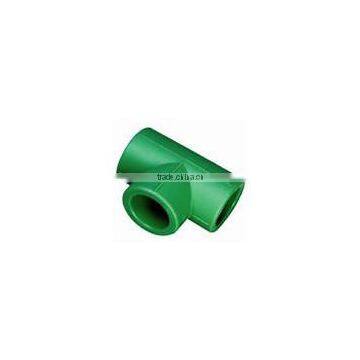

PPR Equal Tee for Pipe Connection

Specifications:

 DIN Hot Cold Water PN2.5Mpa S2.5 PPR equal Tee  :

Models and specifications For Pipes:

1 ) Cold pipe
A ) PN1.25: 25 x 2.3, 32 x 3.0, 40 x 3.7, 50 x 4.6, 63 x 5.8, 75 x 6.8, 90 x 8.2, 110 x 10, 160 x 14.6
B ) PN1.6: 20 x 2.3, 25 x 2.8, 32 x 3.6, 40 x 4.5, 50 x 5.6, 63 x 7.1, 75 x 8.4, 90 x 10.1, 110 x 12.2, 160 x 17.9
2 ) Hot pipe
A ) PN20: 20 x 2.8, 25 x 3.5, 32 x 4.4, 40 x 5.5, 50 x 6.9, 63 x 8.6, 75 x 10.1, 90 x 12.3, 110 x 15.1, 160 x 21.9
B ) PN25: 20 x 3.4, 25 x 4.2, 32 x 5.4, 40 x 6.7, 50 x 8.3, 63 x 10.5, 75 x 12.5, 90 x 15, 110 x 18.3

Specifications For Fittings:

1) Material: Good quality, New material
2) Dimensions: Dn20*1/2"mm-63*2"mm (fitting with brass)
3) Dimensions: Dn20mm-110mm (Plastic fitting)
4) According to GB/T 18742.2 which consists with DIN: 8078 / 8077
5) Colors: White, gray, green, blue

Properties:

1 ) Healthy and non-toxic, bacteriological neutral, conforming to drinking water standards
2 ) Resistant to high temperatures (110oC ), with good impact strength ( PN 1.25 - 25Mpa )
3 ) Unique and unrivaled German connection technique, convenient and reliable installation
4 ) Smooth inner walls reduce pressure loss and increase flow speed
5 ) Recyclable material
6 ) Long service life of at least 50 years

Applications:

1 ) Cold, hot water supply facilities for public buildings
2 ) Food, chemical, electronic industrial pipeline networks such as pipeline networks for transporting all kinds of corrosive liquid (such as acid, buck and deionized water)
3 ) Drinking water production system pipeline networks such as pure water and mineral water
4 ) Air conditioning facility pipeline
5 ) Compressed gas pipeline networks for industry
6 ) Pipeline network for swimming pool
7 ) Pipeline network for solar energy facility
8 ) Agriculture and garden production transporting system
