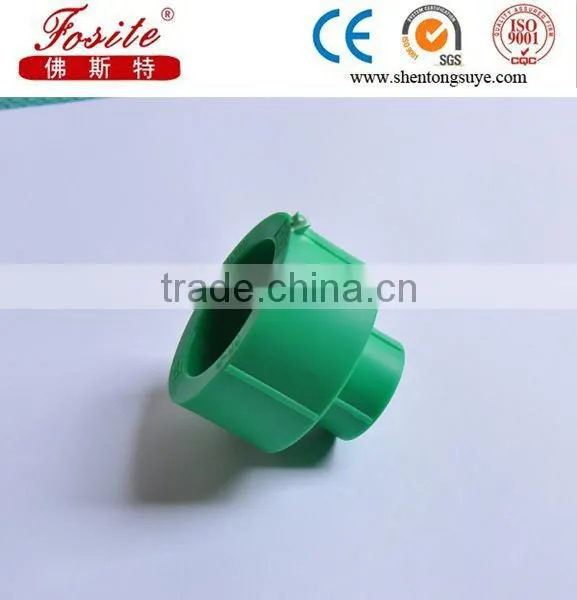

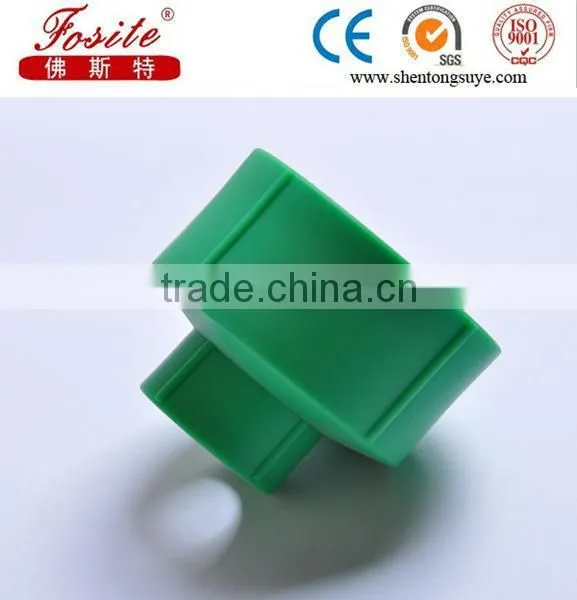

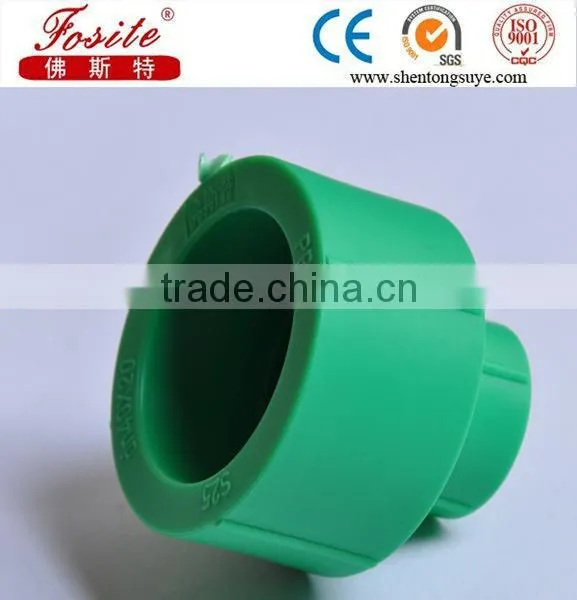

good quality green ppr reducing socket
Advantages:
High temperature resistance: the maximum sustained working temperature is up to 70 degrees, the maximum transient temperature is up to 95 degrees
Heat preservation: low thermal conductivity result in preserving heat
Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
Lower installation costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
Higher flow capacity: smooth interior walls result in low pressure loss and high volume
Long life: More than 50 years under normal conditions
Application:
Piping systems for transporting hot and cold water in dwelling house
Piping systems for transporting and discharging industrial and chemical subject
Pipeline for compressed air
Piping systems for air-conditioning
Specification of ppr pipes:
pressure |
PN 1.0mpa |
PN 1.6mpa |
PN 2.0mpa |
PN 2.5mpa |
Outer diameter dn(mm) |
Wall thickness en (mm) |
Wall thickness en (mm) |
Wall thickness en (mm) |
Wall thickness en (mm) |
20 |
2 |
2.3 |
2.8 |
3.4 |
25 |
2.3 |
2.8 |
3.5 |
4.2 |
32 |
2.9 |
3.6 |
4.4 |
5.4 |
40 |
3.7 |
4.5 |
5.5 |
6.7 |
50 |
4.6 |
5.6 |
6.9 |
8.3 |
63 |
5.8 |
7.1 |
8.6 |
10.5 |
75 |
6.8 |
8.4 |
10.1 |
12.5 |
90 |
8.2 |
10.1 |
12.3 |
15 |
110 |
10 |
12.3 |
15.1 |
18.3 |
160 |
14.6 |
17.9 |
21.9 |
26.6 |
