pp compression fittings plastic equal tee
- 20000000 Piece / Pieces per Month
- Tian Jin
- T/T
Product Details
Material: | Other, pp | Technics: | Casting | Type: | Coupling |
Place of Origin: | Hebei, China | Model Number: | ST7715 | Brand Name: | Fosite or OEM |
Connection: | Other, compression | Shape: | Reducing | Head Code: | Other, round |
Product Description

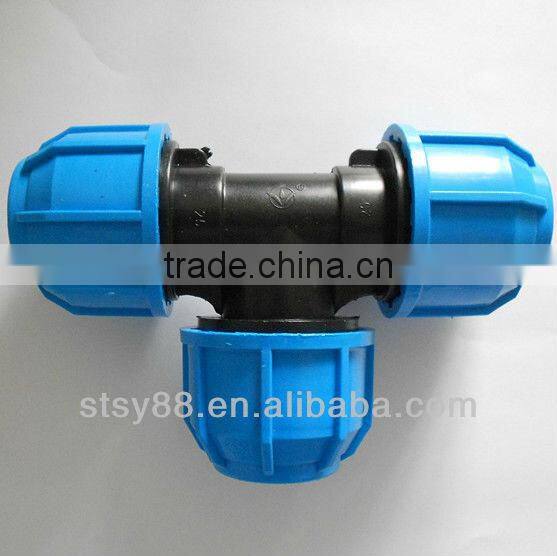

pp compression fittings plastic equal tee
Part | Material | ||
Body(A) | Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature. | ||
Blocking bush(D) | Polypropylene | ||
Nut(B) | Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004) | ||
Clinching ring(C) | Polyacetal resin(POM)with high mechanical resistance And hardness | ||
O Ring gasket(E) | Special elastomeric acrylonitrile rubber(EPDM) for alimentary use | ||
Reinforcing ring | AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4” | ||
Standard | ASTM D2466,ASTM D2665 , BS4346, NBR5648,DIN | ||
Machines | injection machines | ||
Working place | 200PSI@73° F(23°C) | ||
Warranty | at least 50 years | ||
Size | 20-110mm | ||
Pressure rate | up to 16 bar (kg/ sq. cm). |
Model NO. | diameter(mm) | Package Quantity in one CTN(pcs) | package gross weight(kg) | package net weight(kg) | PACKING SIZE(mm) |
PFI099 | 20*1/2 | 252 | 23 | 22 | 580*410*330 |
PFI100 | 25*1/2 | 168 | 20.5 | 19.5 | 580*410*330 |
PFI101 | 25*3/4 | 168 | 21.5 | 20.5 | 580*410*330 |
PFI102 | 32*3/4 | 105 | 21 | 20 | 580*410*330 |
PFI103 | 32*1 | 105 | 22.5 | 21.5 | 580*410*330 |
PFI104 | 40*1-1/4 | 40 | 24.5 | 23.5 | 580*440*350 |
PFI105 | 50*1-1/2 | 40 | 24.5 | 23.5 | 580*440*350 |
PFI106 | 63*1-1/2 | 24 | 21.5 | 20.5 | 540*530*330 |
PFI107 | 63*2 | 24 | 21.5 | 20.5 | 540*530*330 |
PFI108 | 75*2-1/2 | 12 | 29 | 28 | 670*370*450 |
PFI109 | 90*3 | 12 | 29 | 28 | 670*370*450 |
PFI110 | 110*4 | 8 | 24.5 | 23.5 | 580*440*350 |
FEATURE OF PRODUCT
1.)Fast and reliable connections,extensively used worldwide
2.)Easy to installation
3.)One source for all your IPS,CTS and Metric needs.
4.)Color coded,UV stabilized
5.)Extensively used worldwide,ISO9001certified.
Scope of application
Water distribution,Industrial,Leachate Collection,Irrigation and many other uses.
Brief Description:

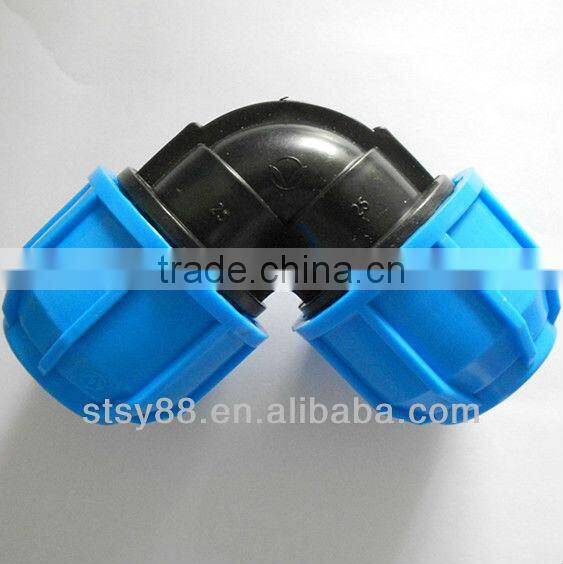

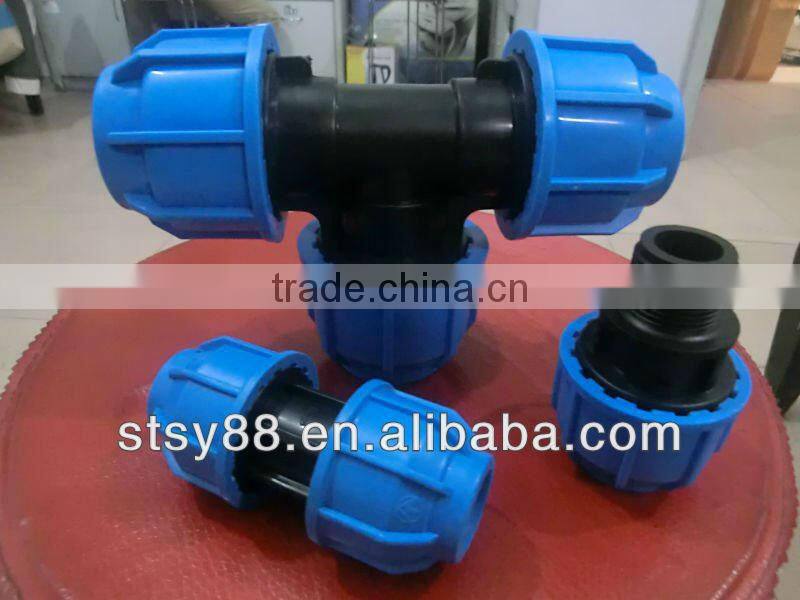

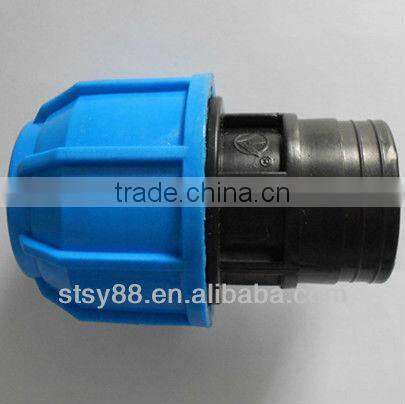

We manuacture a wide range of plastic compression fittings from 20 mm to 63mm. The compression fittings are used in water and irrigation systems for connection polyethylene tubes. We test these fittings on various quality parameters to ensure a flawless range. The compression fittings contain various types such as: Coupling, Reducing Coupling, Adaptor, Tee, Reducing Tee, Elbow, End Cap, and so on.
Model:
PF051 Φ20mm *1/2" Male Adaptor
PF052 Φ25mm *1/2" Male Adaptor
PF053 Φ25mm *3/4" Male Adaptor
PF054 Φ25mm *1" Male Adaptor
PF055 Φ32mm *1/2" Male Adaptor
PF056 Φ32mm *3/4" Male Adaptor
PF057 Φ32mm *1" Male Adaptor
PF058 Φ40mm *1" Male Adaptor
PF059 Φ40mm *1.25" Male Adaptor
PF060 Φ40mm *1.5" Male Adaptor
PF061 Φ40mm *2" Male Adaptor
PF062 Φ50mm *1" Male Adaptor
PF063 Φ40mm *1.5" Male Adaptor
PF064 Φ50mm *1.5" Male Adaptor
PF065 Φ50mm *2" Male Adaptor
PF066 Φ63mm *1.25" Male Adaptor
PF067 Φ63mm *1.5" Male Adaptor
PF068 Φ63mm *2" Male Adaptor
Features and Specifications:
- Size Range: from 20 mm to 63 mm.
- Pressure Rating: up to 16 bar (kg/ sq. cm).
- Color: Complete Black or Black Body with Blue Cap.
- High Quality with Maximum UV Protection.
- Working life: 20 Years for Water Application.
- ISO 9001 standard.
- Detachable.
- No special tools required for installation
