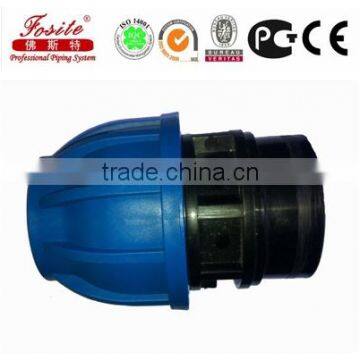

Pn10&Pn16 PE irrigation fittings
|
Name |
PN16 irrigation pp fitting, PP compression fitting |
|
Body(A) |
Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature. |
||
Blocking bush(D) |
Polypropylene |
||
Nut(B) |
Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004) |
||
Clinching ring(C) |
Polyacetal resin(POM)with high mechanical resistance And hardness |
||
O Ring gasket(E) |
Special elastomeric acrylonitrile rubber(EPDM) for alimentary use |
||
Reinforcing ring |
AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4” |
||
Standard |
ASTM D2466,ASTM D2665 , BS4346, NBR5648,DIN |
||
Machines |
injection machines |
||
Working place |
200PSI@73° F(23°C) |
||
Warranty |
at least 50 years |
||
Size |
20-110mm |
||
Pressure rate |
up to 16 bar (kg/ sq. cm). |
||
| Model NO. | diameter(mm) | Package Quantity in one CTN(pcs) | package gross weight(kg) | package net weight(kg) | PACKING SIZE(mm) |
| PFI099 | 20*1/2 | 252 | 23 | 22 | 580*410*330 |
| PFI100 | 25*1/2 | 168 | 20.5 | 19.5 | 580*410*330 |
| PFI101 | 25*3/4 | 168 | 21.5 | 20.5 | 580*410*330 |
| PFI102 | 32*3/4 | 105 | 21 | 20 | 580*410*330 |
| PFI103 | 32*1 | 105 | 22.5 | 21.5 | 580*410*330 |
| PFI104 | 40*1-1/4 | 40 | 24.5 | 23.5 | 580*440*350 |
| PFI105 | 50*1-1/2 | 40 | 24.5 | 23.5 | 580*440*350 |
| PFI106 | 63*1-1/2 | 24 | 21.5 | 20.5 | 540*530*330 |
| PFI107 | 63*2 | 24 | 21.5 | 20.5 | 540*530*330 |
| PFI108 | 75*2-1/2 | 12 | 29 | 28 | 670*370*450 |
| PFI109 | 90*3 | 12 | 29 | 28 | 670*370*450 |
| PFI110 | 110*4 | 8 | 24.5 | 23.5 | 580*440*350 |
FEATURE OF PRODUCT
1.)Fast and reliable connections,extensively used worldwide
2.)Easy to installation
3.)One source for all your IPS,CTS and Metric needs.
4.)Color coded,UV stabilized
5.)Extensively used worldwide,ISO9001certified.
Scope of application
Water distribution,Industrial,Leachate Collection,Irrigation and many other uses.
PVC Valve for irrigation
