SDR 11 PN 16 Hdpe Butt Fusion

SDR 11 PN 16 Hdpe Butt Fusion thumbnail-1
SDR 11 PN 16 Hdpe Butt Fusion thumbnail-2
SDR 11 PN 16 Hdpe Butt Fusion thumbnail-3
SDR 11 PN 16 Hdpe Butt Fusion thumbnail-4
SDR 11 PN 16 Hdpe Butt Fusion thumbnail-5
SDR 11 PN 16 Hdpe Butt Fusion photo-1
SDR 11 PN 16 Hdpe Butt Fusion photo-2
SDR 11 PN 16 Hdpe Butt Fusion photo-3
SDR 11 PN 16 Hdpe Butt Fusion photo-4
SDR 11 PN 16 Hdpe Butt Fusion photo-5
US$ 0.4 - 11 MOQ: 3000 Meters
Key Specifications
Get Latest Price
Type:
Air Source Heat Pump
Installation:
Freestanding
Storage / Tankless:
Instant / Tankless
Contact Supplier Request Quote Chat Now
Shijiazhuang Shentong Plastic Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Air Source Heat Pump
Installation Freestanding
Storage / Tankless Instant / Tankless
Housing Material Other, hdpe
Use Swimming Pool Heater
Certification CE
Place of Origin Hebei, China
Brand Name fosite, fosite
Model Number PE80 or PE100, PE80 or PE100
Product Description

 Specification :

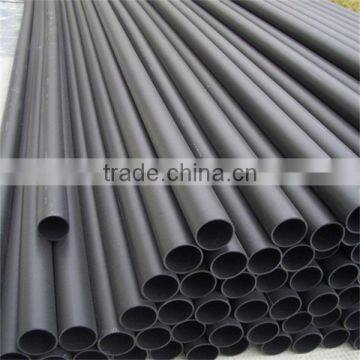

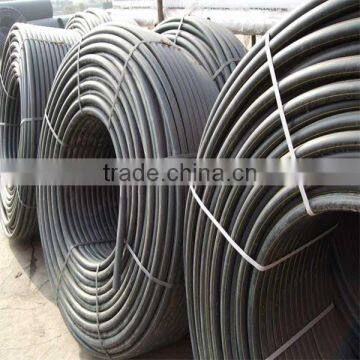

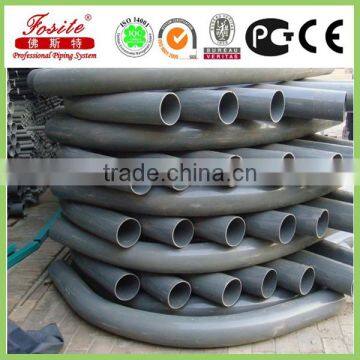

HDPE Ground Source Heat Pump Special Pipe
product  Specification
   (mm)		 Amount of packing
 (m/bag)
SDR 11 PN 16 hdpe butt fusion 25*2.3 150
2.5*2.8  150



Ground source heat pump pipe

Geothermal heat pipe



Dedails:

specification:32-1000mm

material: high density polyethylene

length: 100m/coil or as request

color: black with blue line or as request

pressure grade: 0.6-1.6Mpa

wall thickness: SDR11

connection: socket fusion, butt fusion, electro-fusion

application: air-condition system,etc.

standard: ISO9001,ISO14001,GB/T13663-2000, GB/T13663.2-2005, BV certificate

packing: standard export packing

delievery time: 15-30 days


Geothermal pipe transfers heat from the ground into a building to provide space heating and to pre-heat domestic hot water.
Geothermal exchange is a clean energy method of heating and cooling commercial and residential buildings. The technology is proven and has been in use for decades. In simplest terms, PE pipe is buried in the ground, allowing energy transfer between the fluid in the pipe and the earth. The fluid in the piping is warmed in the winter and cooled in the summer. The system consists of buried PE pipe, a heat pump, and air distribution system.

Product features:
1, Tubing chemical performance is stable, corrosion resistance, offset the insufficiency of metal pipes in this aspect.
2, Easy to bend or hot melt to be a more solid shape, and has good compression ability connect with pipes, not easy to leak.
3 save investment - the initial investment is large, but low operating cost, the investment capital could be recovered in short term. .
4, Underground heat exchange tube use high-density polyethylene pipe. Service life for 50 years.
5, Environmental protection and energy saving: the use of electricity, no combustion process, as to the surrounding environment, taintless discharge; Need not use cooling towers, have no outside hang, do not discharge heat to the surrounding environment,
No thermal conductivity effect, no noise; Do not extract groundwater, without destroying the groundwater resources; Operating cost only 40 ~ 60%for the traditional central air conditioning.
6, A tractor serves 3 purposes: heating in the winter, refrigerating in the summer and providing water annual year. It is 2-4 times as to spilt-type and window air-conditioner. Controlled by computer, and stable performance,
It can be controlled by phone, going to temperature and humidity control and fresh air distribution.

Advantages:
1. Lower energy costs and environment impact - a geothermal system uses 25-50% less electricity than conventional forced air heating or cooling systems. This means the less energy needed from burning fossil fuels that are harmful to the environment.
2.Free or Cheap Hot Water - unlike any other heating and cooling system, a geothermal heat pump can provide free hot water using a device called a "desuperheater".
3. Year-Round Comfort - maintains an even temperature and humidity level throughout your home with very little noise.
4. Design Flexibility - geothermal heat pump systems allow for design flexibility and can be installed in both new and retrofit situations.
5. Improved Aesthetics - geothermal systems are easy to conceal, don't require cooling towers, eliminate conventional rooftop equipment, less potential for leaks and ongoing maintenance, better roof warranties, allowing architects and building owners to plan for more aesthetically pleasing architectural designs and roof lines.
6. Low Maintenance - since workhorse part of the system - the piping - is underground or underwater, there is little maintenance required.
7.Zone Heating and Cooling - different areas of the building can be heated or cooled to different temperatures simultaneously, i.e., the heat from computer rooms can be moved to the perimeter walls for winter heating in commercial buildings.
8. Durability - with virtually no moving parts, and parts that are sheltered inside a building, a geothermal heating system is durable and highly reliable. Our piping has a life span expectancy of up to 50 years or more.


4.Technical data:

No

Items

Plastic pipes

1

Molecular

≥300 000

2

Density

0.960 g/cm3

3

Tensile breaking strength

≥28 Mpa

4

Longitudinal contraction rate of return

≤3%

5

Breaking elongation,

≥500%

6

Resistant to corrosion

good

7

Tensile strength

≥28Mpa

8



Static hydraulic strength

1)20°C,cycle

stress12.4Mpa,100h,no break,no leakage





2)80°C,cycle

stress5.5Mpa,165h,no break,no leakage





3)80°C,cycle stress5.0Mpa,1000h,no break,no leakage

9

MFR(190°C,5kg,)g/10min

≤25%

10

Oxidation induction time (200°C)min

≥20





SDR 11 PN 16 hdpe butt fusion



 Our Main Market :



Domestic Market, Africa, Northern Europe, Mid East, Eastern Europe, Western Europe
North America, South Asia, Southern Europe, South America, Central America, Oceania
Eastern Asia,  Southeast Asia, we sale it a large quality every month .







Packaging & Shipping

 SDR 11 PN 16 hdpe butt fusion



Our Certificate :



SDR 11 PN 16 hdpe butt fusion



Company Information

  Shijiazhuang Shentong Plastic Industry Co.Ltd was established in 2003, which is a enterprise concentrating manufacturing and sales. Specialized in new plastic piping. The leading products are Fosite Brand PP-R,PP,PE,UPVC,PE-RT,PEX pipe & fittings and plastic tubing welding equipment. Has a national advanced automated manufacturing equipment and complete product specifications. Following the quality policy of ''pursuit of excellence, render a service'',
Shentong has passed ISO9001,ISO.
