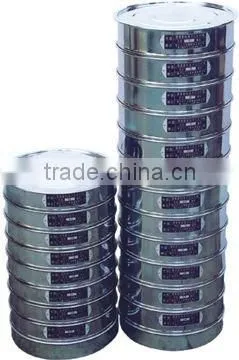

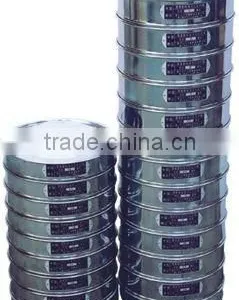

Test SievesBrass frame and wire, dia 8" with diferent mesh No,
Test Sieves ( Stainless Steel Sieves )
Application:
The Sieves is used to test the particle weight in different grain size in the soils and its making up percentage of total weight of dry soil (sand).
Specifications:
1. Sieve frame : brass construction with top cover and bottom pan
2. Sieve mesh material : stainless steel and brass
3. Weight:
Model |
Application |
Sieves opening (mm) |
Frame |
FB-2 |
Soil analysis sieve |
0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5 |
Ø 200 x 50mm |
FB-3 |
Sand analysis sieve |
9.50,4.75,2.36,1.18,600um,300um,150um |
Ø 300 x 75mm |
FB-4 |
Stone analysis sieve |
2.36,4.75,9.50,16.0,19.0,26.5,31.5,37.5,53.0,63.0,75.0,90.0 |
Ø 300 x 75mm |
FB-5 |
Asphalt analysis sieve |
0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5; 13.2; 16; 19; 26.5; 31.5; 37.5; 53 |
Ø 300 x 75mm |
FB-6 |
Wash sieves |
dia 120mm, 0.75mm |
|
FB-7 |
Cement Sieves |
|
|
