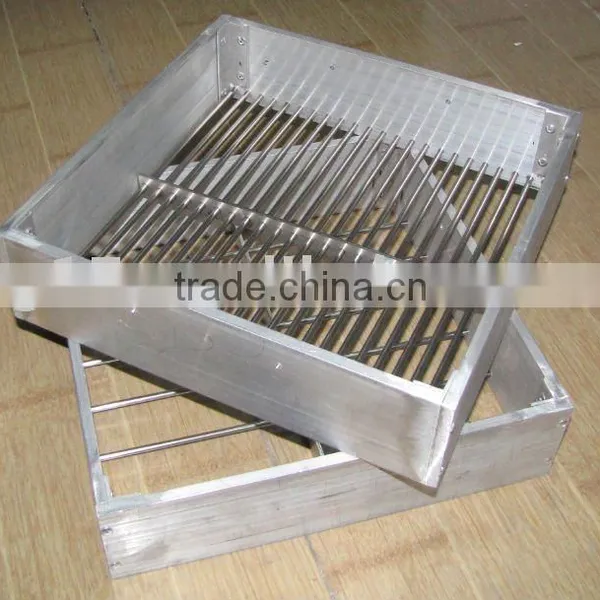

Grid Sieves for Aggregate

Grid Sieves for Aggregate thumbnail-1
Grid Sieves for Aggregate photo-1
US$ 50 - 60 MOQ: 15 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SHTG
Model Number:
Grid Sieves
Contact Supplier Request Quote Chat Now
Shanghai Civil & Road Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SHTG
Model Number Grid Sieves
Power Other, Mechanical
Usage Other, Aggregate Particle Sieve Analysis

Specifications

Grid Sieves
Brass frame and wire, dia 8" with diferent mesh No,

  Grid Sieves

 Standard: Confirming to EN933-3:1997



Application:Size : 300×300mm, Grid with 5mm diameter are fixed on metal frame Made from stainless steel , light structure, solid and corrosion-resistant , Long life . oPtiona Sizes: Item No     Grid width    Dia of material    Net weight
Grid-2.5       2.5            5mm-4mm             3.2kgGrid-3.15     3.15           6.3mm-5mm          3.1kgGrid-4          4               8mm-6.3mm          2.9kgGrid-5          5              10mm-8mm            2.8kgGrid-6.3       6.3           12.5 mm-10mm       2.6kgGrid-8          8              16mm-12.5mm        2.5kgGrid-10        10             20mm-16mm          2.3kgGrid-12.5     12.5          25mm-20mm          2.2kgGrid-16        16            31.5mm-25mm        2.1kgGrid-20        20            40mm-31.5mm        2kgGrid-25        25            50mm-40mm          1.9kgGrid-31.5     31.5mm     63mm-50mm         1.8kgGrid-40       40mm         80mm-63mm         1.7kg   Grid sieves for aggregate

Model

Application

Sieves opening (mm)

Frame

FB-2

Soil analysis sieve

0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5

Ø 200 x 50mm

FB-3

Sand analysis sieve

9.50,4.75,2.36,1.18,600um,300um,150um

Ø 300 x 75mm

FB-4

Stone analysis sieve

2.36,4.75,9.50,16.0,19.0,26.5,31.5,37.5,53.0,63.0,75.0,90.0

Ø 300 x 75mm

 FB-5

Asphalt analysis sieve

0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5; 13.2; 16; 19; 26.5; 31.5; 37.5; 53

Ø 300 x 75mm

 FB-6

Wash sieves

dia 120mm, 0.75mm



FB-7

Cement Sieves
