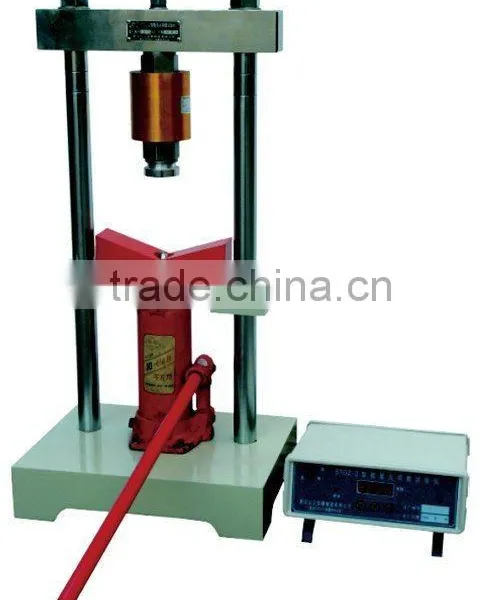

Point Load Tester

Point Load Tester thumbnail-1
Point Load Tester photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SHTG
Model Number:
STDZ-2
Contact Supplier Request Quote Chat Now
Shanghai Civil & Road Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SHTG
Model Number STDZ-2
Power Hydraulic
Usage Other, Digital Point Load tester

Specifications

Point Load tester
1.Portable instrument
2.Max work pressure: 60Mpa

Point Load tester



Application:

Portable instrument which can be used in both the laboratory or in situ to determine the rock strength index of rock samples or cores. The values required for the calculation of the rock strength index are failure load and distance between the conical points



Specifications:

1. Max. work pressure: 60Mpa

2. Piston diameter:dia.35mm, stroke:160mm

3. Piston area:9.62 cm2

4. Capacity:100KN

5. Resolution: 0.1KN

6. Peak value memorized
